Home >> Chevrolet >> 1987 >> Spectrum Base, 2D Hatchback, Standard >> Repair and Diagnosis >> Maintenance >> Procedures >> Maintenance Information >> Fuses & Circuit Breakers >> Fuse Panel Identification (1985-86) >> Notes

Fuse Panel Identification (1985-86): Notes

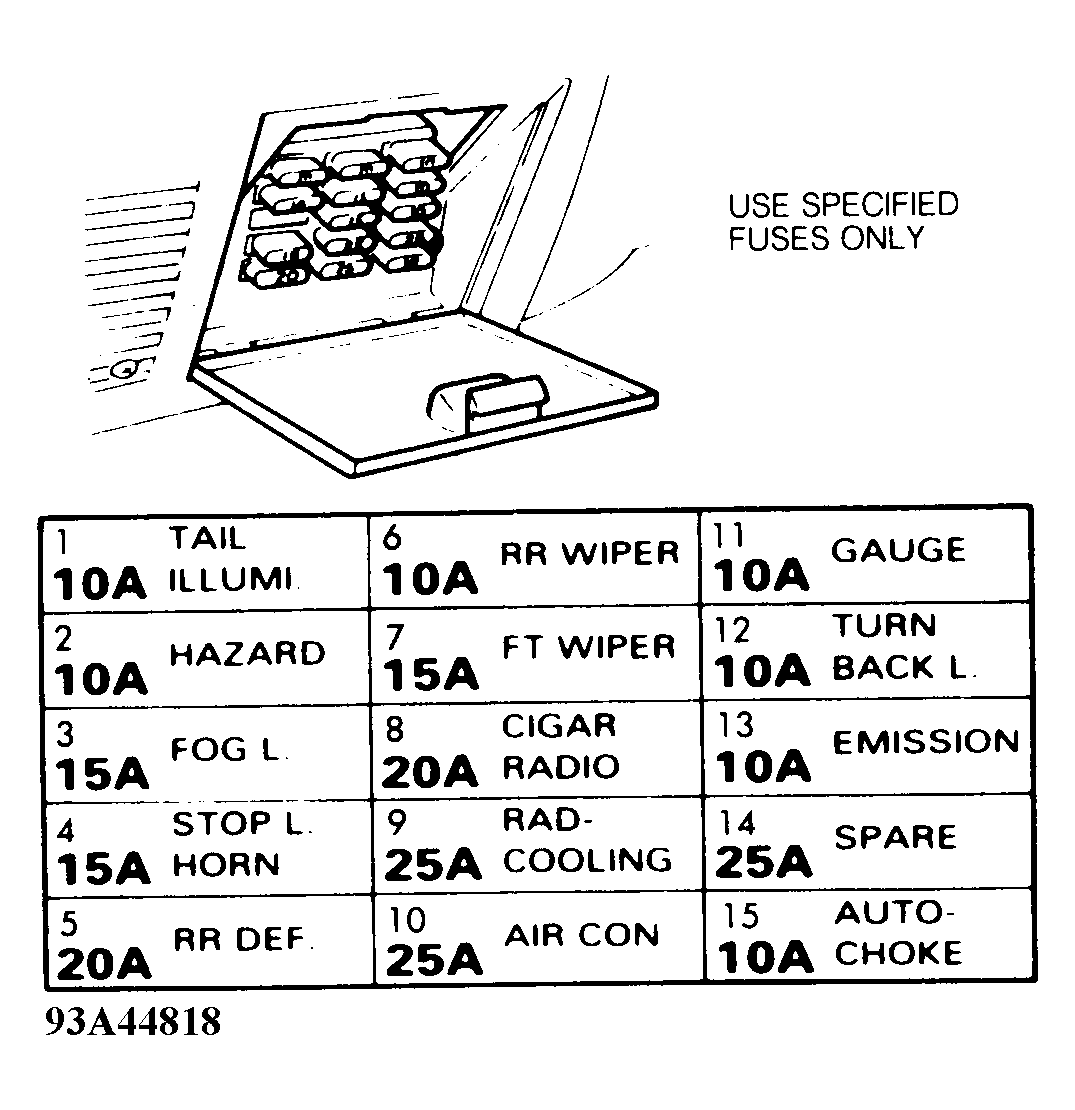

Fig 1: Fuse Panel Identification (1985-86)

G93A44818

Courtesy of GENERAL MOTORS CORP.
