Fuse Panel Identification (1983): Notes

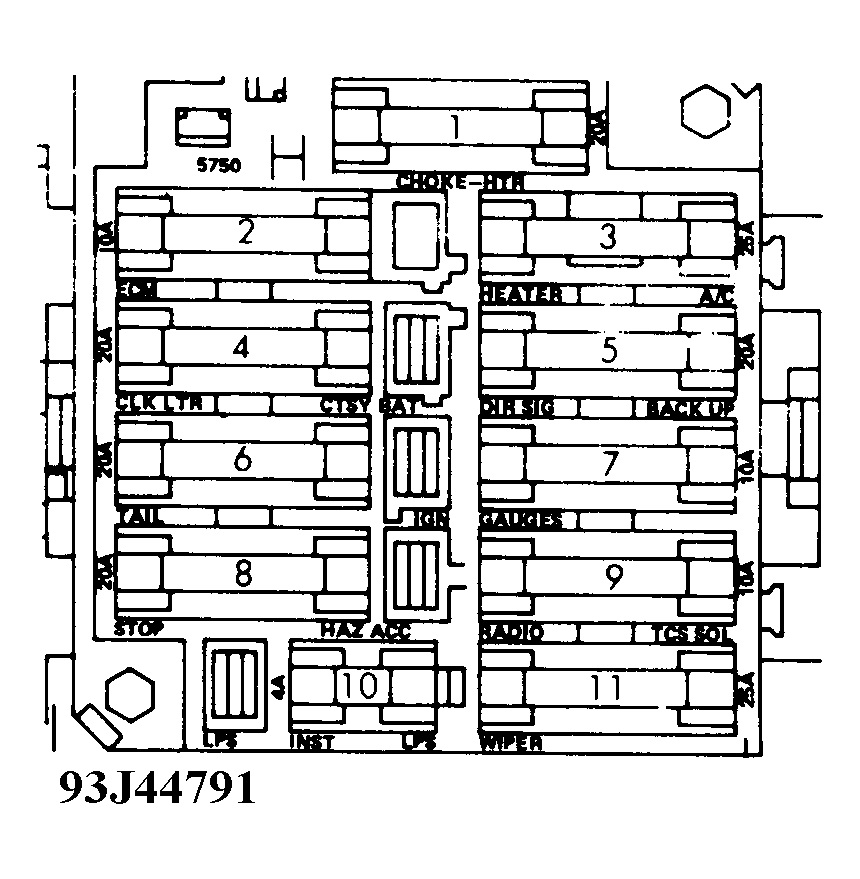

Fig 1: Fuse Panel Identification (1983 Chevette & T-1000)

G93J44791

Courtesy of GENERAL MOTORS CORP.
