EXPERTEC TSB (86-46)

Publication date: 1986-02-14
Reference number: 86-46

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 86-46, Date of Issue: 02/14/86

02/14/1986

Chevrolet 86-46

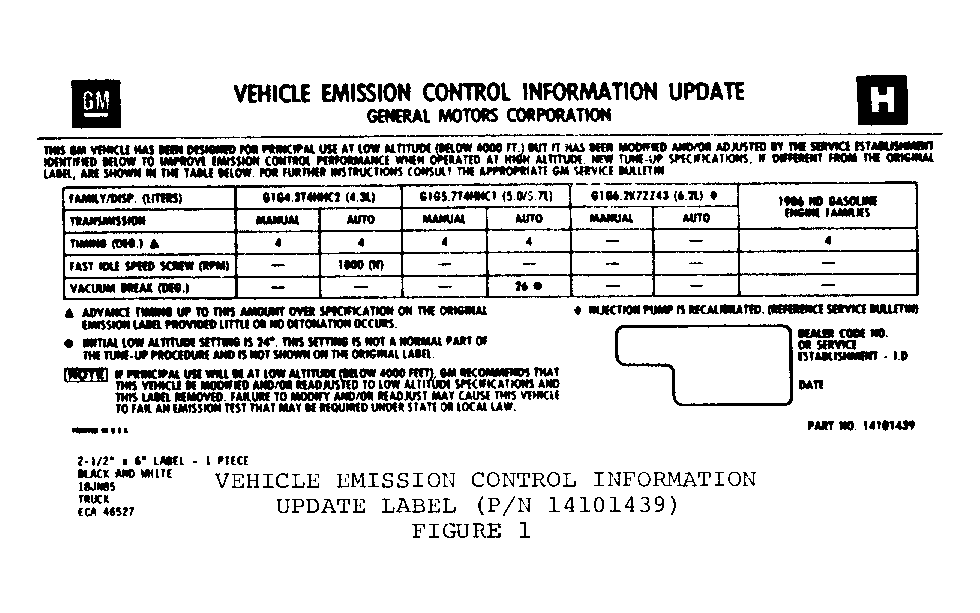

Fig 1: Graphic

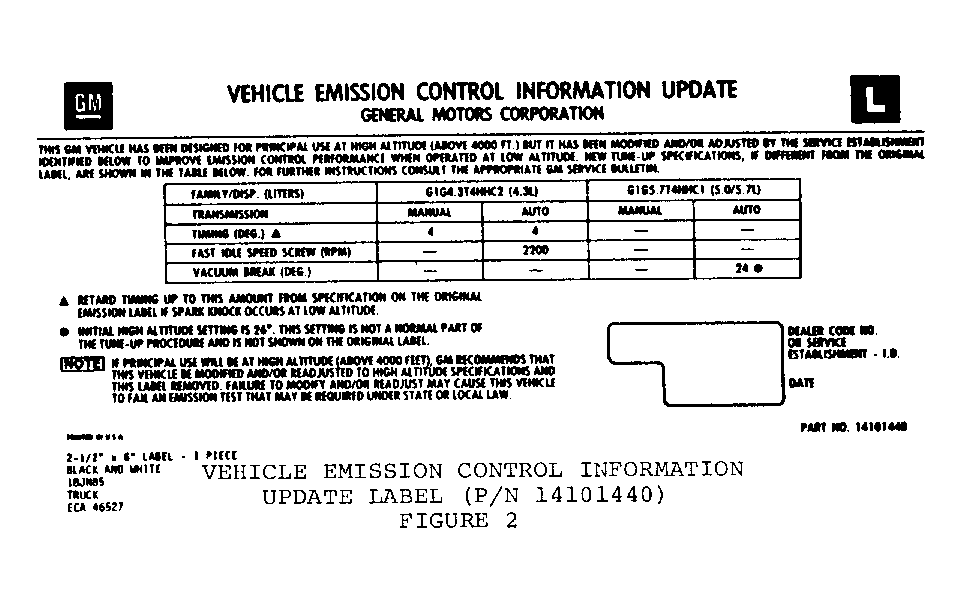

Fig 2: Graphic

ALTITUDE ADJUSTMENTS FOR ENGINE PERFORMANCE

Model and Year: 1986 C,K,G,P - 10-30 FEDERAL EMISSION TRUCKS EXCEPT H.D.

DIESEL

TO: ALL CHEVROLET DEALERS

Fig 3: Service Information (1 Of 7)

Fig 4: Service Information (2 Of 7)

Fig 5: Service Information (3 Of 7)

Fig 6: Service Information (4 Of 7)

Fig 7: Service Information (5 Of 7)

Fig 8: Service Information (6 Of 7)

Fig 9: Service Information (7 Of 7)
