Chart C10 - A/C Clutch Control

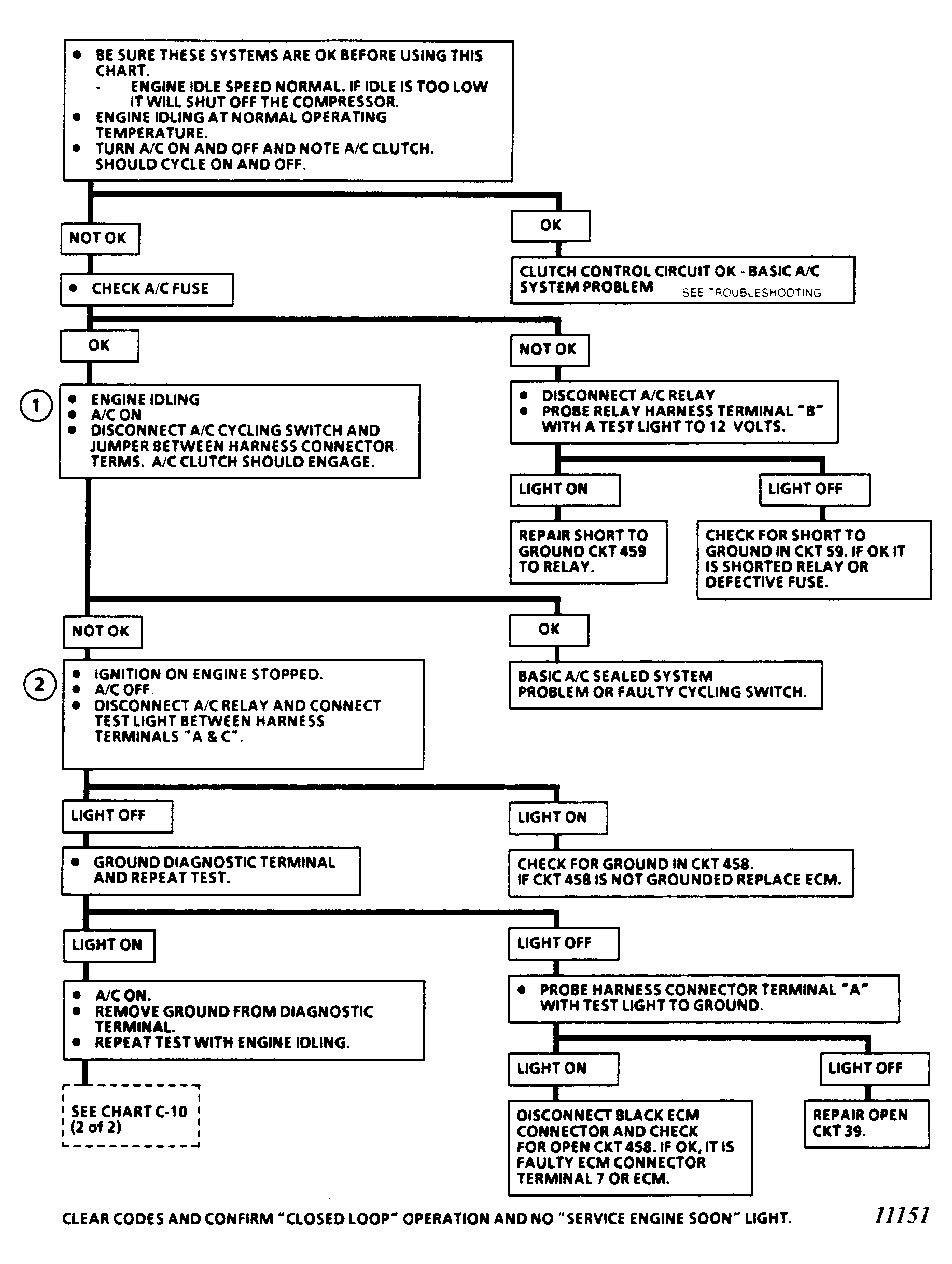

Fig 1: Chart C10, Fuel Injection (TBI) A/C Clutch Control (1 Of 2)
G11151

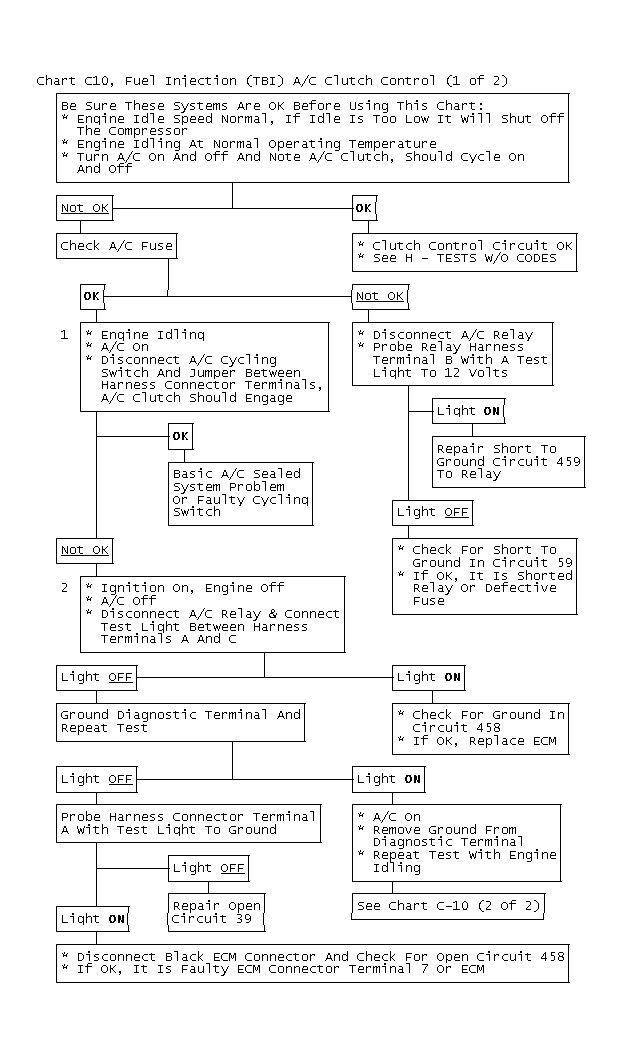

Fig 2: Chart C10, Fuel Injection (TBI) A/C Clutch Control (1 Of 2)
GB0048315

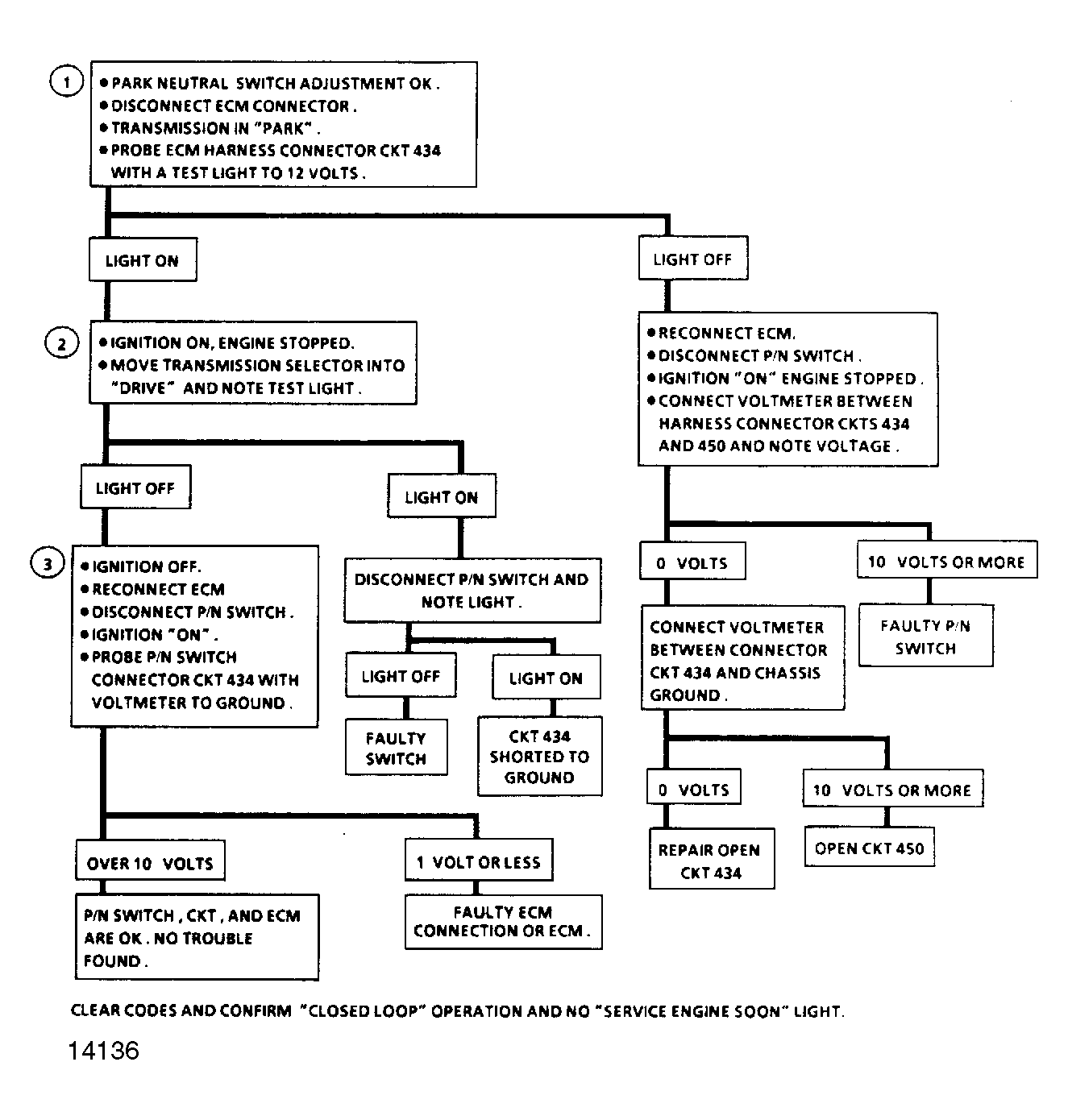

Fig 3: Chart C10, Fuel Injection (TBI) A/C Clutch Control (2 Of 2)
G14136

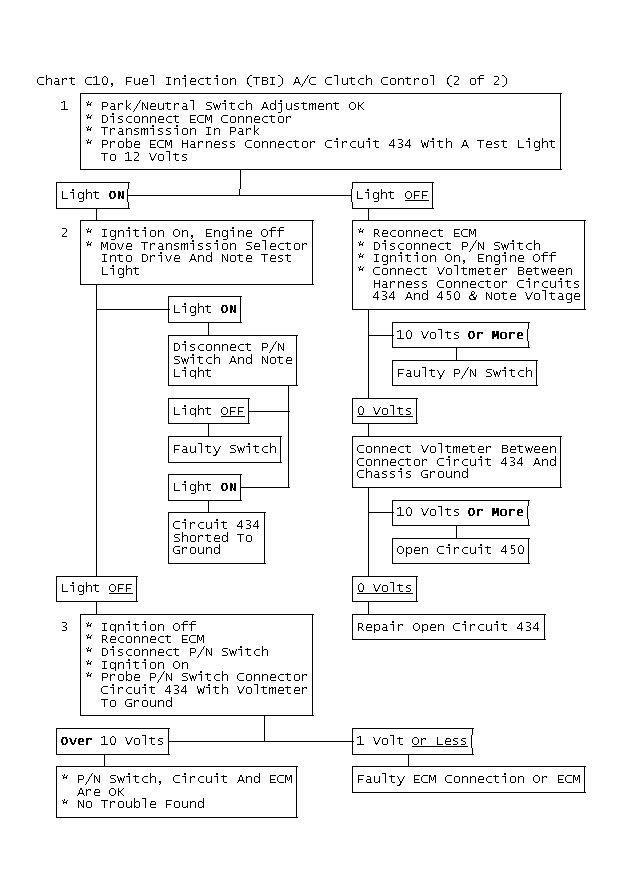

Fig 4: Chart C10, Fuel Injection (TBI) A/C Clutch Control (2 Of 2)
GB0048316
