Chart C5 - Electronic Spark Control (ESC) System Check

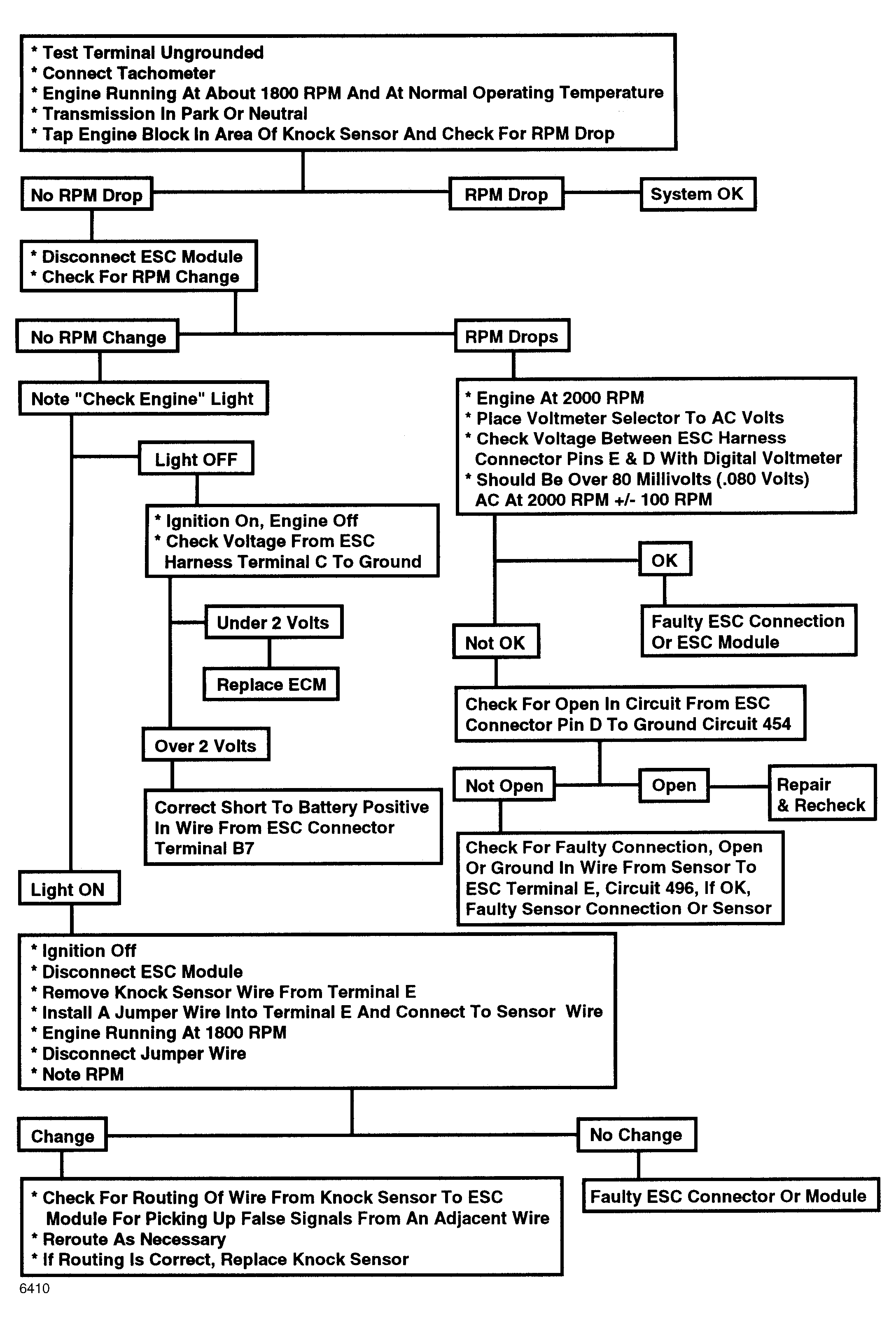

Fig 1: Flow Chart C5, Electronic Spark Control (ESC) System Check

G6410

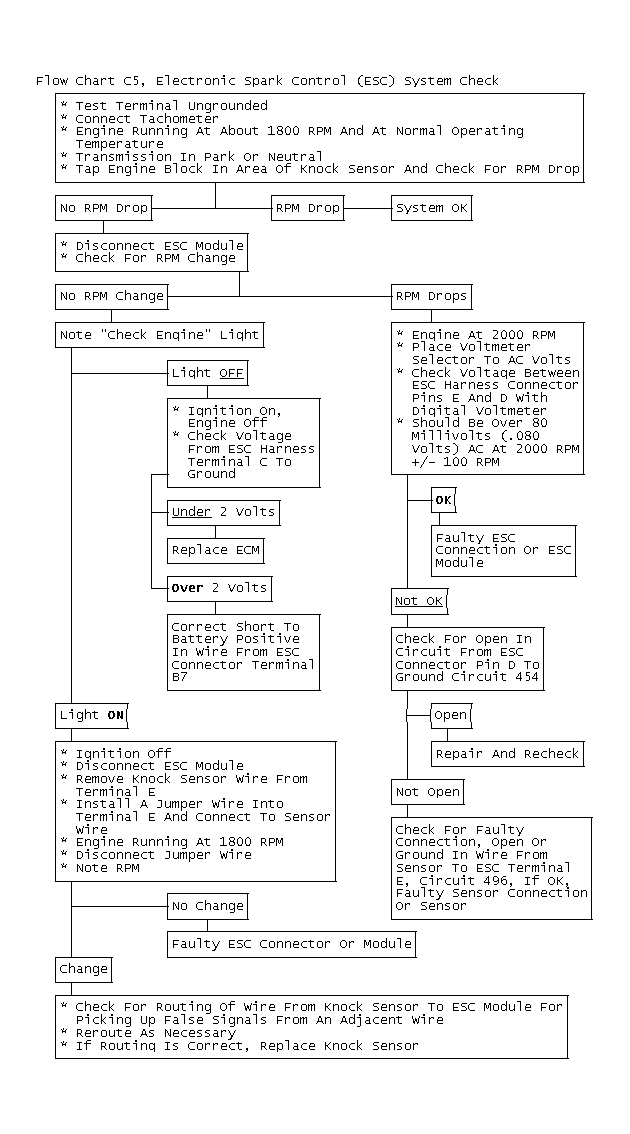

Fig 2: Flow Chart C5, Electronic Spark Control (ESC) System Check

GB0046033
