Chart C1E - Power Steering Pressure Switch (PSPS)

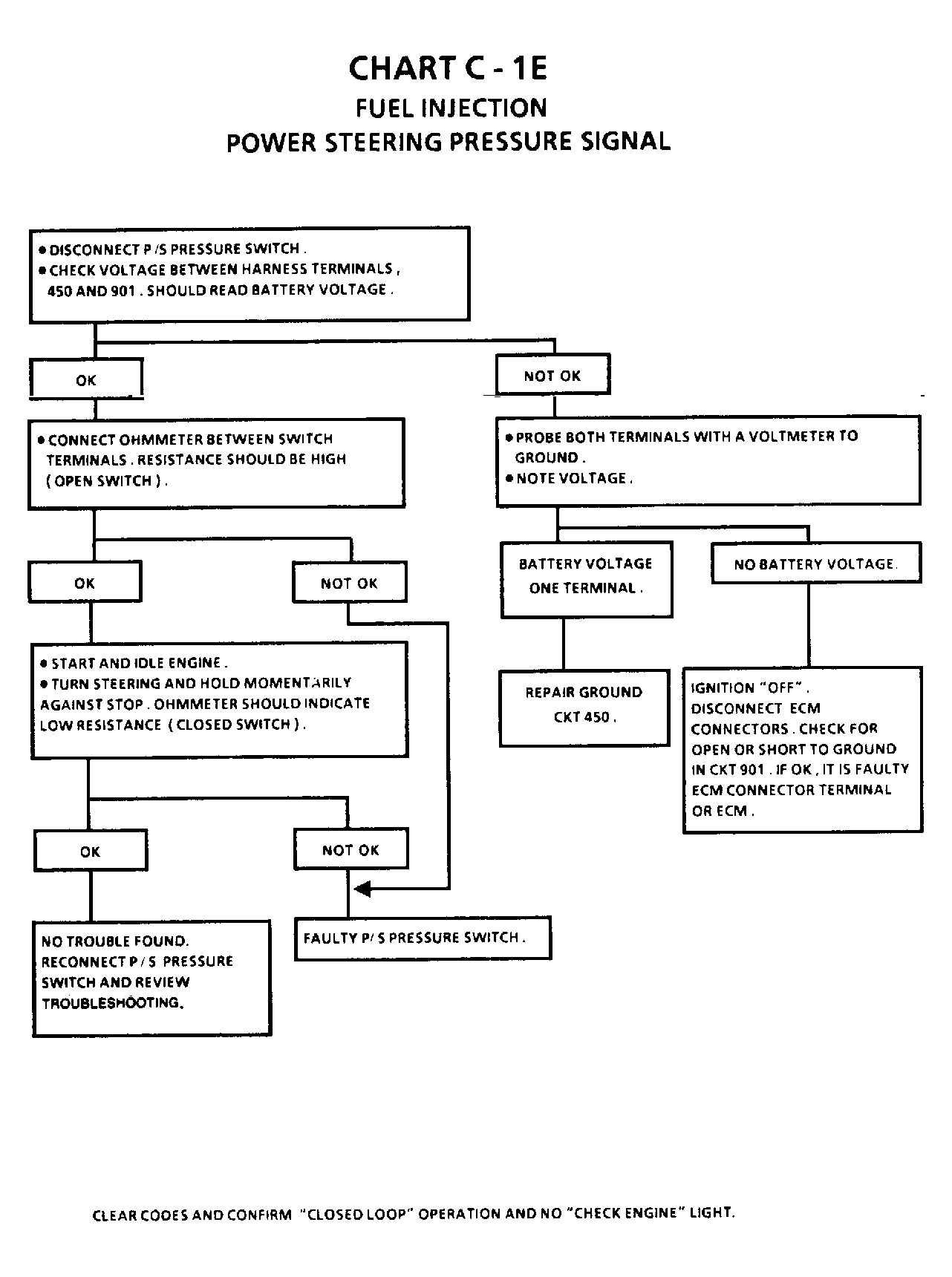

Fig 1: Chart C1E, (2.8L) - Power Steering Pressure Switch

G3041
