Chart C1D - Map Output Check

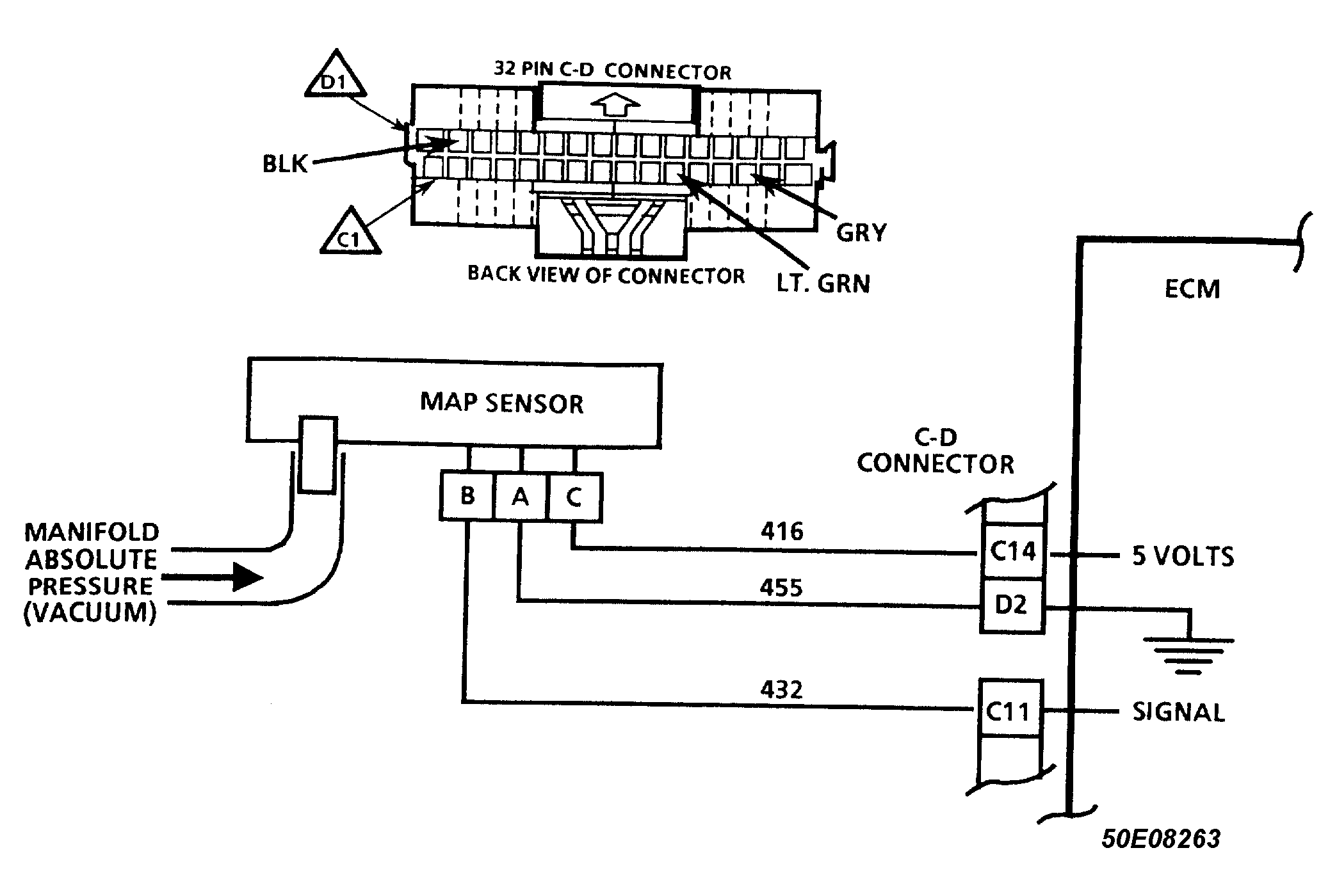

Fig 1: Chart C1D Schematic, MAP Output Check

G50E08263

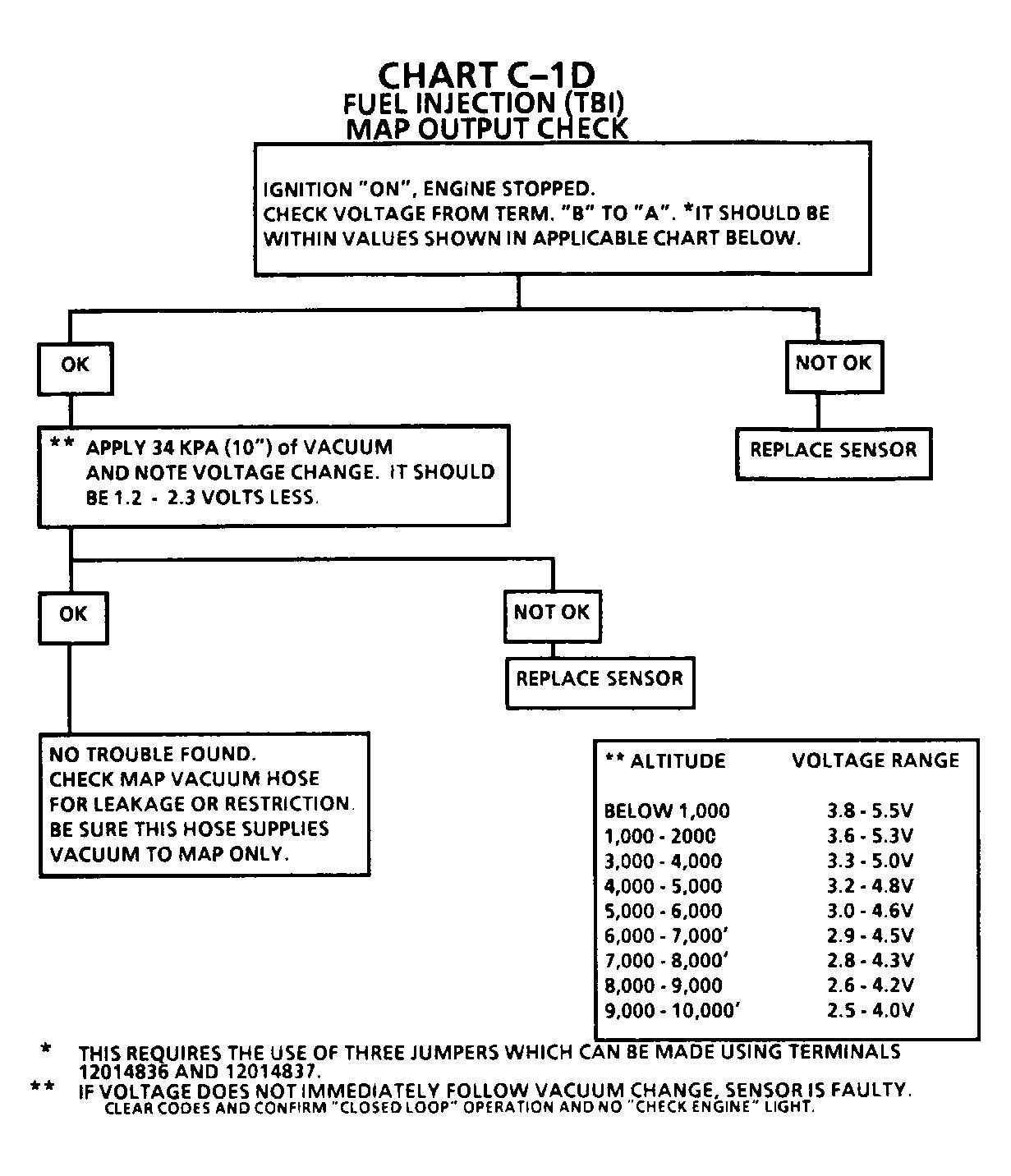

Fig 2: Flow Chart C1D, MAP Output Check

G6452

Fig 3: Flow Chart C1D, MAP Output Check

GB0046061
