Chart C1D - Map & BARO Output Check
Chart C1D - Map & BARO Output Check

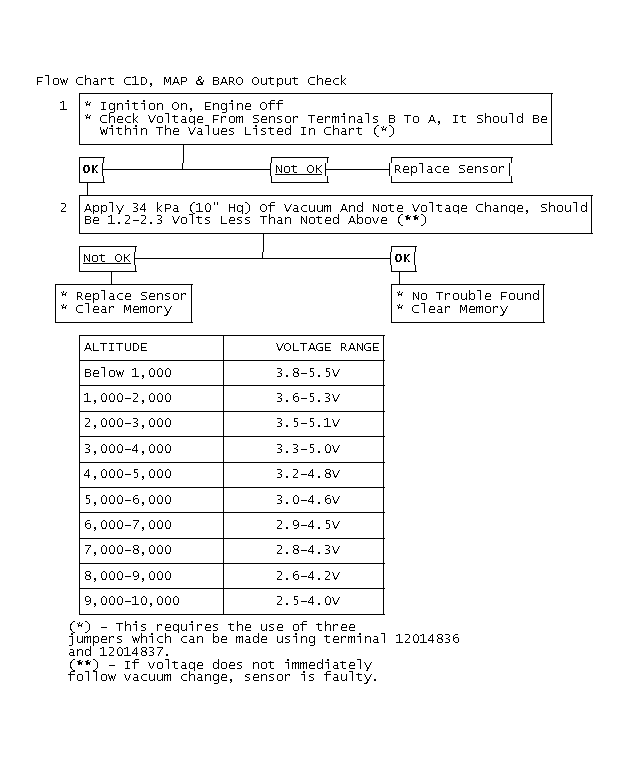

Fig 1: Flow Chart C1D, MAP & BARO Output Check
Fig 2: Flow Chart C1D, MAP & BARO Output Check
