Feedback Carburetor Tests W/Codes: Wiring Diagram

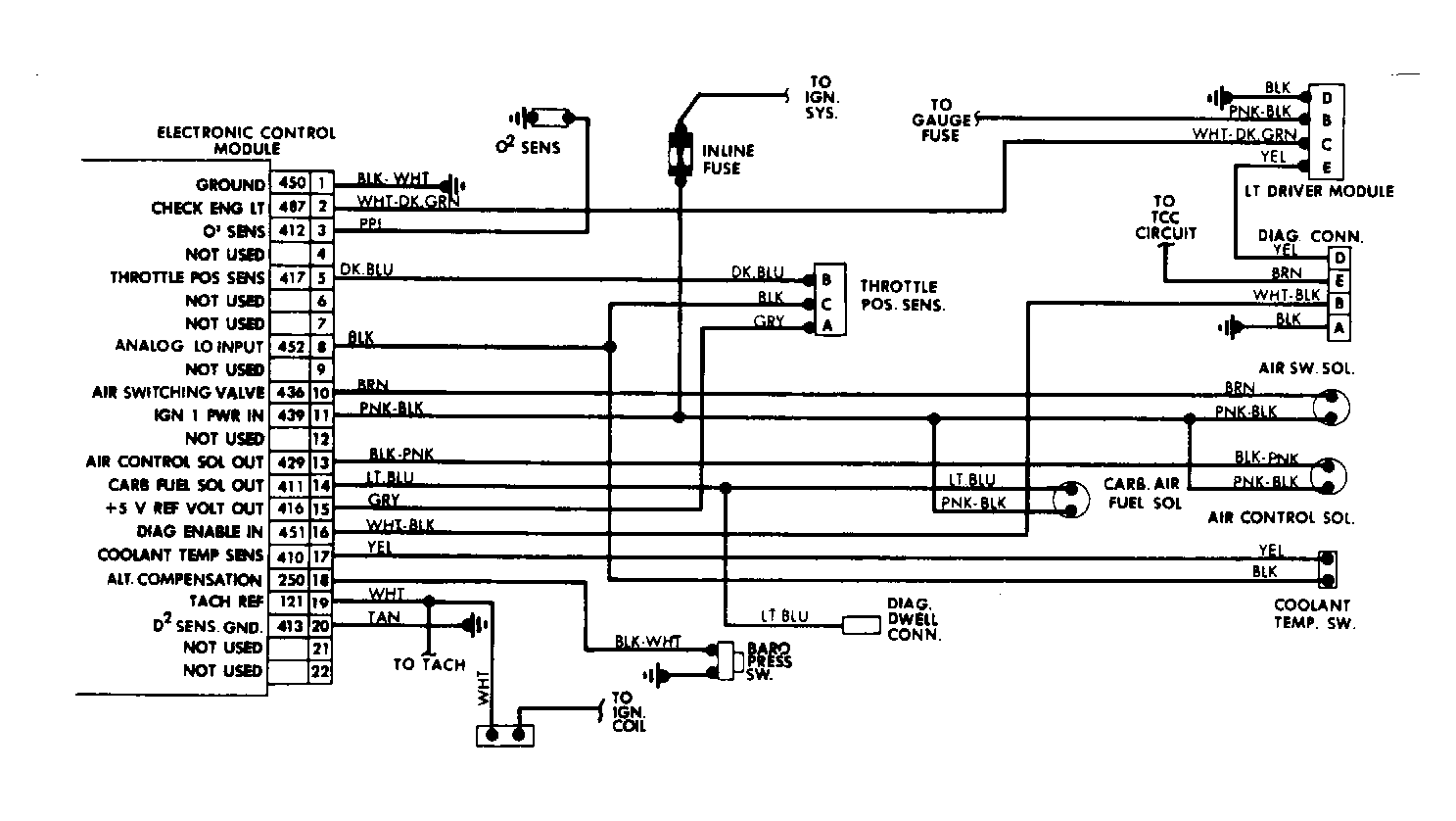

Fig 1: Minimum Function CCC System Wiring Diagram

G9296
