Chart C-7C: EGR Valve Check (Non ECM Controlled)

Fig 1: Chart C-7C, EGR Valve Check (Non ECM Controlled) Flow Chart

G6367

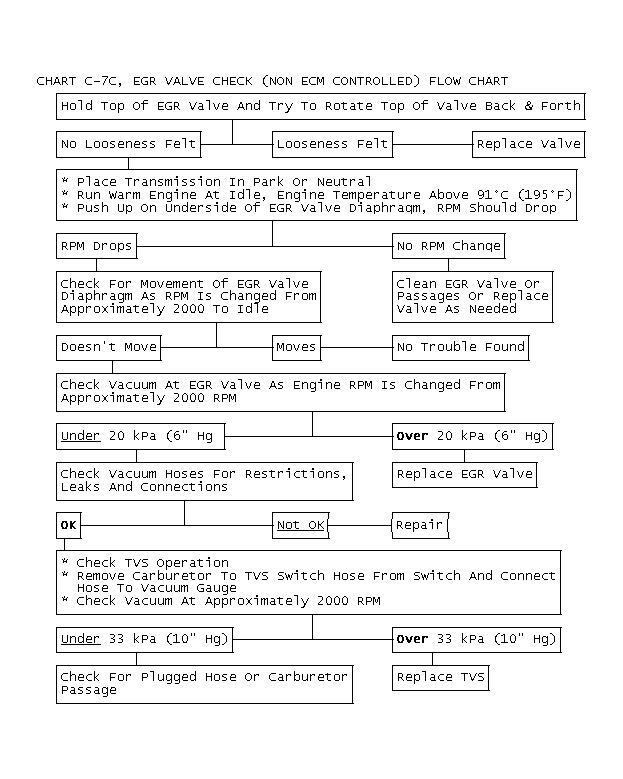

Fig 2: Chart C-7C, EGR Valve Check (Non Ecm Controlled) Flow Chart

GB0045868
