Check Engine Light On & Code 24 Stored

This condition may be caused by an inoperative VSS due to broken VSS wires.

To repair, remove the lower left side instrument panel. Remove the tie-wrap around the VSS buffer wire harness-to-main wire harness. Replace or repair any damaged wires. After repair, tie or tape the VSS buffer wire harness at the buffer connector. See Fig 1 .

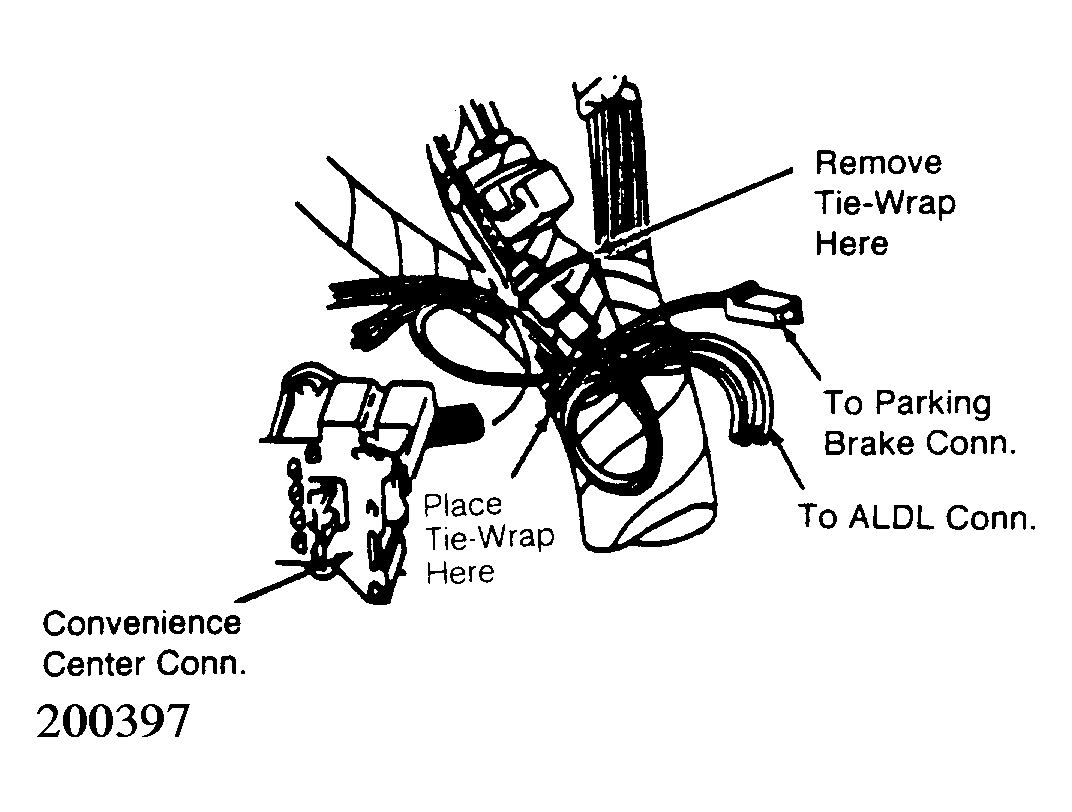

Fig 1: Location Of VSS Tie-Wrap
G200397
