Code 23: Mixture Control (M/C) Solenoid CKT

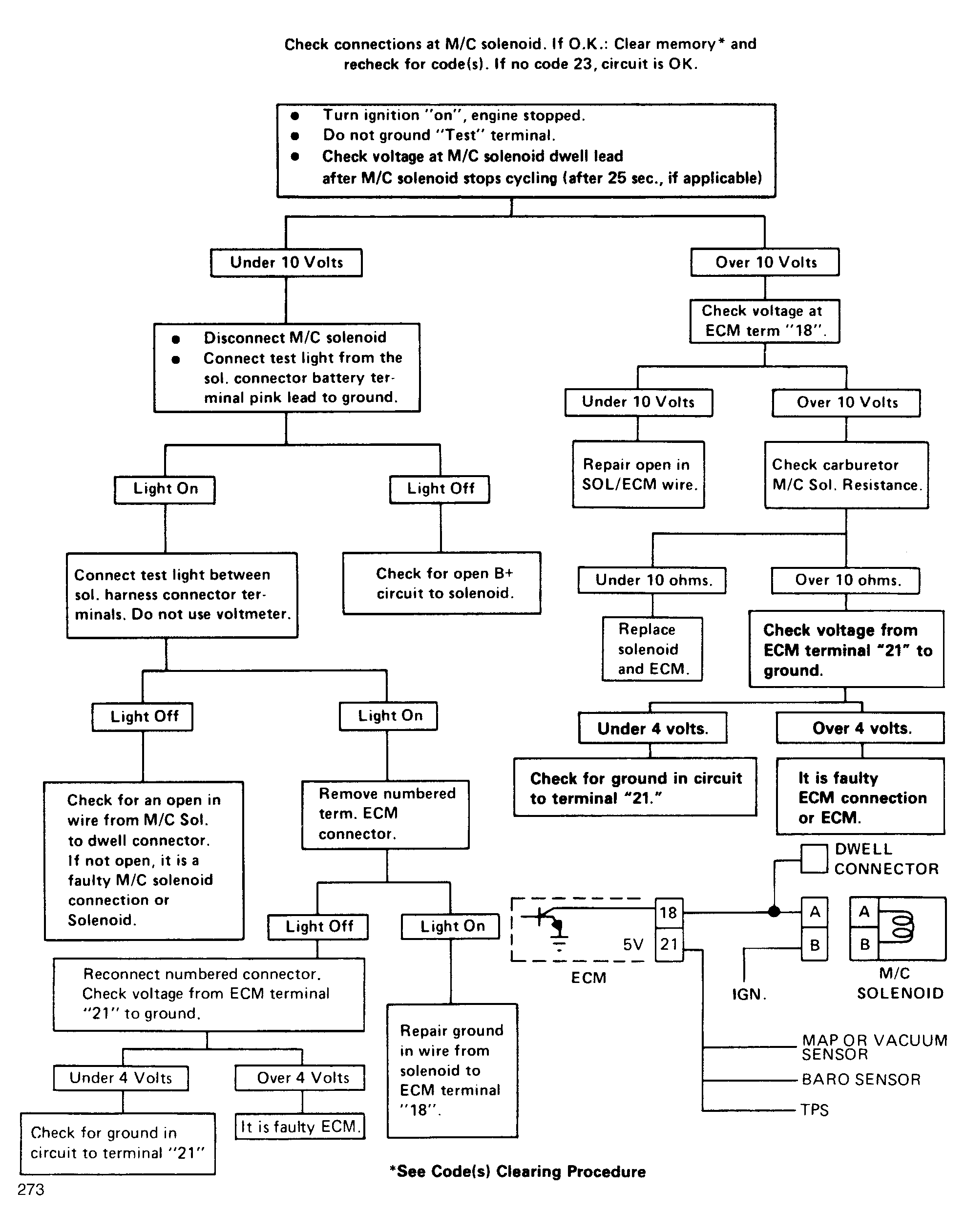

Fig 1: Code 23: Open Or Grounded M/C Solenoid Ckt Flow Chart

G273

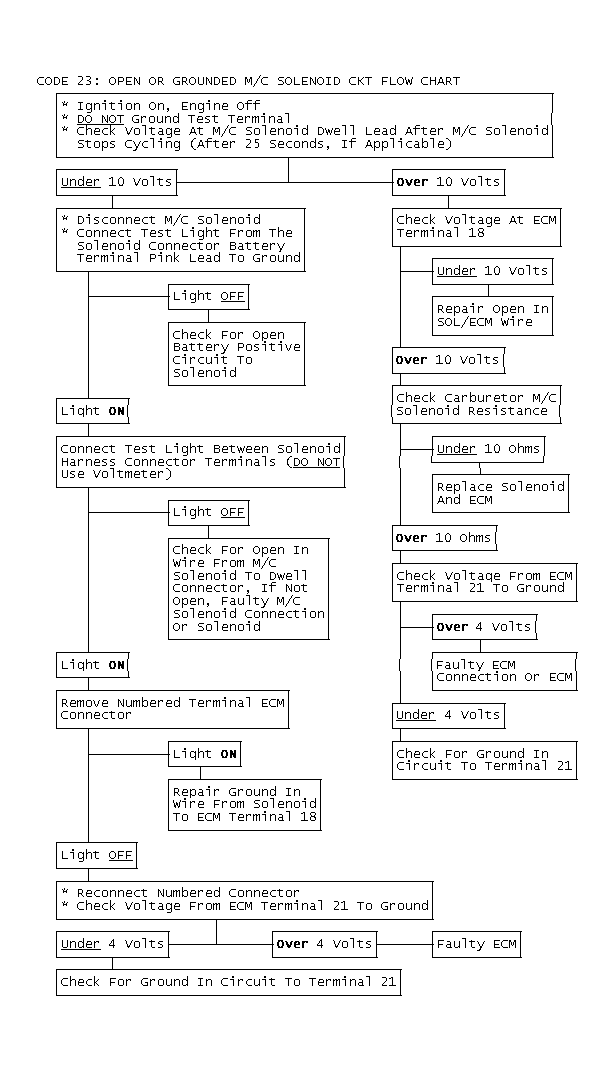

Fig 2: Code 23: Open Or Grounded M/C Solenoid Ckt Flow Chart

GB0045622
