Home >> Chevrolet >> 1983 >> Chevette Base, 4D Hatchback, 1.8 D, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Feedback Carburetor Tests W/Codes >> Code 23 - Mixture Control (M/C) Solenoid CKT

Code 23 - Mixture Control (M/C) Solenoid CKT

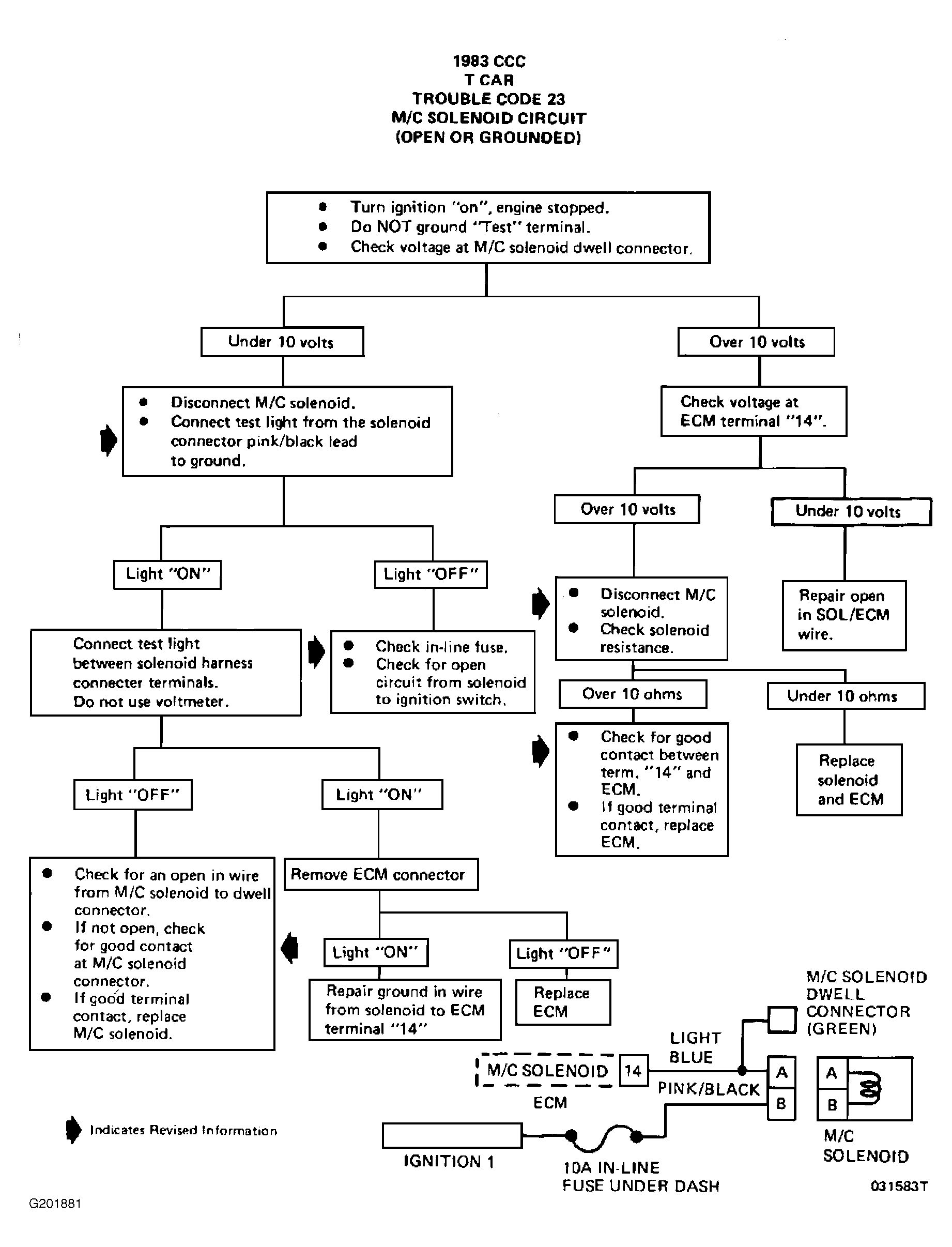

Fig 1: Flow Chart, Code 23 - Mixture Control (M/C) Solenoid Circuit (Open or Grounded)
G201881

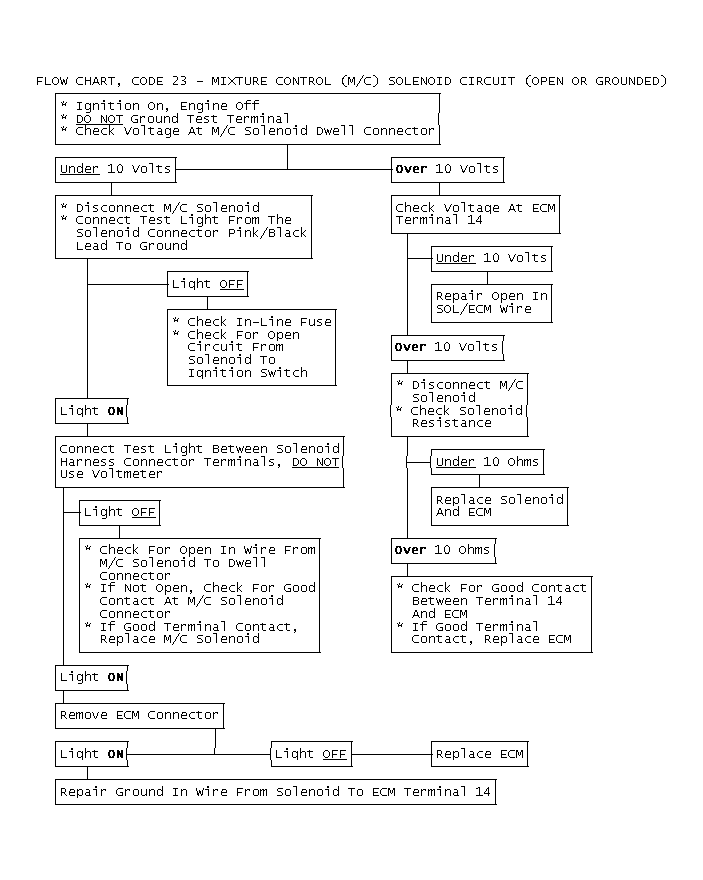

Fig 2: Flow Chart, Code 23 - Mixture Control (M/C) Solenoid Circuit (Open or Grounded)
GB0045537
