Low-Reverse Clutch: Disassembly

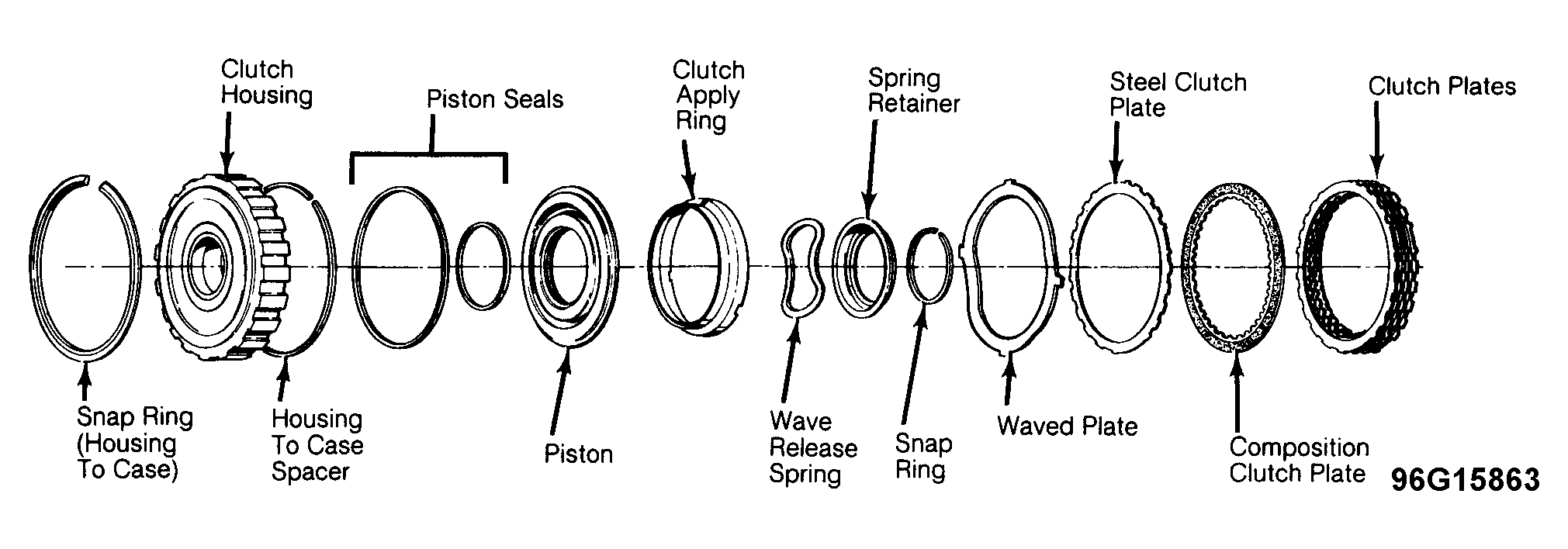

Compress low-reverse clutch spring retainer, remove snap ring and retainer. Check for damage and distortion. Remove waved spring and clutch piston. Remove inner and outer seals, and clutch apply ring. See Figure .
Compress low-reverse clutch spring retainer, remove snap ring and retainer. Check for damage and distortion. Remove waved spring and clutch piston. Remove inner and outer seals, and clutch apply ring. See Figure .
