EXPERTEC TSB (55-3)

Publication date: 1983-02-25
Reference number: 55-3

EXPERTEC TSB

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 55-3, Date of Issue: 02/25/83

CCC DIAGNOSIS CHARTS - 20 UPDATED DIAGNOSTIC CHARTS

02/25/1983

Chevrolet 55-3 Pontiac 83-I-79

BULLETIN ILLUSTRATION LIST

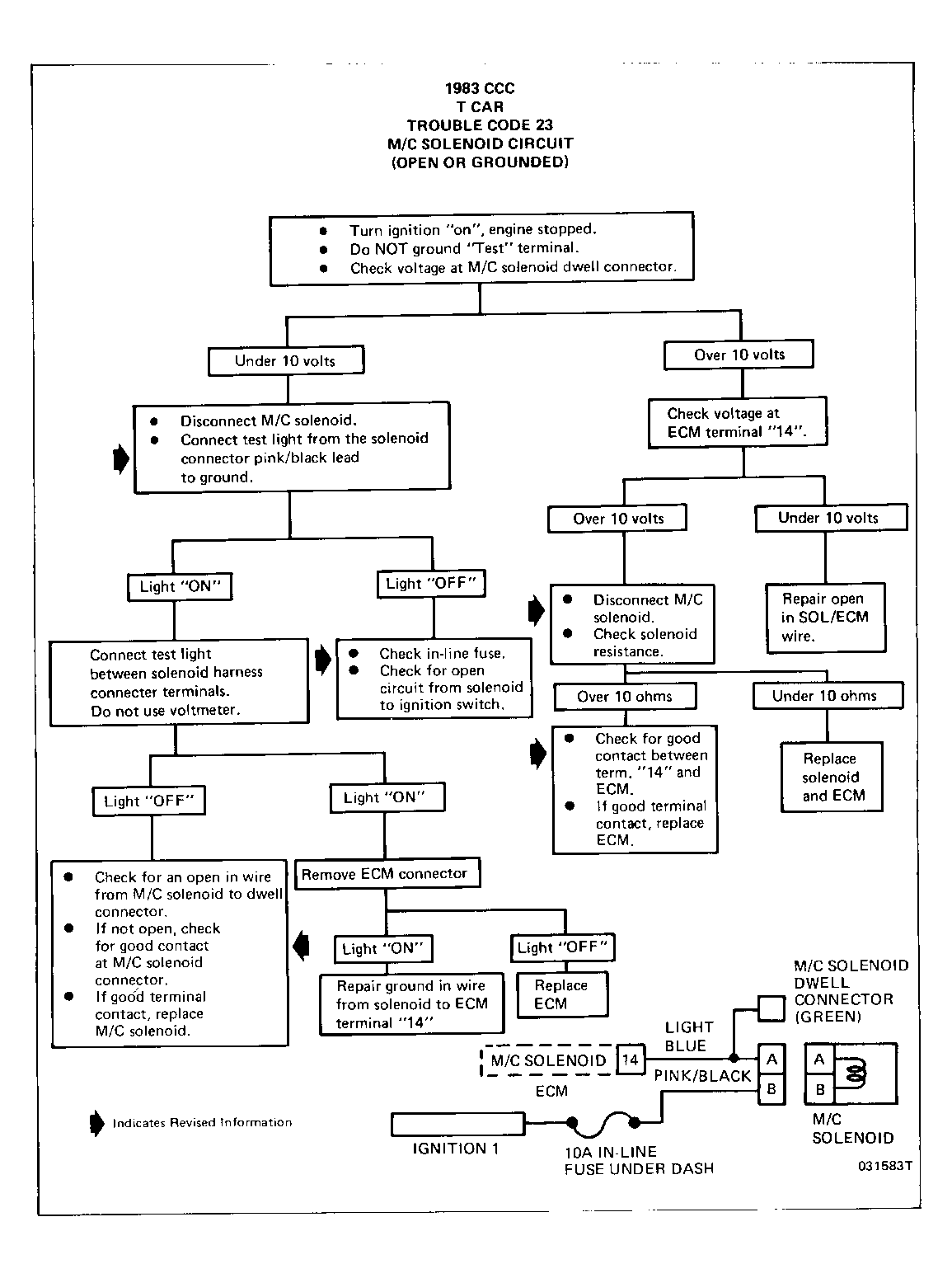

Fig 1: Graphic

GE00W000925

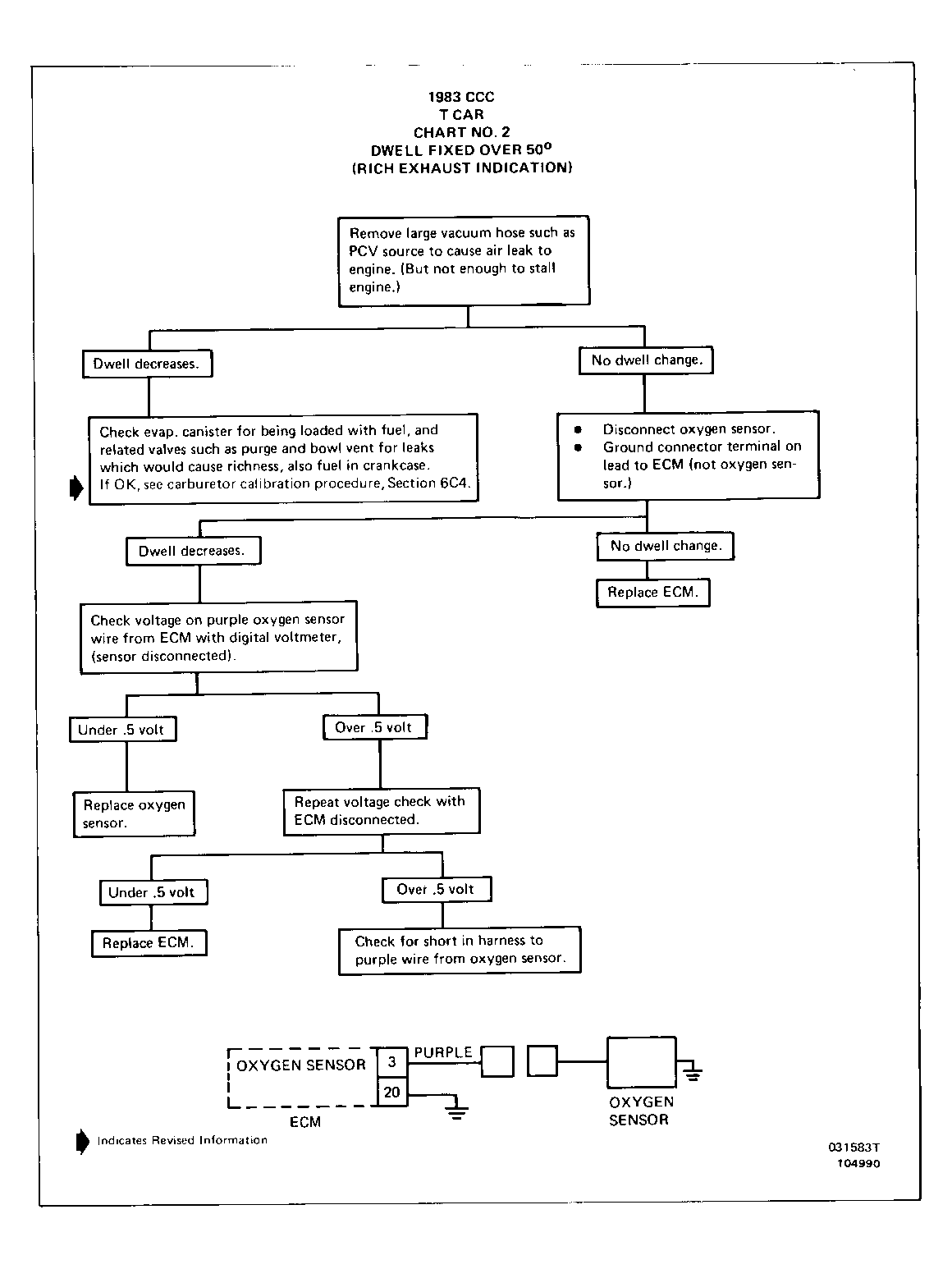

Fig 2: Graphic

GE01W000925

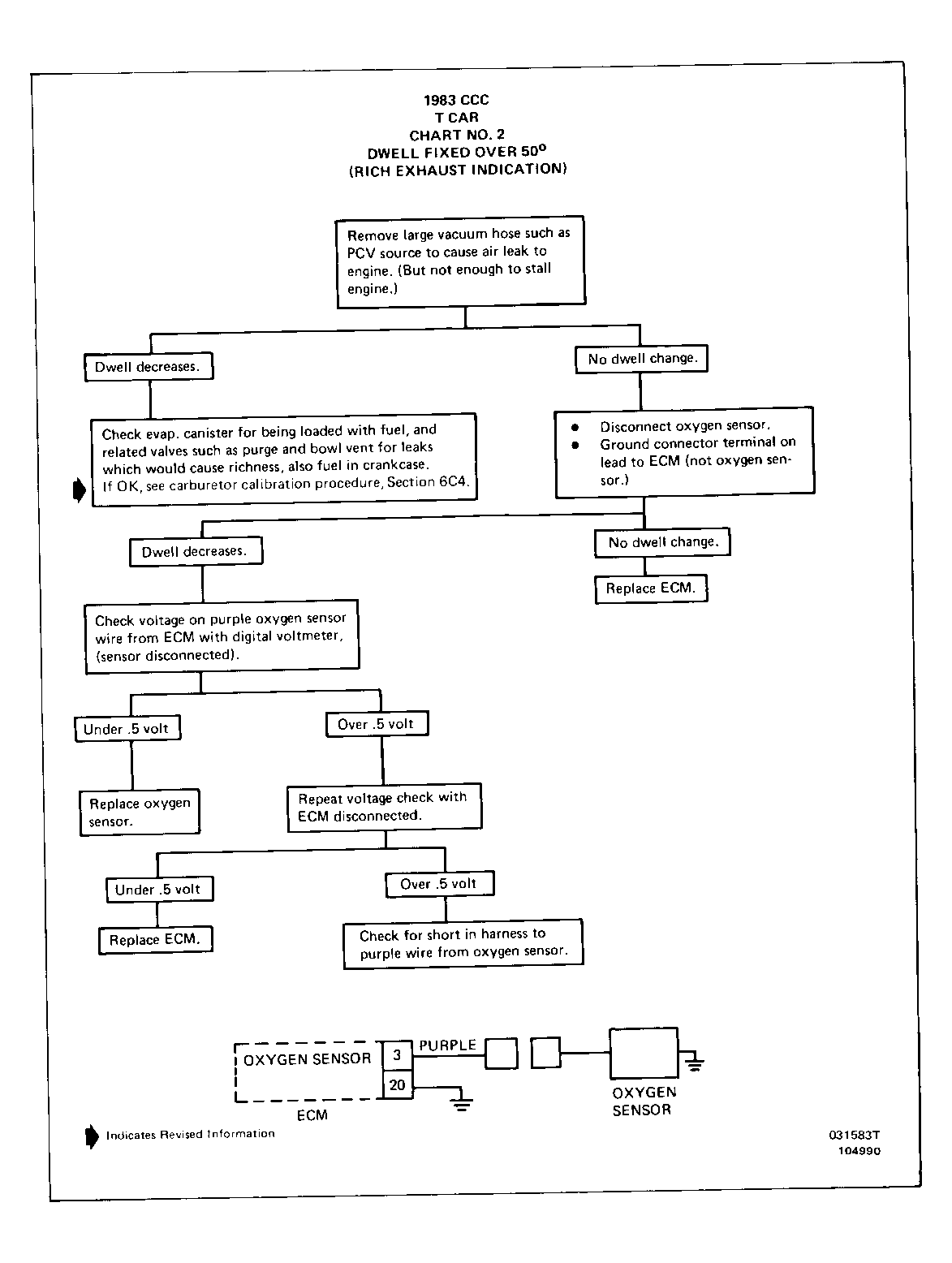

Fig 3: Graphic

GE02W000925

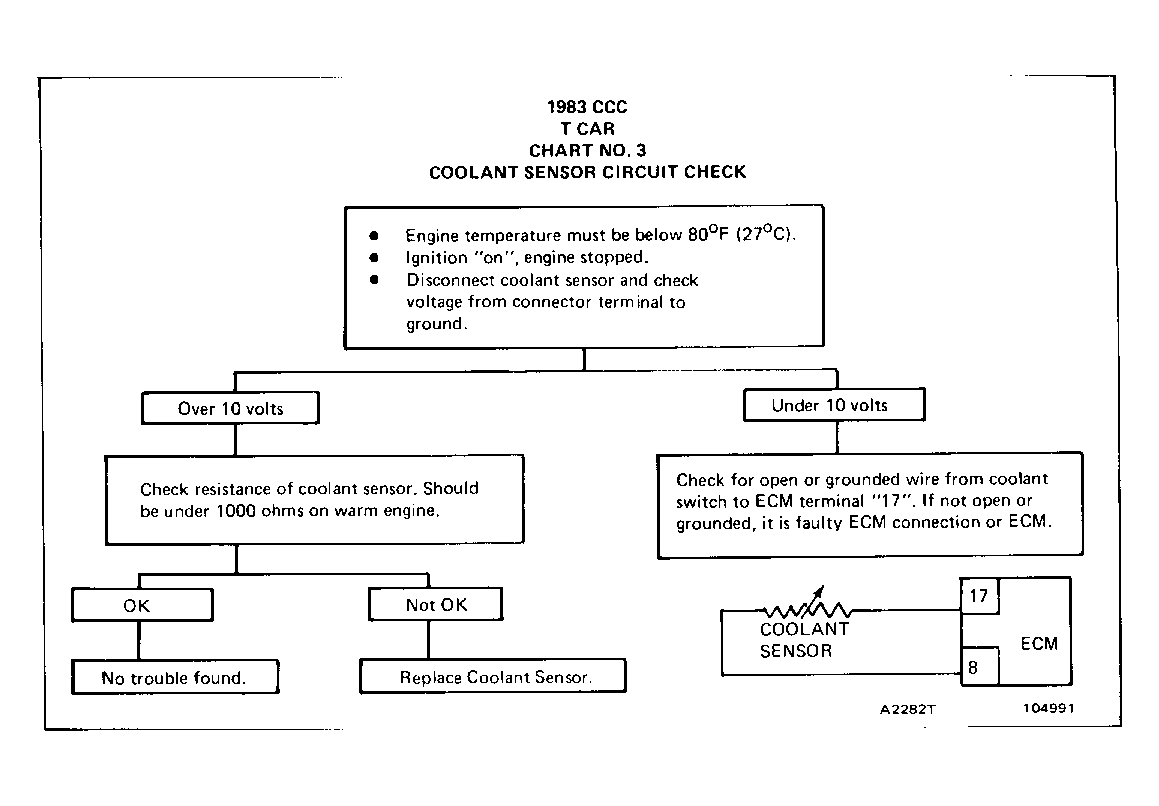

Fig 4: Graphic

GE03W000925

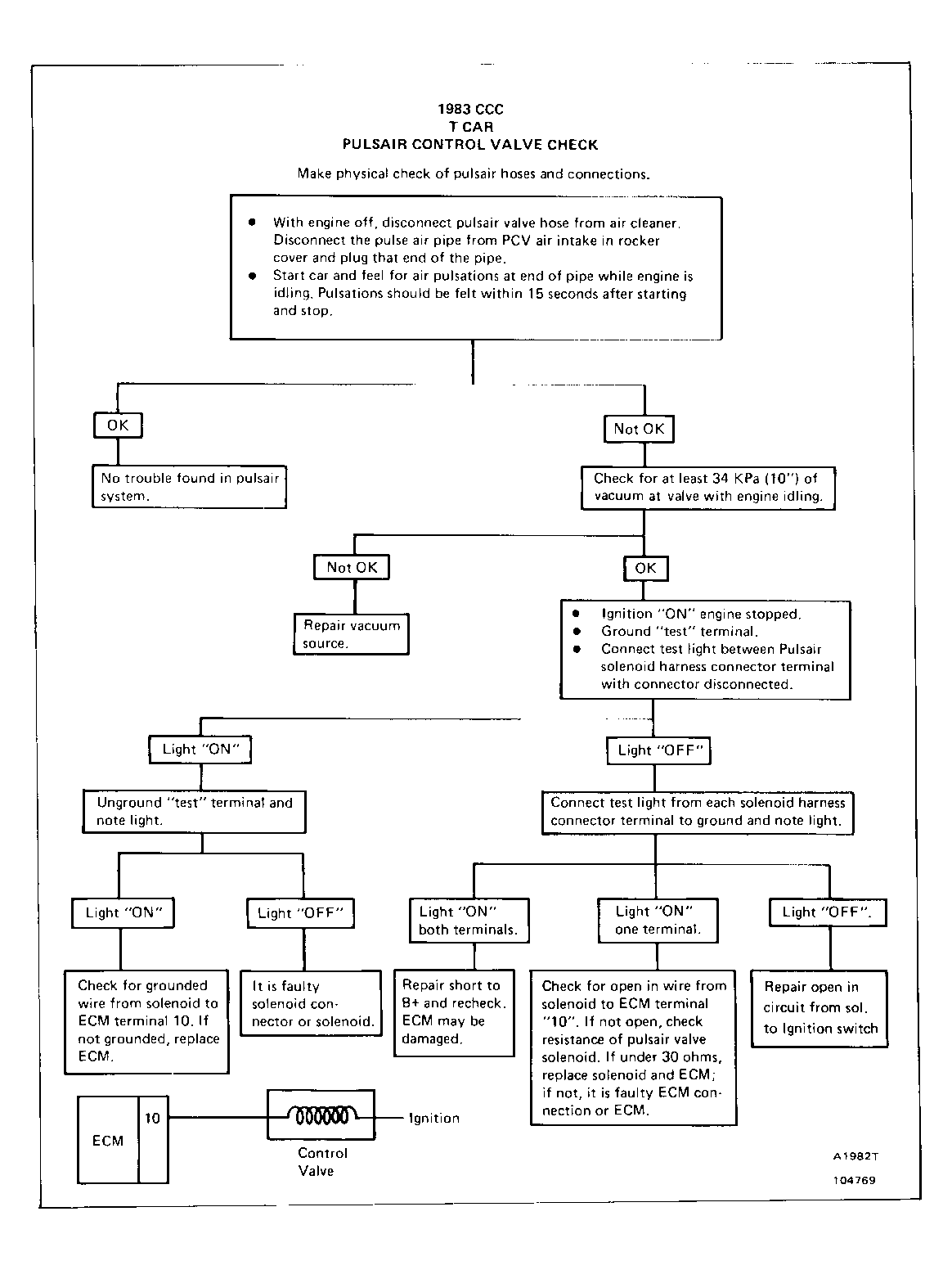

Fig 5: Graphic

GE04W000925

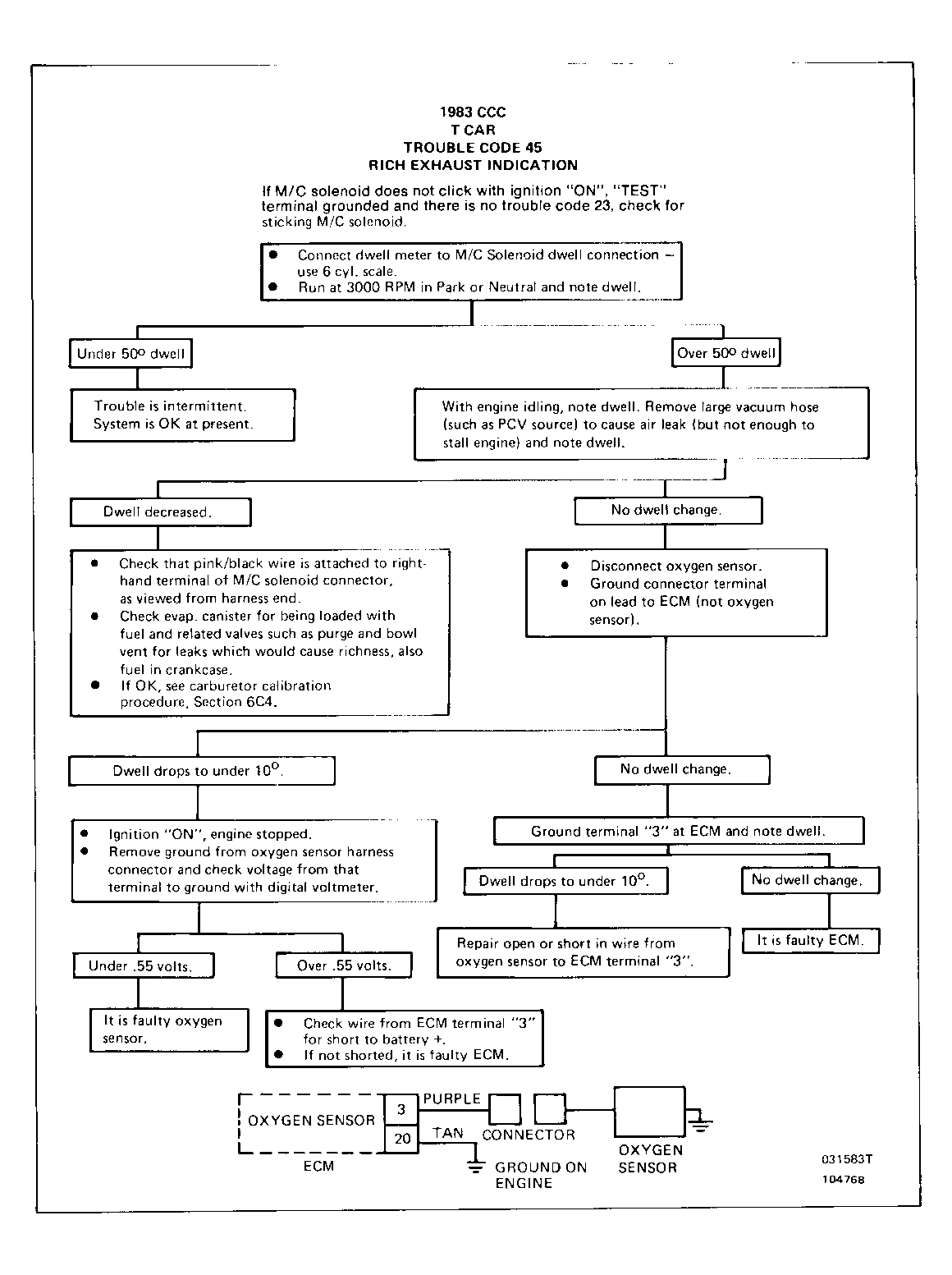

Fig 6: Graphic

GE05W000925

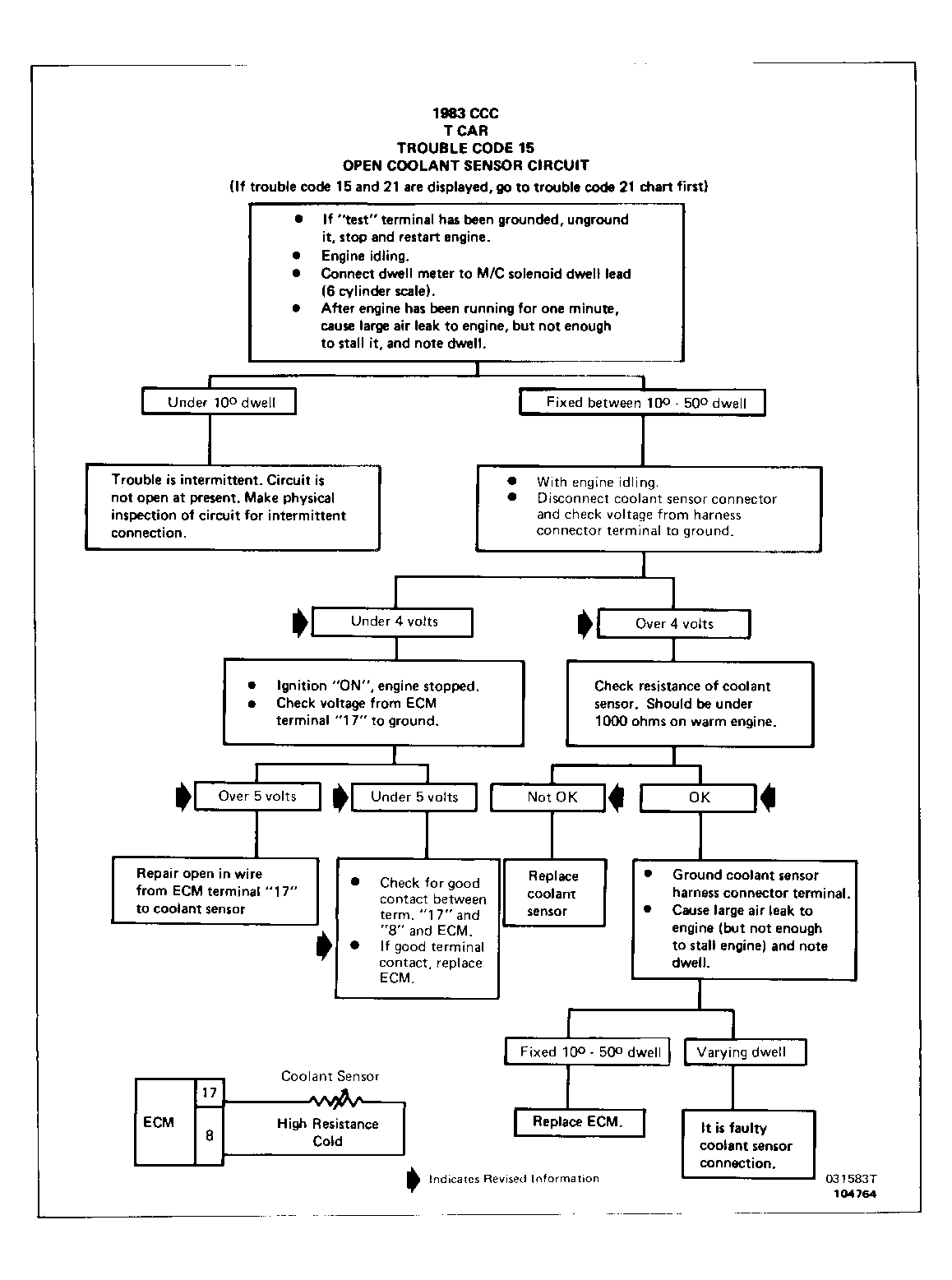

Fig 7: Graphic

GE06W000925

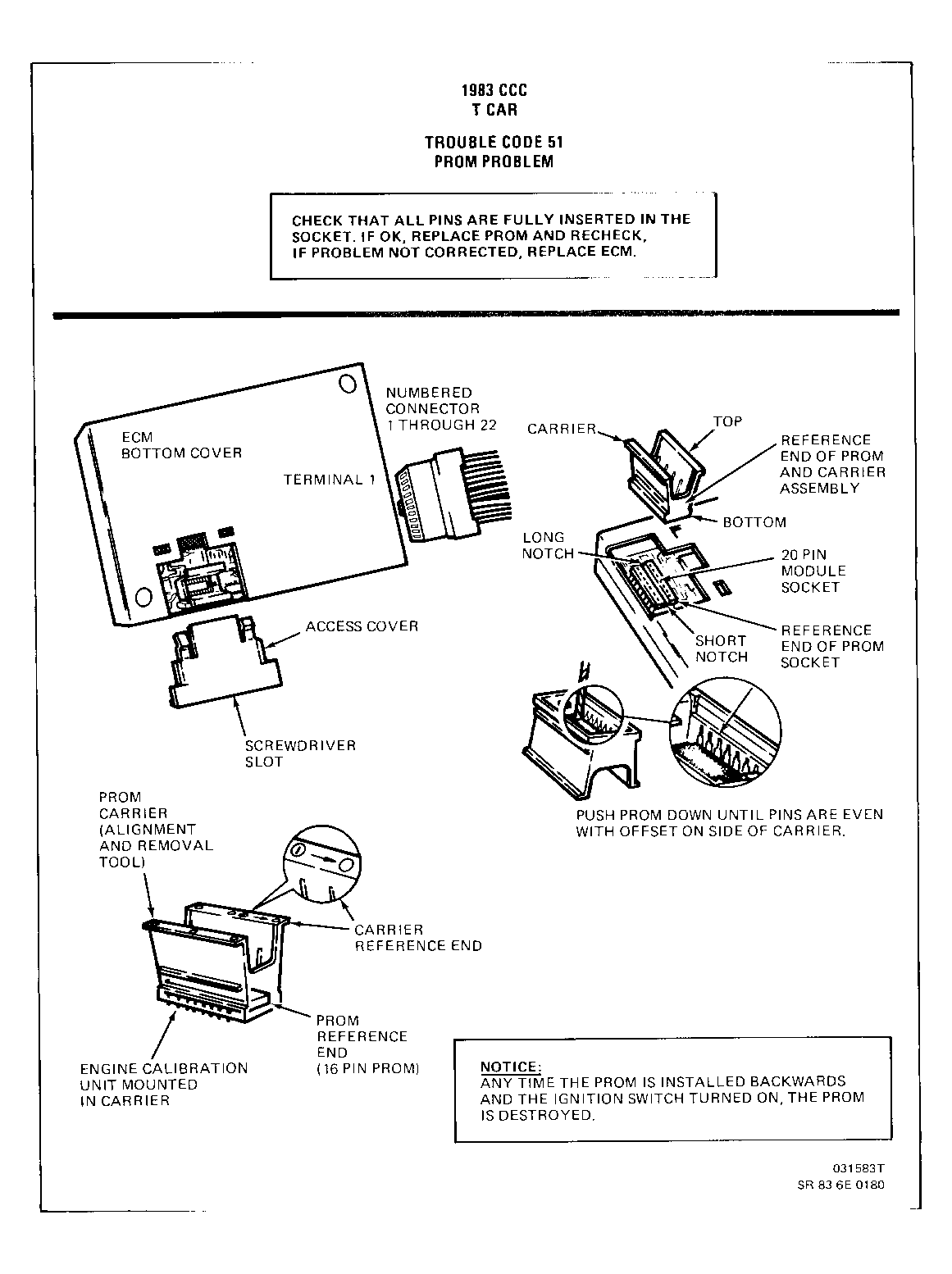

Fig 8: Graphic

GE07W000925

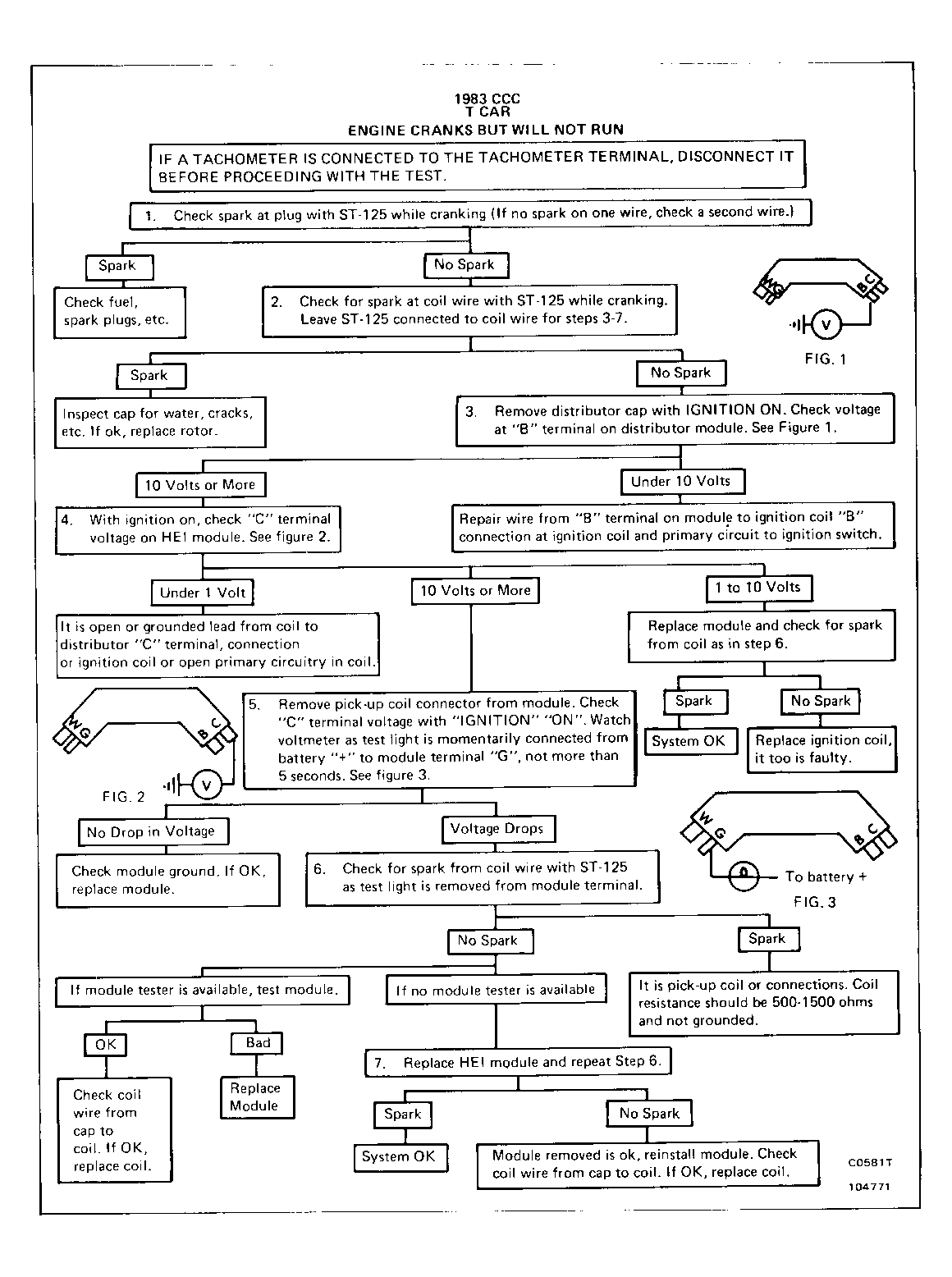

Fig 9: Graphic

GE08W000925

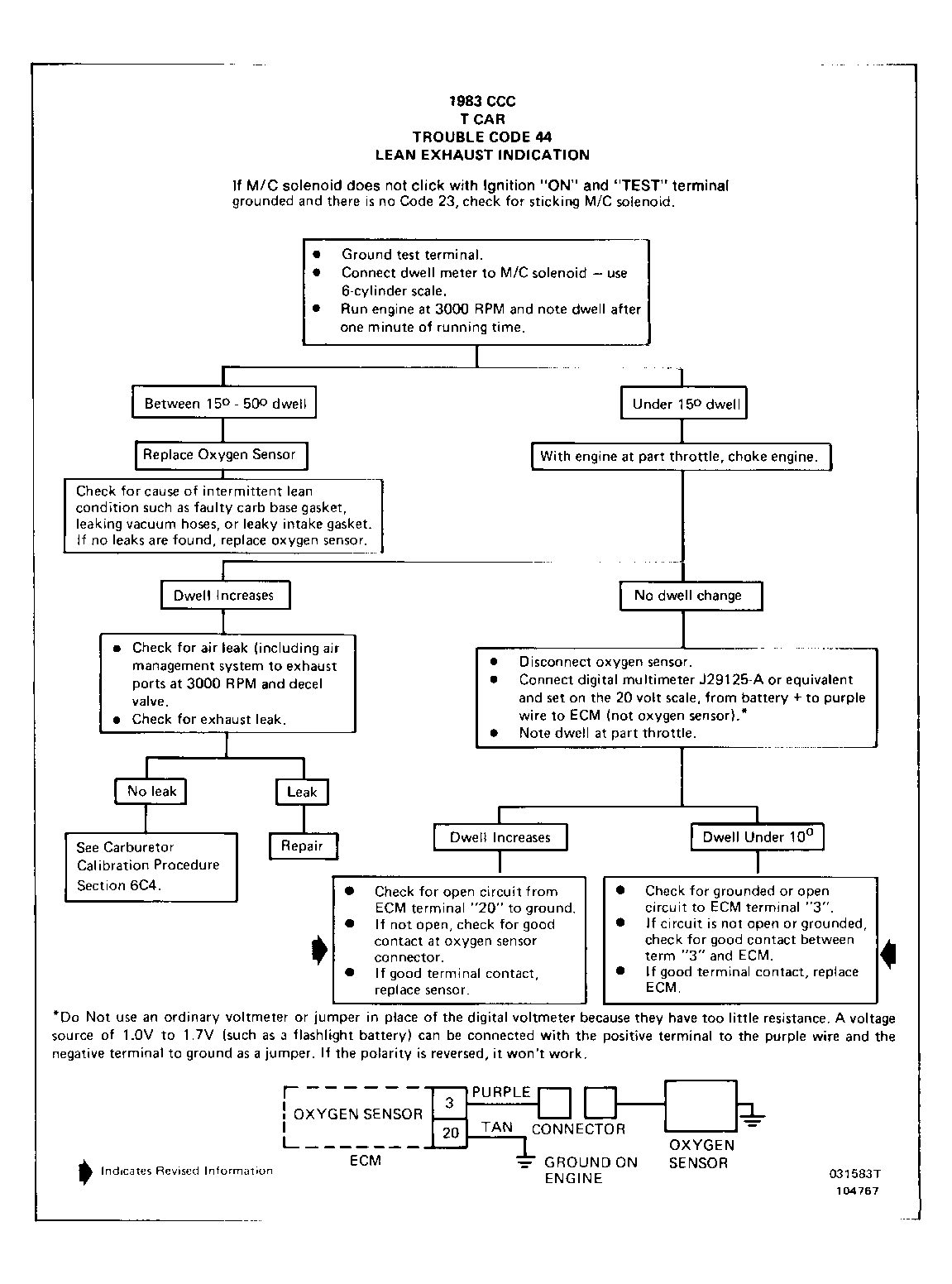

Fig 10: Graphic

GE09W000925

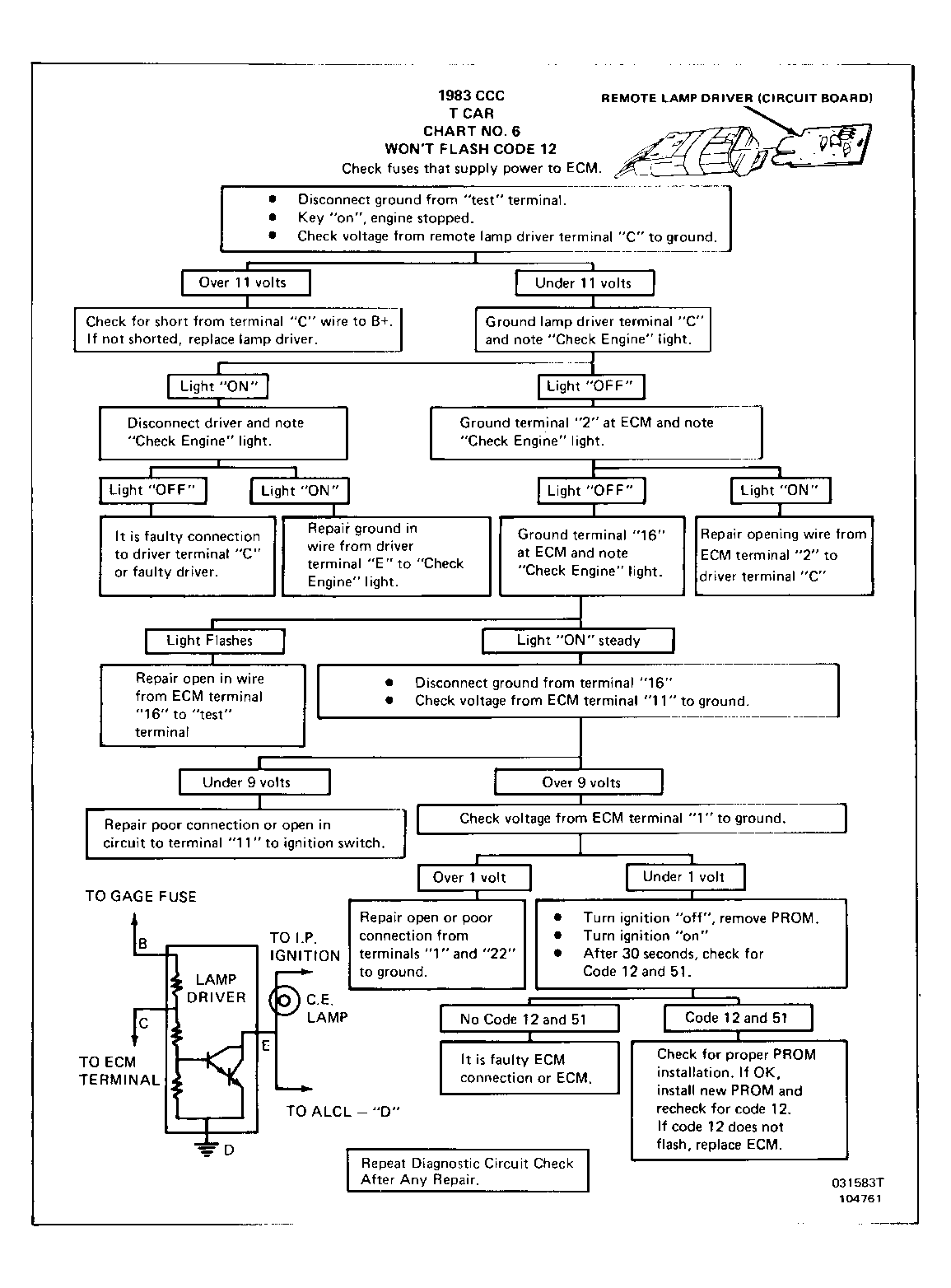

Fig 11: Graphic

GE10W000925

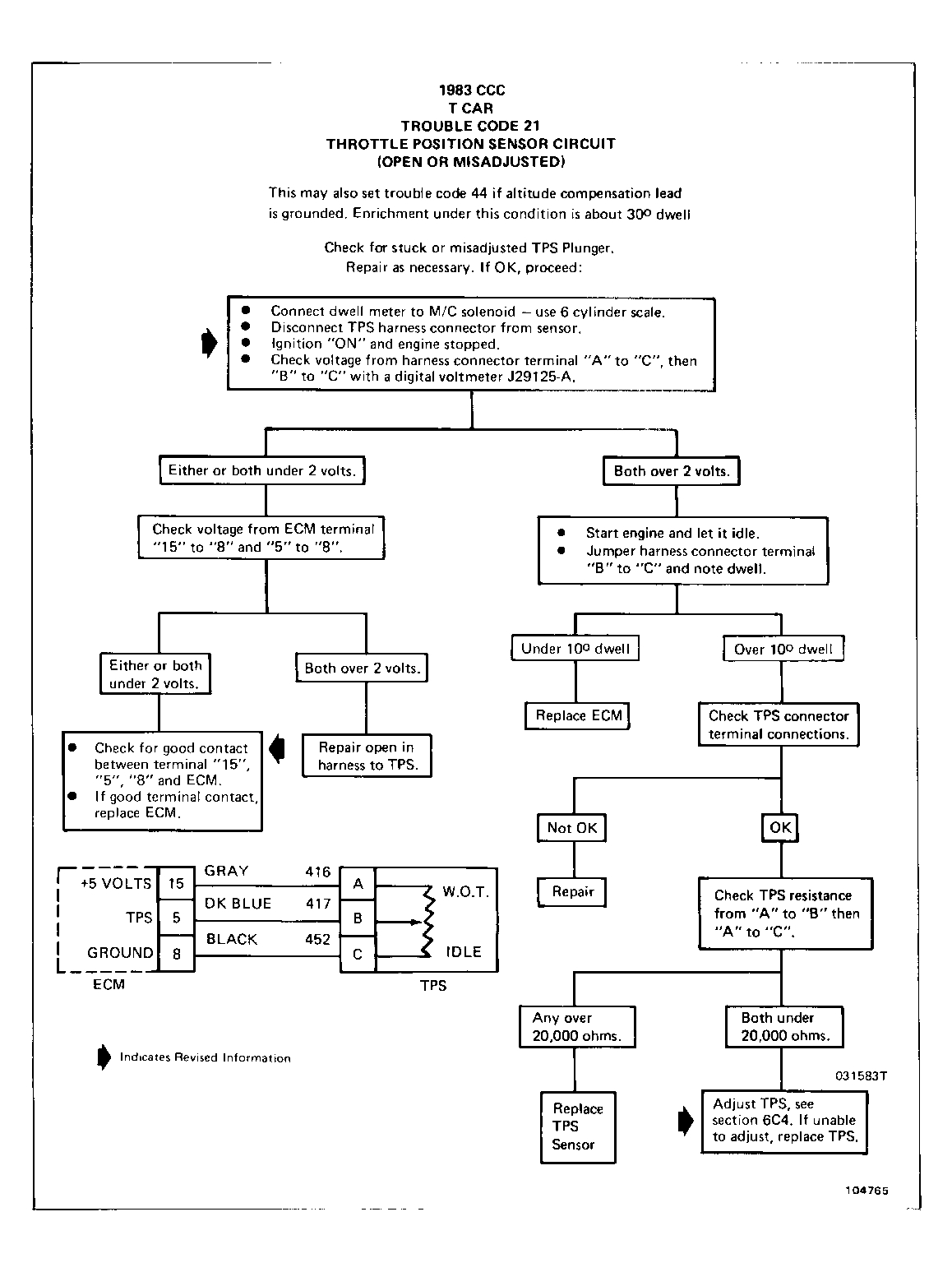

Fig 12: Graphic

GE11W000925

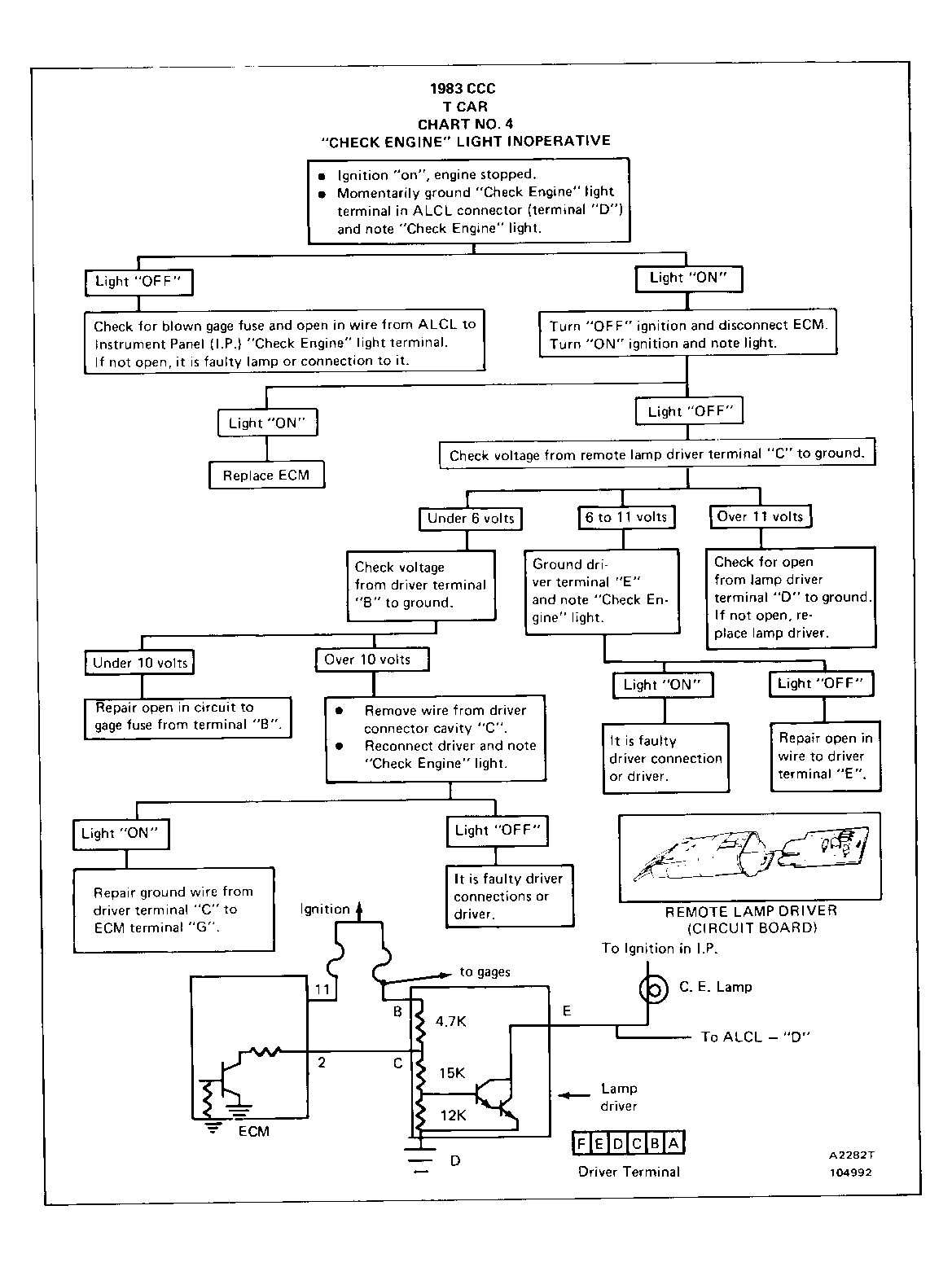

Fig 13: Graphic

GE12W000925

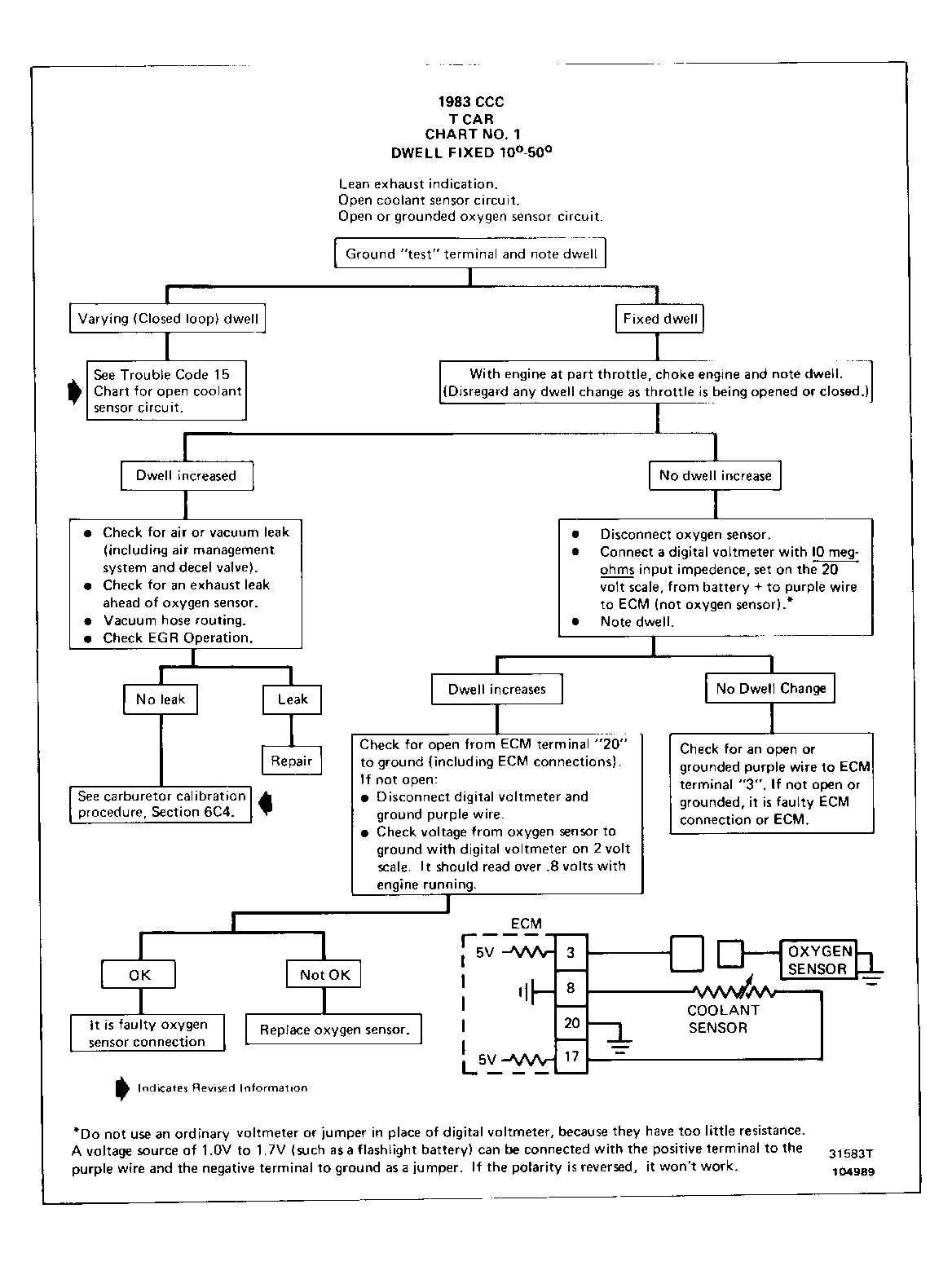

Fig 14: Graphic

GE13W000925

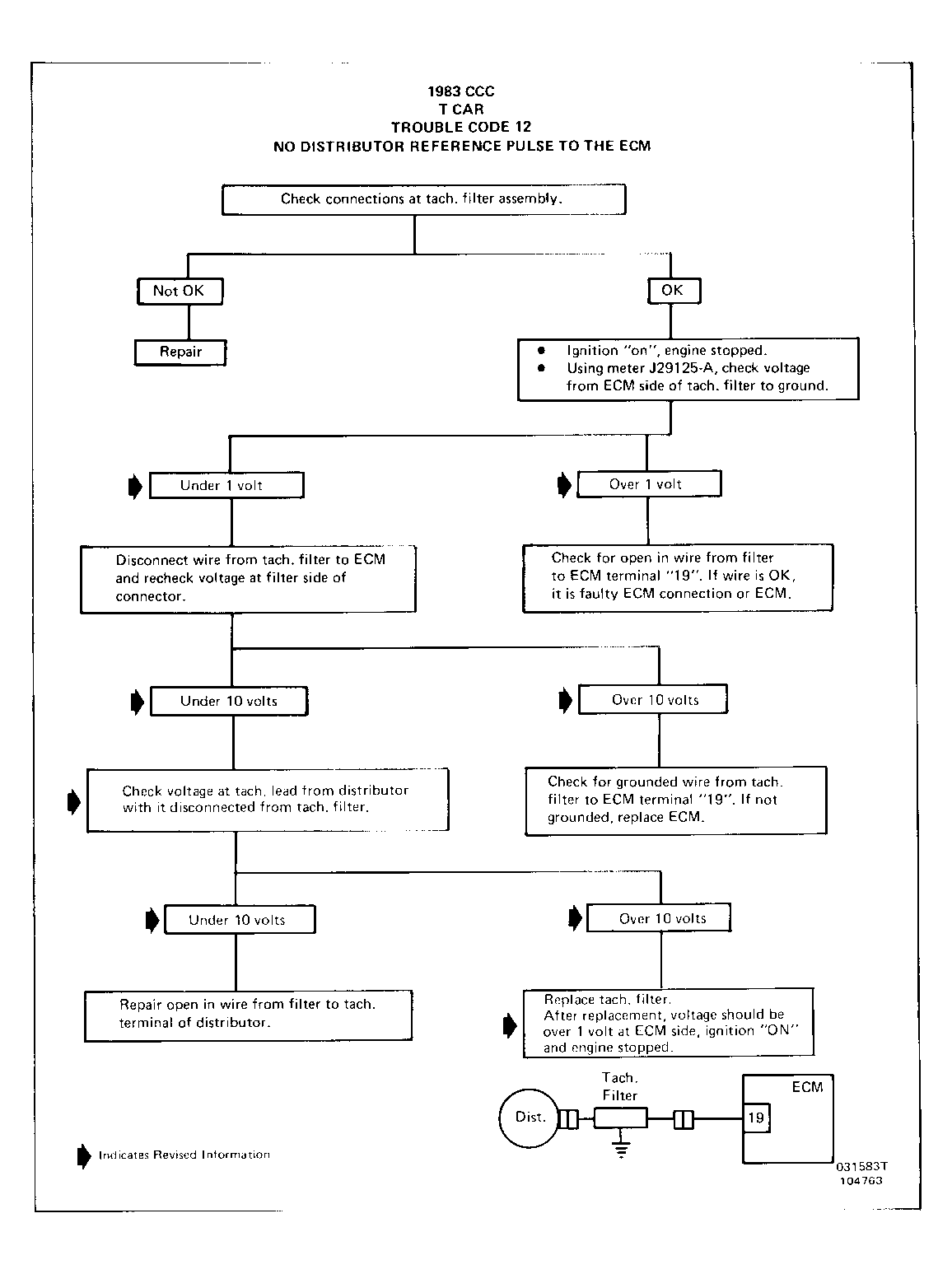

Fig 15: Graphic

GE14W000925

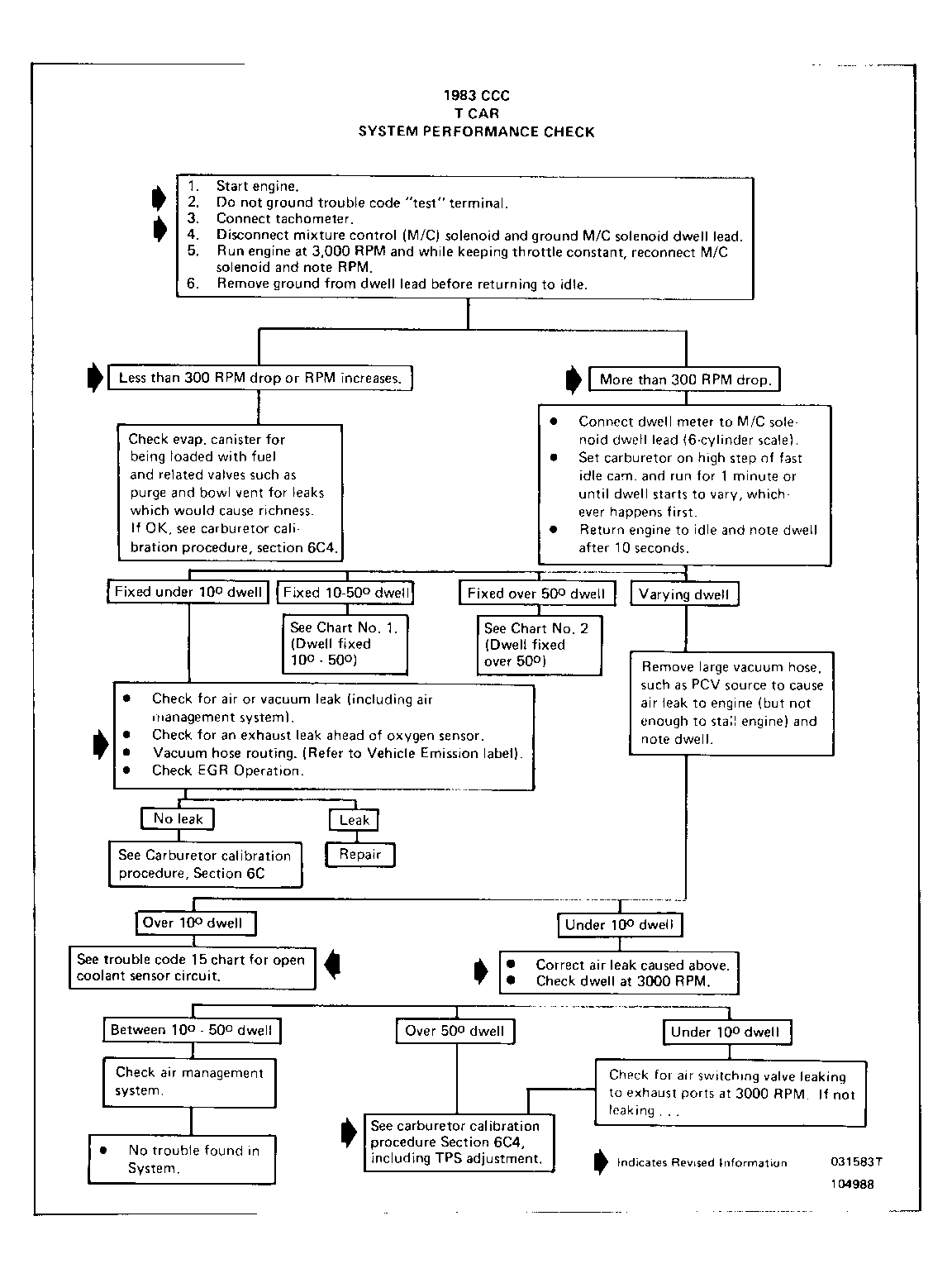

Fig 16: Graphic

GE15W000925

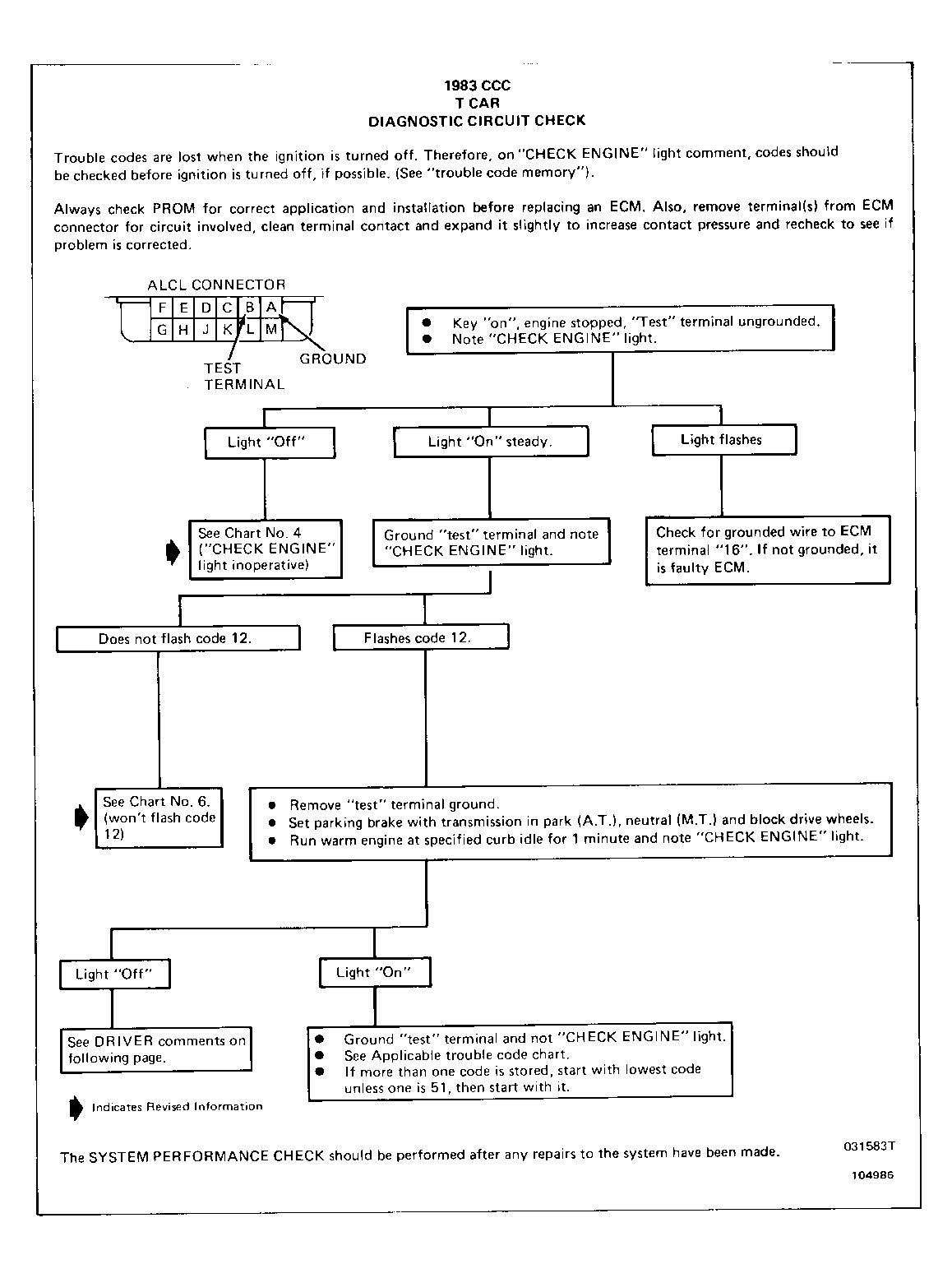

Fig 17: Graphic

GE16W000925

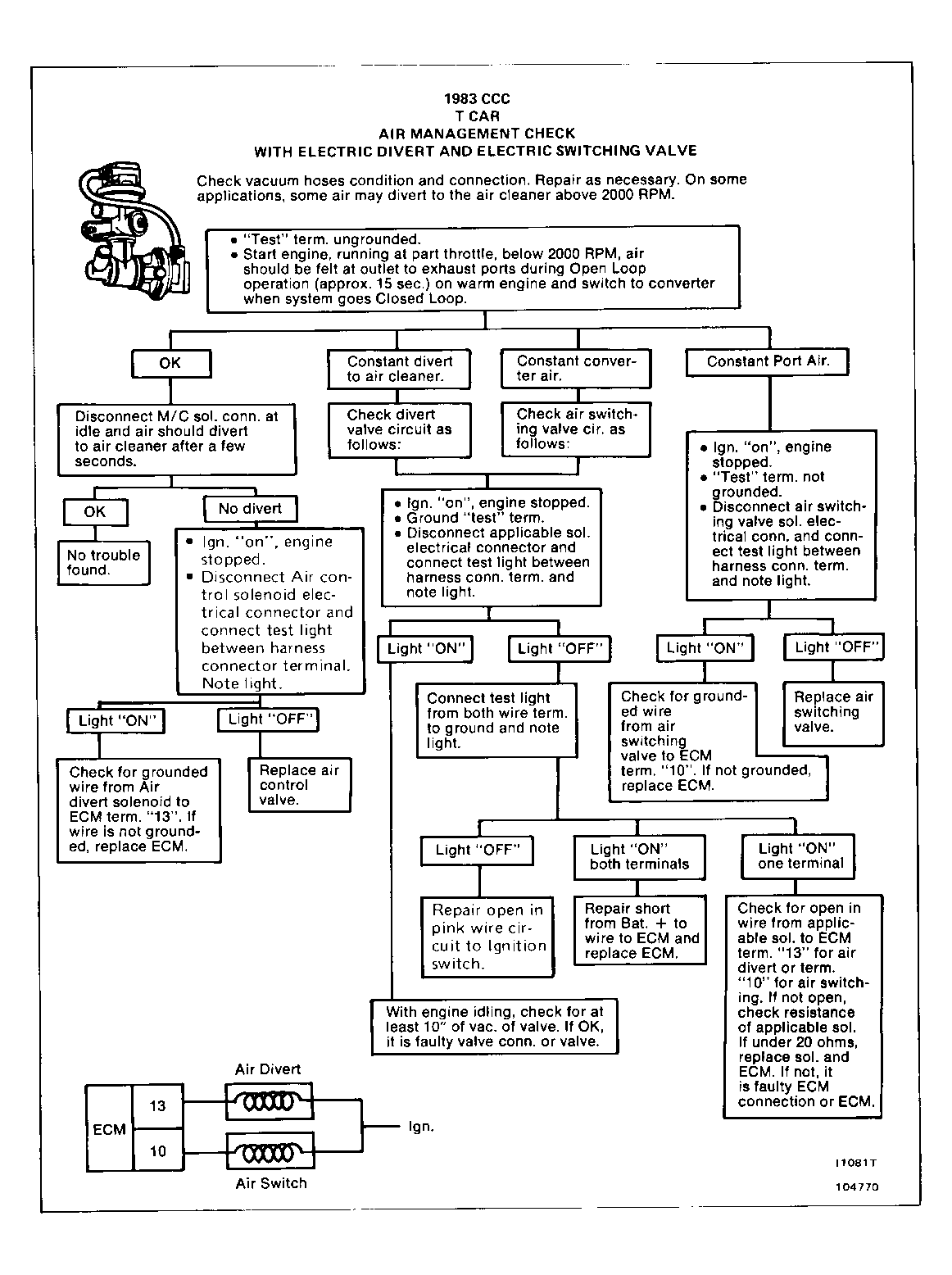

Fig 18: Graphic

GE17W000925

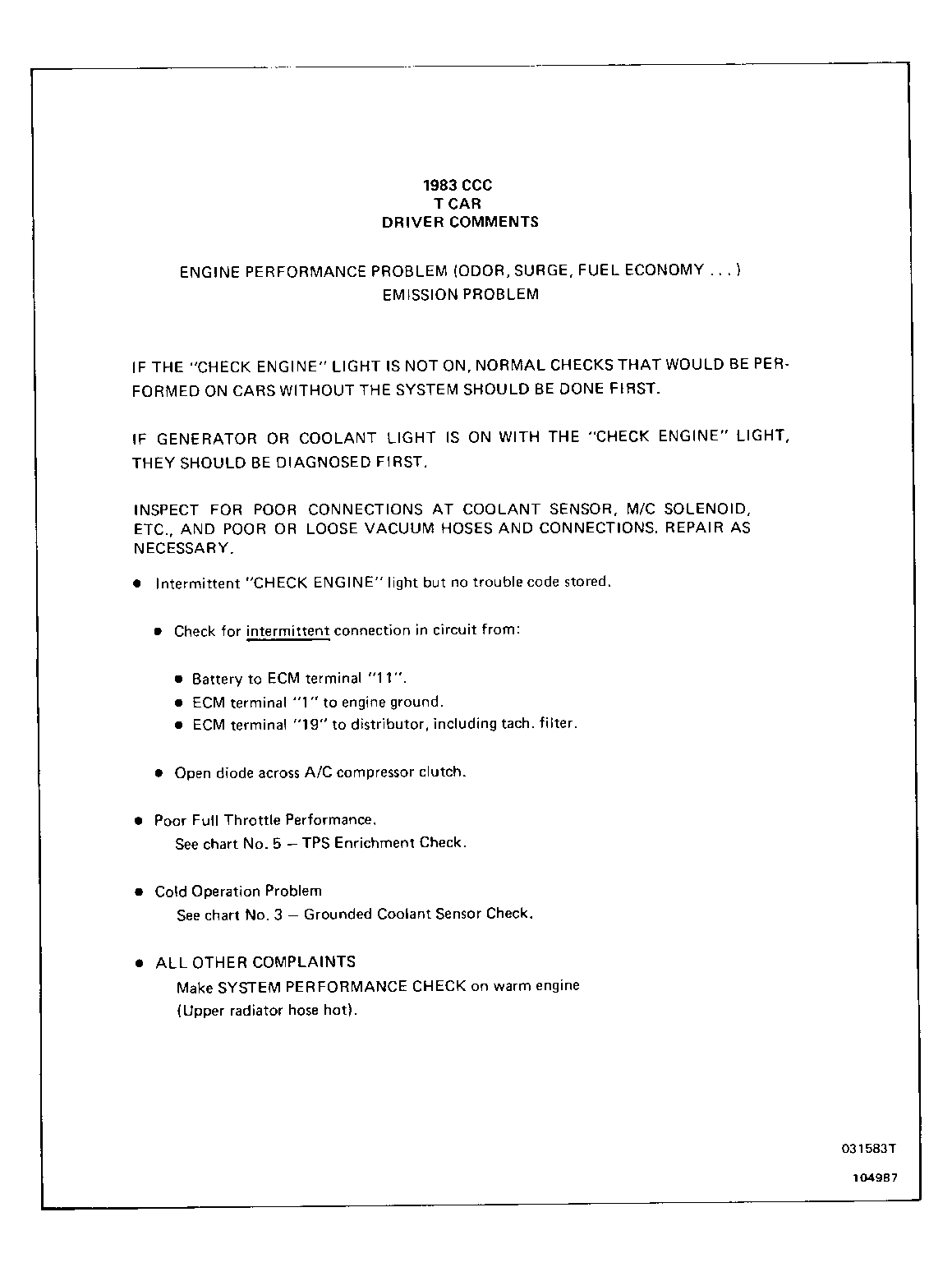

Fig 19: Graphic

GE18W000925

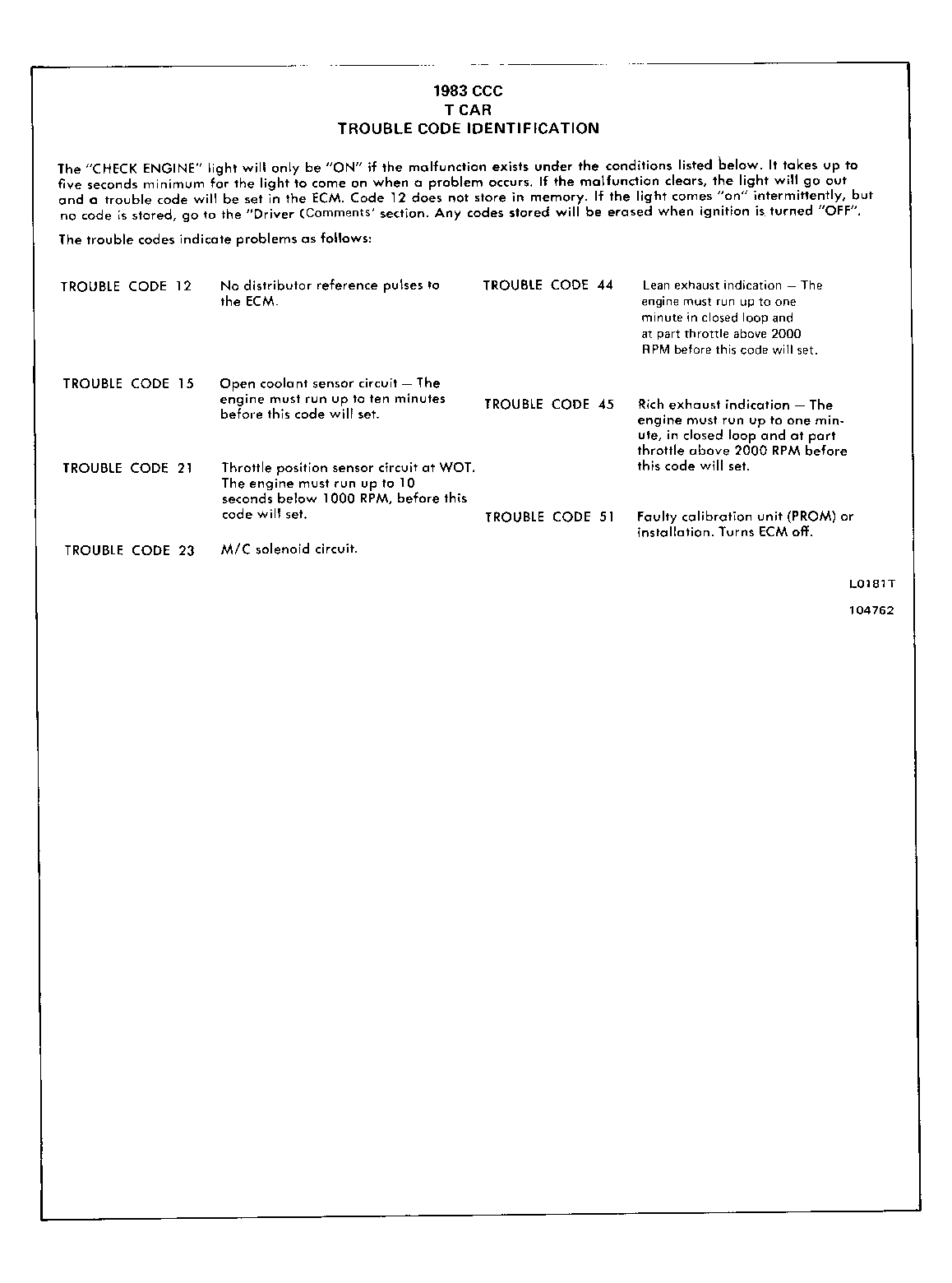

Fig 20: Graphic

GE19W000925

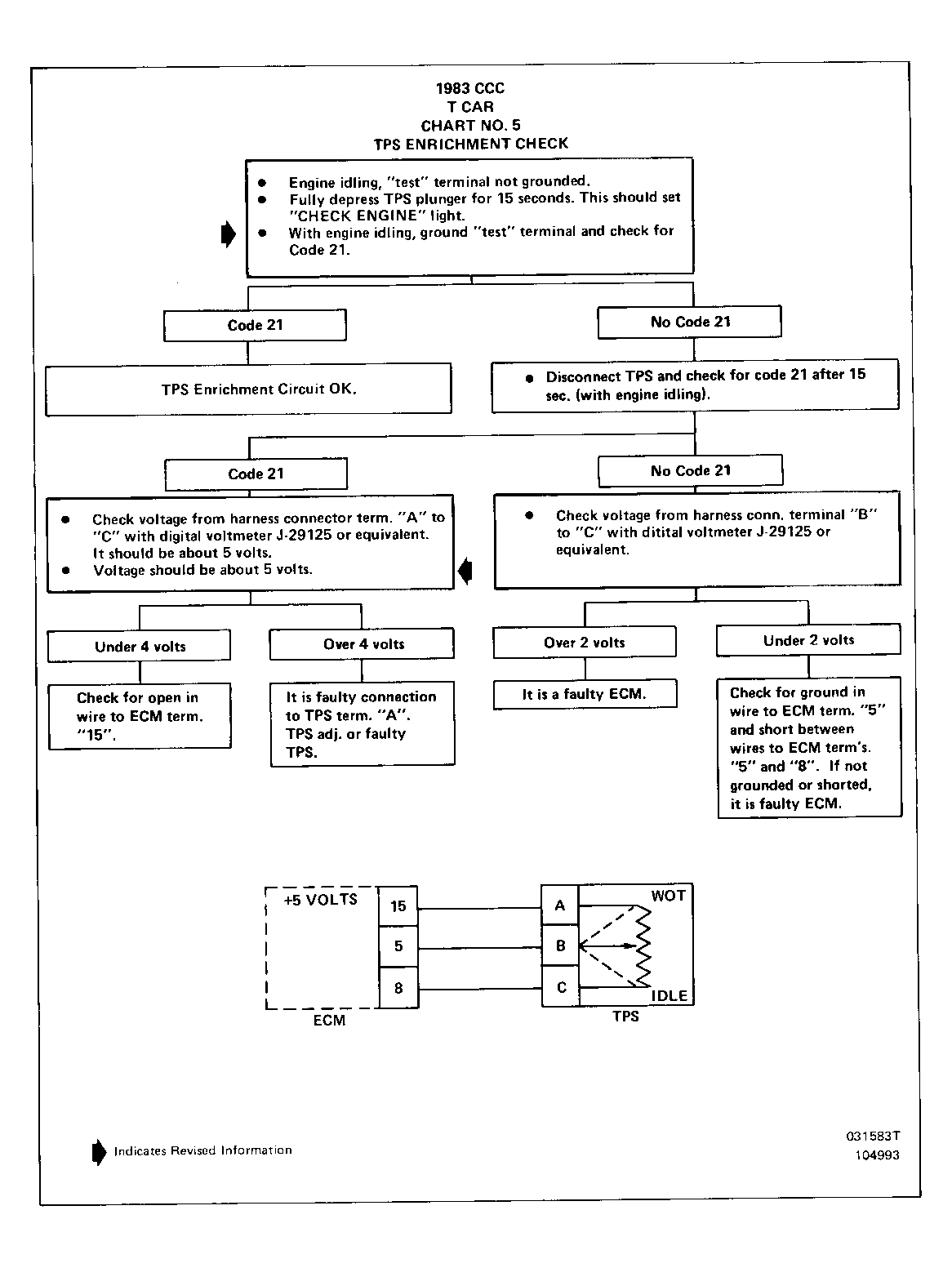

Fig 21: Graphic

GE20W000925

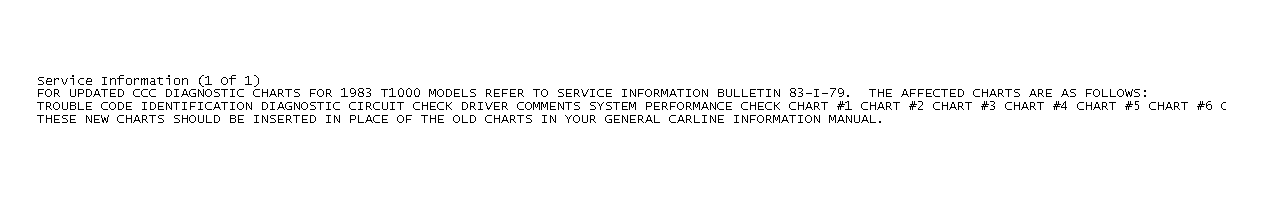

Fig 22: Service Information (1 Of 1)

GB0040227
