Overcharged Battery

Connect a voltmeter from alternator No. 2 terminal to ground. If reading is zero, No. 2 lead circuit is open. If No. 2 lead circuit checks out good, alternator will have to be disassembled for further checks (see OVERHAUL).

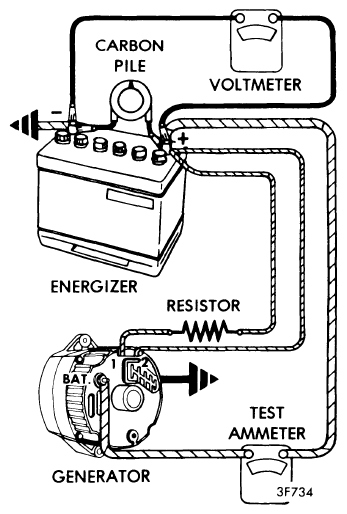

Fig 1: BENCH TEST CONNECTIONS

Courtesy of GENERAL MOTORS COMPANY
