Drive Motor Power Inverter Module Terminal Insulator Block Removal

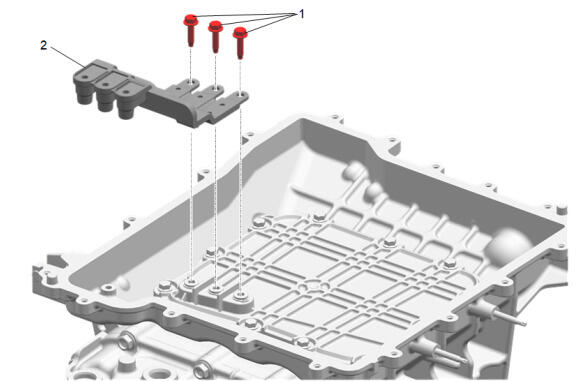

  1. GM6029121Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Power Inverter Module Connector Terminal Bolt (1) - Remove [3x]

  2. Drive Motor Power Inverter Module Terminal Insulator Block (2) - Remove
