Drive Motor Power Inverter Module Connector Removal
Courtesy of GENERAL MOTORS COMPANY

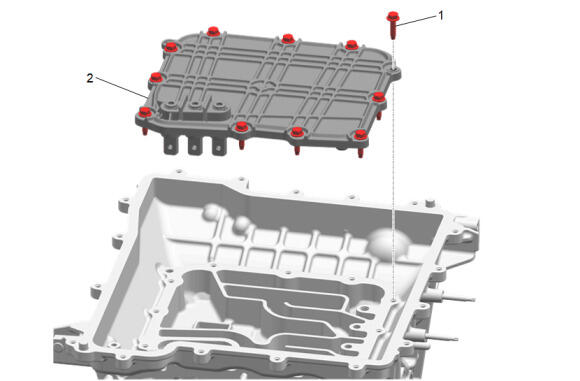

Drive Motor Housing Cover Bolt (1) - Remove [11x]
Drive Motor Power Inverter Module Connector (2) - Remove
Courtesy of GENERAL MOTORS COMPANY
