Automatic Transmission Fluid Temperature Sensor Installation

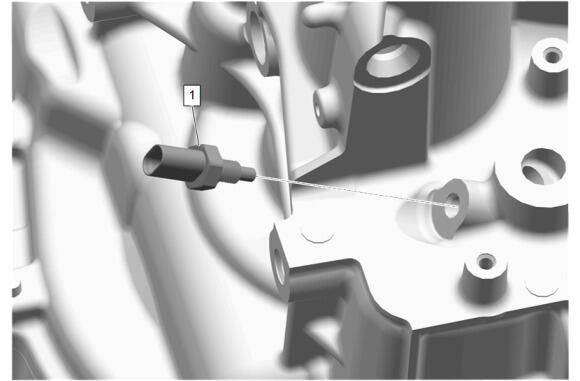

GM6029110Courtesy of GENERAL MOTORS COMPANY
  1. apply sealant to sensor. Adhesives, Fluids, Lubricants, and Sealers
  2. Automatic Transmission Fluid Temperature Sensor (1) - Install and tighten - Fastener Specifications
