Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Component Fastener Tightening Caution .

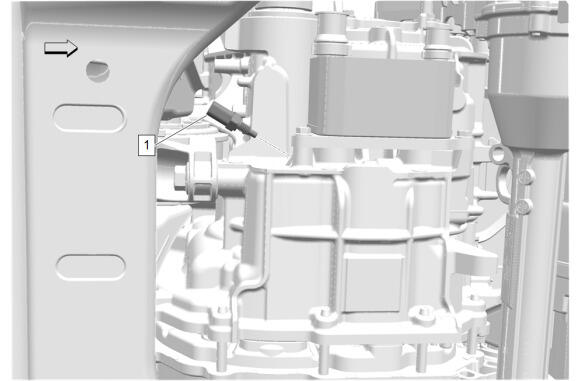

Automatic Transmission Fluid Temperature Sensor (1) - Install and tighten - Fastener Specifications
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The proper position of the front compartment insulator (1) is above the front bumper lower fascia and the left and right side front wheelhouse liners.

Front Compartment Insulator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

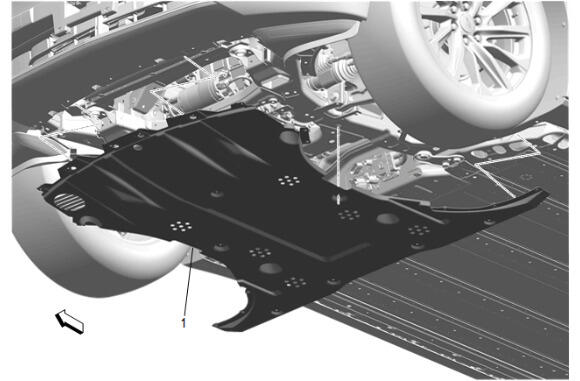

Underbody Front Air Deflector Retainer (2) - Install [2x]

CAUTION:

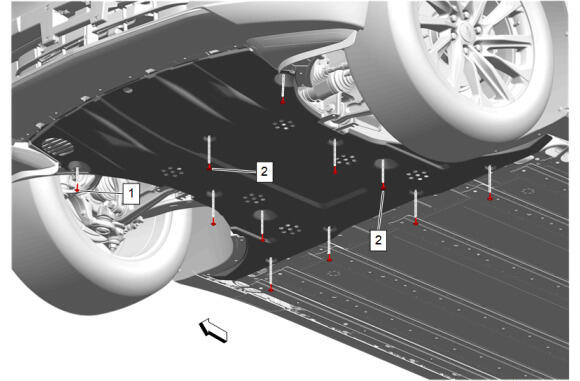

Underbody Front Air Deflector Bolt (1) - Install and tighten [9x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

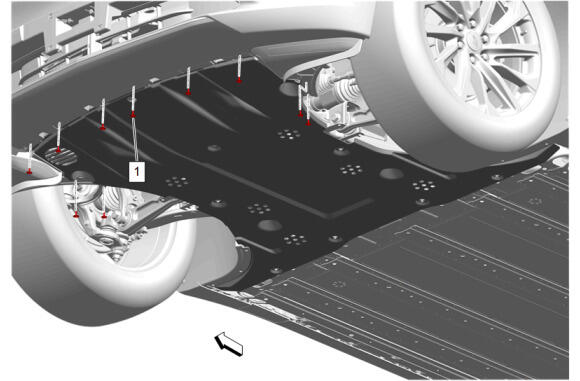

Front Bumper Fascia Bolt (1) - Install and tighten [10x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

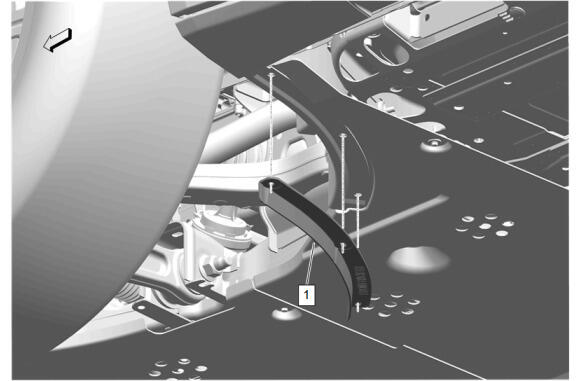

Front Tire Front Air Deflector - Left Side and Right Side (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Front Wheelhouse Liner Bolt - Left Side and Right Side (1) - Install and tighten [6x] - Fastener Specifications
Remove the support and lower the vehicle. Lifting and Jacking the Vehicle (Standard Service) , or Lifting and Jacking the Vehicle (Mobile Service)
