Drive Motor Power Inverter Module Connector Installation

Single Use Fasteners and Components

Drive Motor Power Inverter Module Connector [3x]

1. Courtesy of GENERAL MOTORS COMPANY

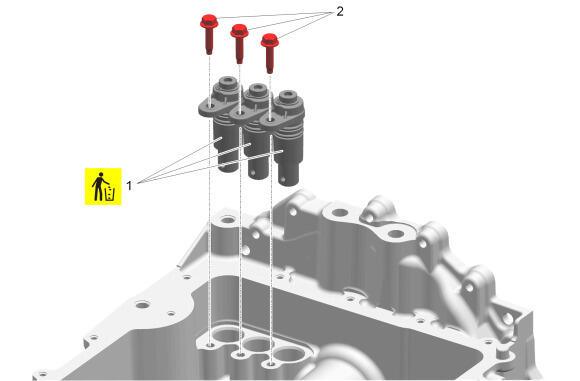

   Drive Motor Power Inverter Module Connector (1) - Install NEW [3x]

CAUTION:

Refer to Fastener Caution .

2. Drive Motor Power Inverter Module Connector Bolt (2) - Install and tighten [3x] - Fastener Specifications
