Installation Procedure
- CAUTION:
Refer to Component Fastener Tightening Caution .
NOTE:- Some components not shown for graphic clarity.
- If the automatic transmission fluid temperature sensor is removed from the transmission for any reason and the sensor is to be reinstalled, the threads must have sealant compound applied before reinstallation. Adhesives, Fluids, Lubricants, and Sealers

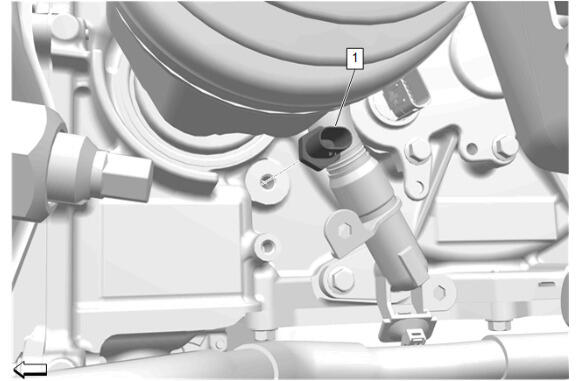

Automatic Transmission Fluid Temperature Sensor (1) - Install and tighten - Fastener Specifications
- NOTE:
Some components not shown for graphic clarity.
Connect the electrical connector and position the wiring harness. (1)
- NOTE:
The proper position of the underbody rear air rear deflector - Middle (1) is above the front underbody rear air rear defector - front.

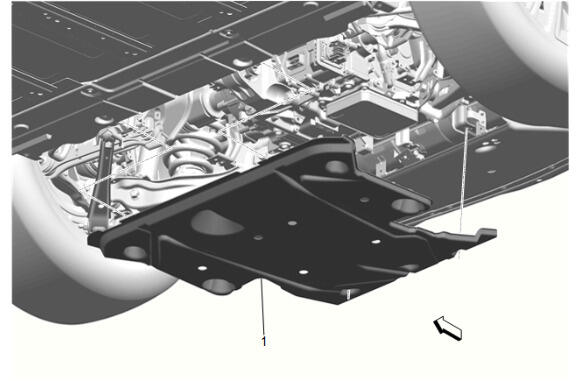

Underbody Rear Air Rear Deflector - Middle (1) - Install

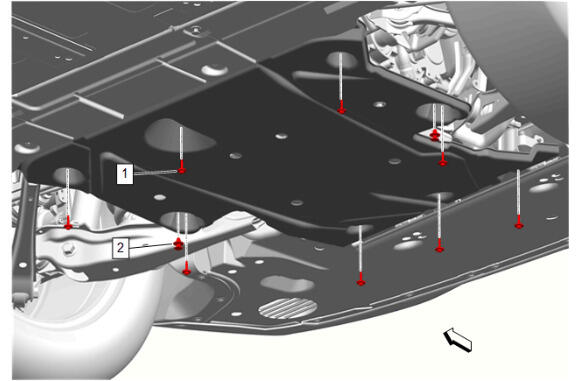

Underbody Rear Air Deflector Retainer (2) - Install [2x]
- Underbody Rear Air Deflector Bolt (1) - Install and tighten [8x] - Fastener Specifications
- Remove the support and lower the vehicle. Lifting and Jacking the Vehicle (Standard Service) , or Lifting and Jacking the Vehicle (Mobile Service)
CAUTION:
Refer to Fastener Caution .
