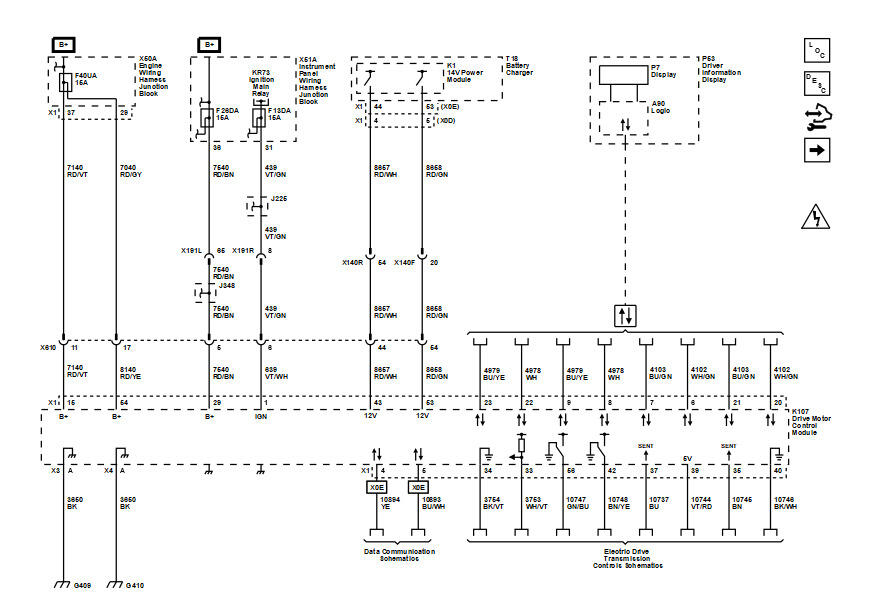

Drive Motor Control Module - Power, Ground, and Serial Data

GM6153310

Courtesy of GENERAL MOTORS COMPANY
