Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

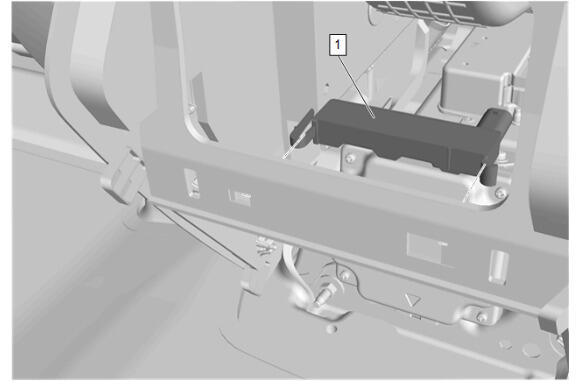

Low Frequency Console Number 2 Antenna (1) - Install
Secure the retaining tab.
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.
Front Floor Console Rear Trim Lower Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Rear Trim Lower Panel Closeout (2) - Install
Install the right and left front floor console upper panel (1).
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Front Floor Console Rear Cover Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Front Floor Console Extension Panel - Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Rear Cover Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Front Floor Console Extension Panel - Left Side (3) - Install
Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications
Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Rear Trim Plate (1) - Install
