Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

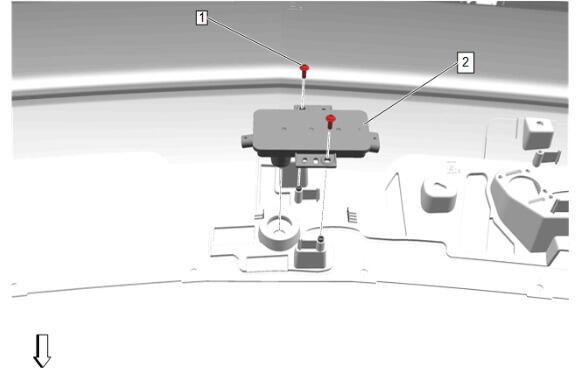

Rear Closure Hands Free Module (2) - Install

CAUTION:

Refer to Fastener Caution .

Rear Closure Hands Free Module Bolt (1) - Install and tighten [2x] - Fastener Specifications
Connect the electrical connector. [2x]
Courtesy of GENERAL MOTORS COMPANY

With the aid of an assistant, install the fascia. (1) Rear Bumper Fascia Removal and Installation
