Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Using a flat bladed plastic trim tool, release the retaining clips.
Rear Side Door Sill Garnish Molding - Left Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Reposition the rear floor panel carpet.

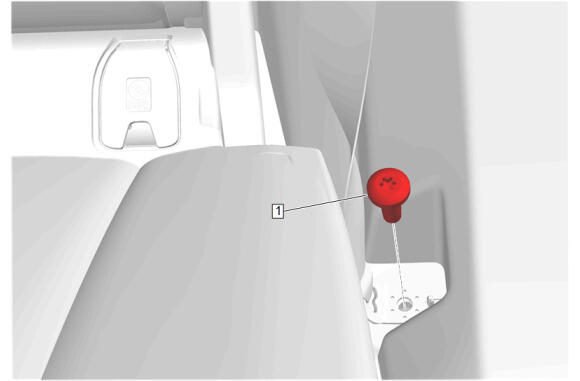

Rear Seat Belt Anchor Plate Bolt - Left Side (1) - Remove
Fold the rear seat back to the downward position.
Courtesy of GENERAL MOTORS COMPANY

Push in and slide outward, on either side of luggage shade, to disengage integral luggage spring from the quarter lower rear trim panel.
Luggage Shade (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Quarter Window Trim Finish Panel Bolt Cap (1) - Remove [2x]
Quarter Window Trim Finish Panel Bolt (2) - Remove [2x]
Pull the quarter window trim finish panel (3) toward the inside of the vehicle to disengage the clips.
Feed the seat belt through the quarter window trim finish panel (3).
Disconnect the electrical connector.
Quarter Window Trim Finish Panel (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

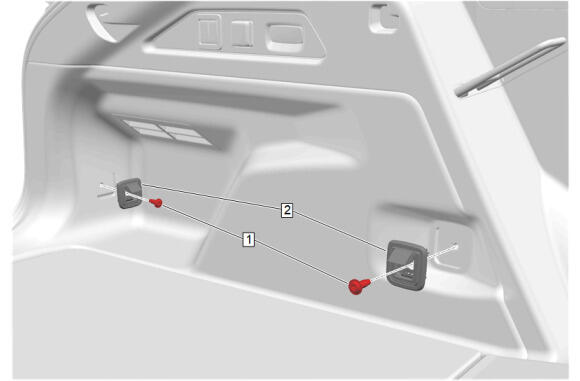

Use a small flat-bladed tool to open the 2 cargo tie down loop bolt caps to gain access to the 2 cargo tie down loop bolts.

NOTE:

Please be advised that the cargo tie down loop requires high torque efforts to remove.

Using a breaker bar and a T40 Torx bit, loosen the cargo tie down bolt.
Cargo Tie Down Loop Bolt (1) - Remove [2x]
Cargo Tie Down Loop (2) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:

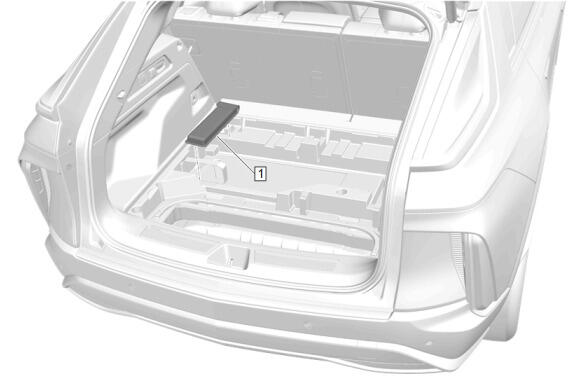

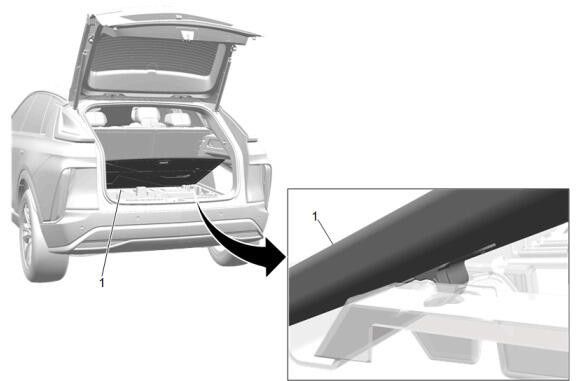

The load floor stowage compartment cover (1) is retained by two integral hooks attaching it to the rear compartment floor stowage compartment tray.

Load Floor Stowage Compartment Cover (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

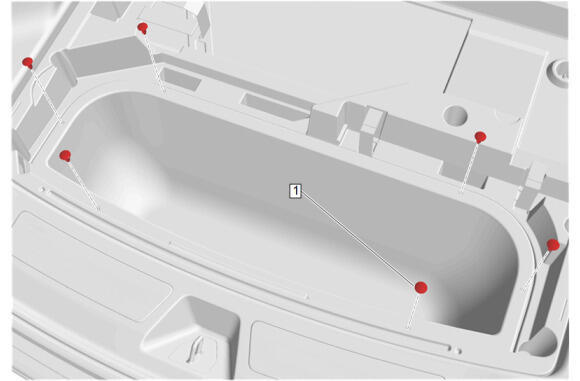

Load Floor Stowage Compartment Cover Retainer (1) - Remove [6x]
Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Floor Stowage Trim Compartment (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Tow Eye (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

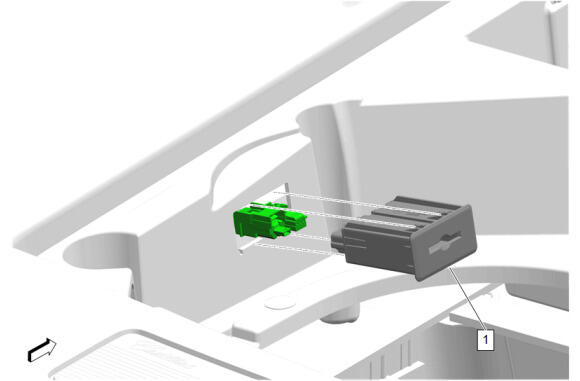

{If equipped} Using a suitable plastic trim tool, release the retaining tabs.
{If equipped} Disconnect the electrical connectors.
{If equipped} Card Reader Receptacle (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

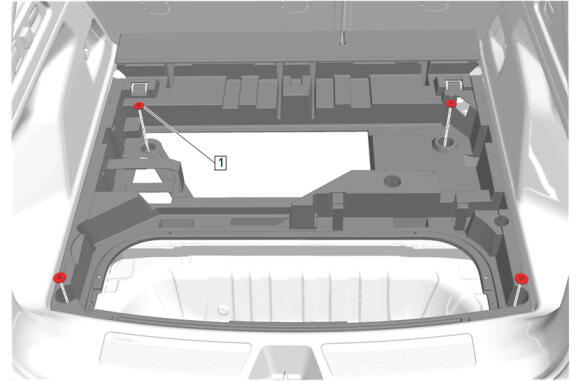

Rear Compartment Floor Stowage Compartment Retainer (1) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

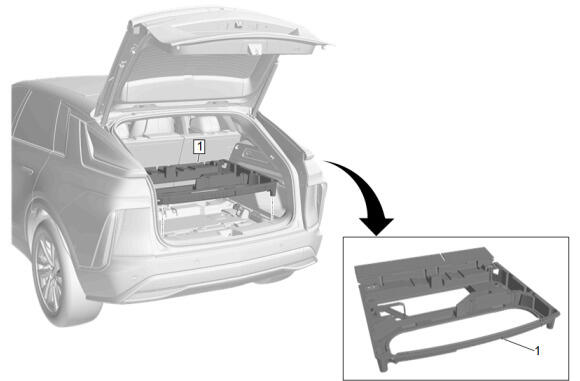

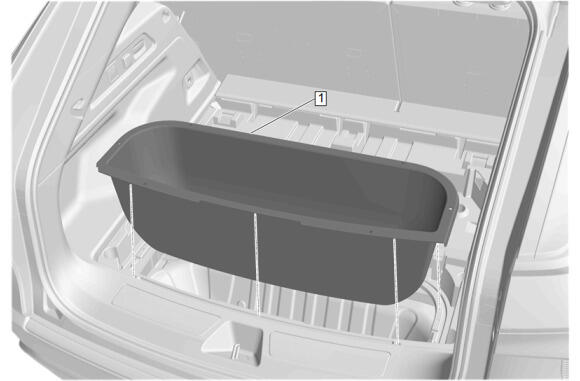

Rear Compartment Floor Stowage Compartment Tray (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Using a flat bladed plastic trim tool, release the retaining clips.

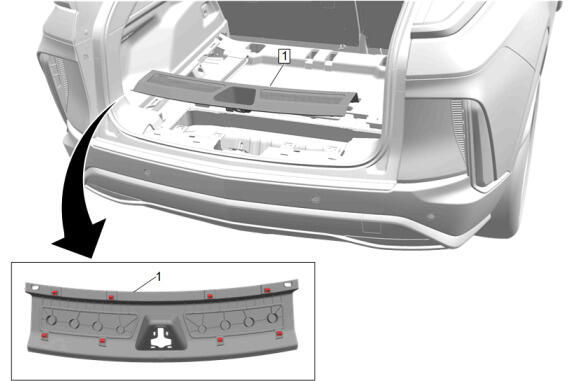

Liftgate Sill Garnish Molding (1) - Remove

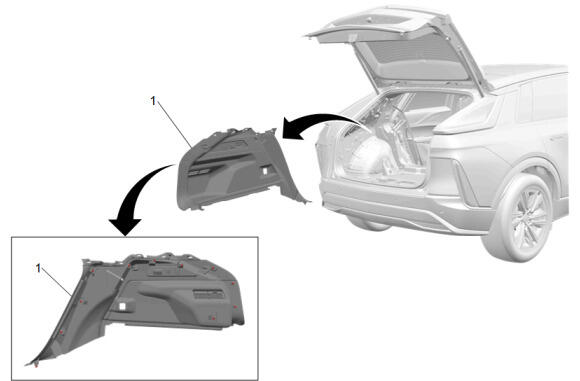

Courtesy of GENERAL MOTORS COMPANY

Disconnect the electrical connectors.
Quarter Lower Rear Trim Panel - Left Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

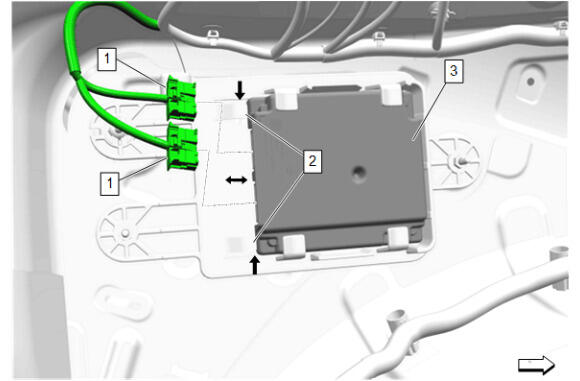

Disconnect the electrical connectors (1) and reposition the wiring harness as necessary.
Depress the retaining tabs (2) on the bracket and slide the image processing module (3) rearward to remove.
Image Processing Module (3) - Remove
