Removal Procedure

Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Liner Bolt (1) - Remove [10x]
Courtesy of GENERAL MOTORS COMPANY

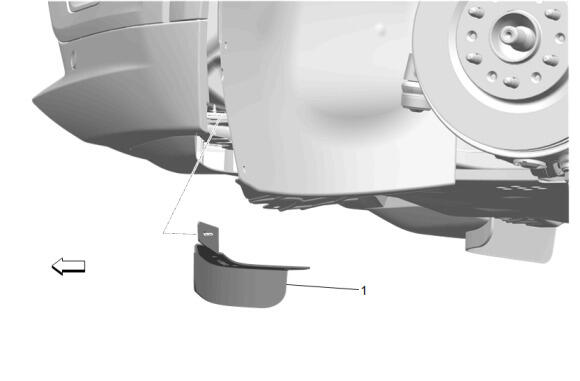

Front Tire Front Air Deflector (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

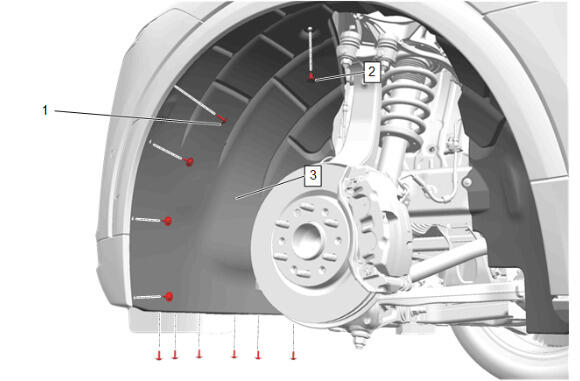

Front Wheelhouse Liner Retainer (2) - Remove
Front Wheelhouse Liner (3) - Reposition
Courtesy of GENERAL MOTORS COMPANY

Disconnect the electrical connector.

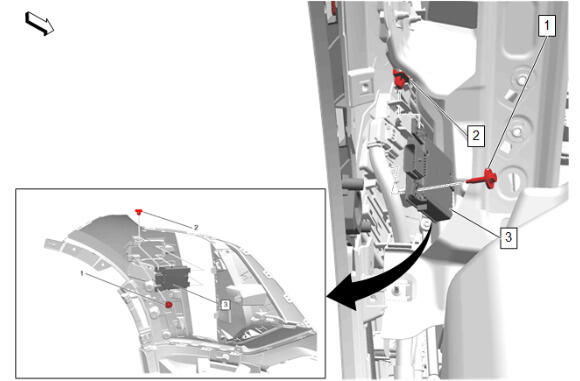

Short Range Radar Sensor Bolt (1) - Remove
Side Object Sensing Alert Module Clip (2) - Remove

NOTE:

Observe the mounting location of the short range radar sensor to ensure proper reinstallation.
