Removal Procedure

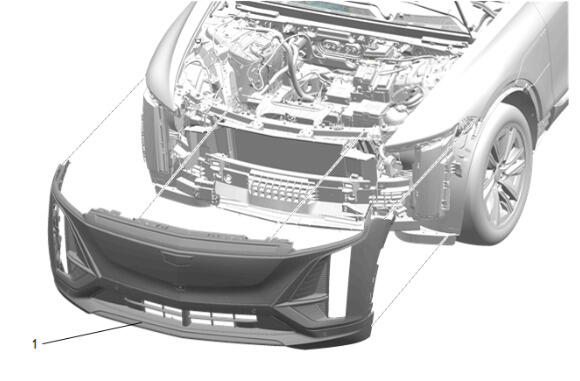

  1. GM5925555Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, remove the fascia. (1) Front Bumper Fascia Removal and Installation

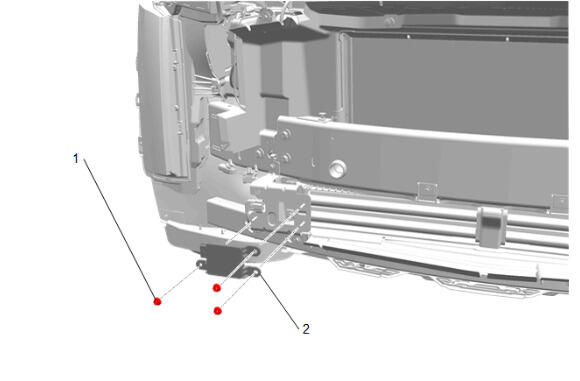

  2. GM5926776Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.

  3. Forward Range Radar Sensor Nut (1) - Remove [3x]
  4. Forward Range Radar Sensor (2) - Remove
