Below Center Console Components

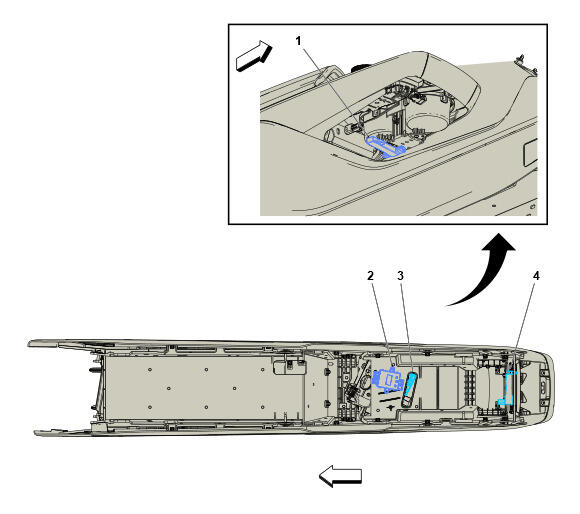

GM6419265Courtesy of GENERAL MOTORS COMPANY
Items
1. T10UA Low Frequency Console Antenna T10UA Low Frequency Console Antenna
2. X92G USB 2 Port Receptacle X92G USB 2 Port Receptacle X1 , or X92G USB 2 Port Receptacle X2 , or X92G USB 2 Port Receptacle X3 , or X92G USB 2 Port Receptacle X4
3. K183 UHF Short Range Low Energy Remote Control Access Transceiver (BOR / BOY) K183 UHF Short Range Low Energy Remote Control Access Transceiver (BOR / BOY)
4. T10KA Low Frequency Console Number 2 Antenna T10KA Low Frequency Console Number 2 Antenna
