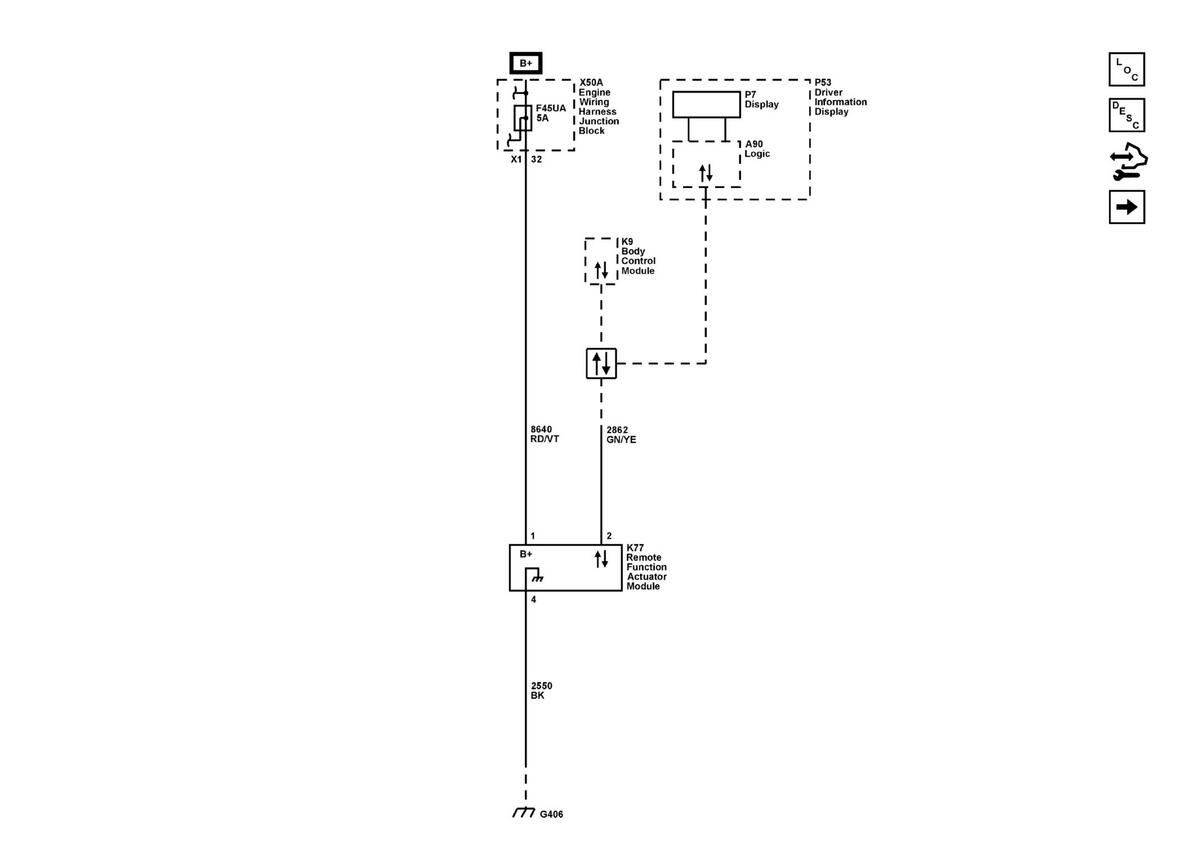

Home >> Cadillac >> 2023 >> LYRIQ Debut Edition >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry And Remote Functions >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics >> Keyless Entry - Active
