Inspection Procedure

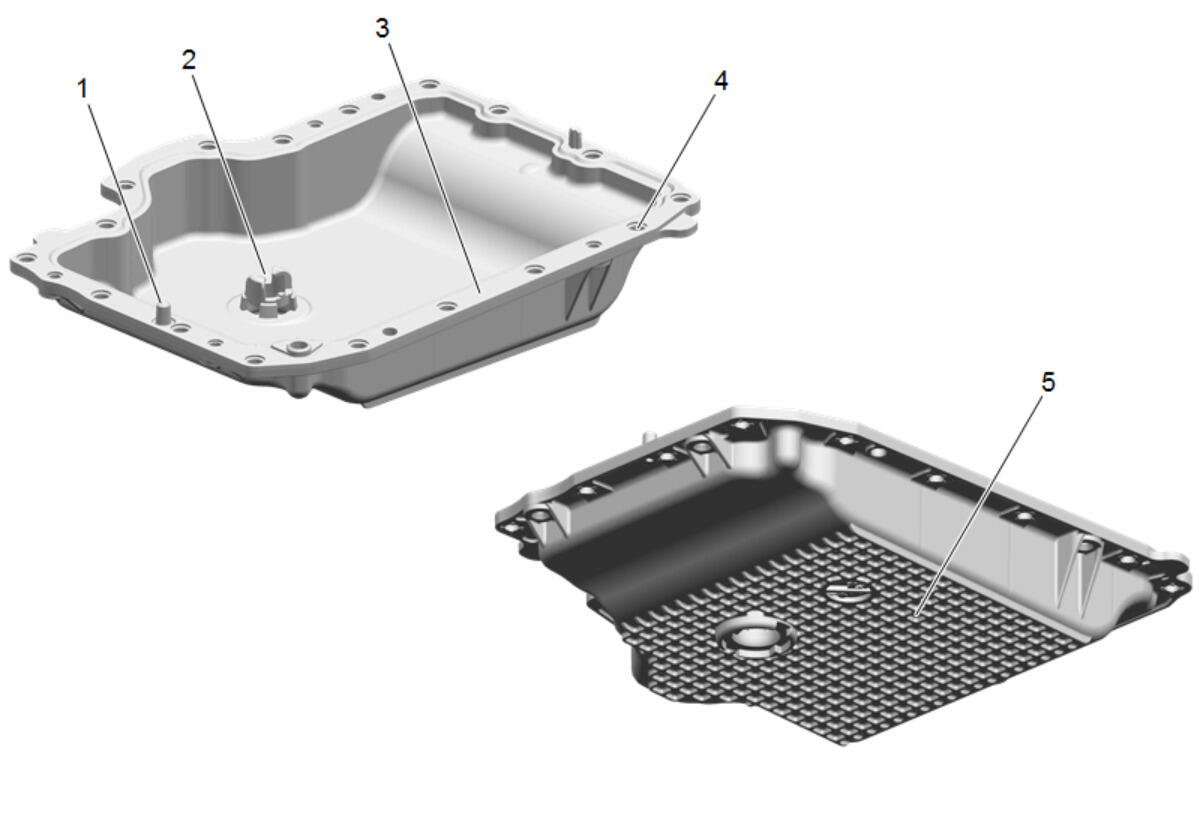

  1. GM5389875Courtesy of GENERAL MOTORS COMPANY

    Inspect the oil pan for the following conditions:

    • Damage to the brace mounting bosses (1)
    • Damage to the oil pan drain plug hole (2)
    • Gouges or damage to the oil pan sealing surfaces (3)
    • Damage to the oil pan mounting holes (4)
  2. Repair or replace the oil pan or oil pan components as necessary.
