Installation Procedure

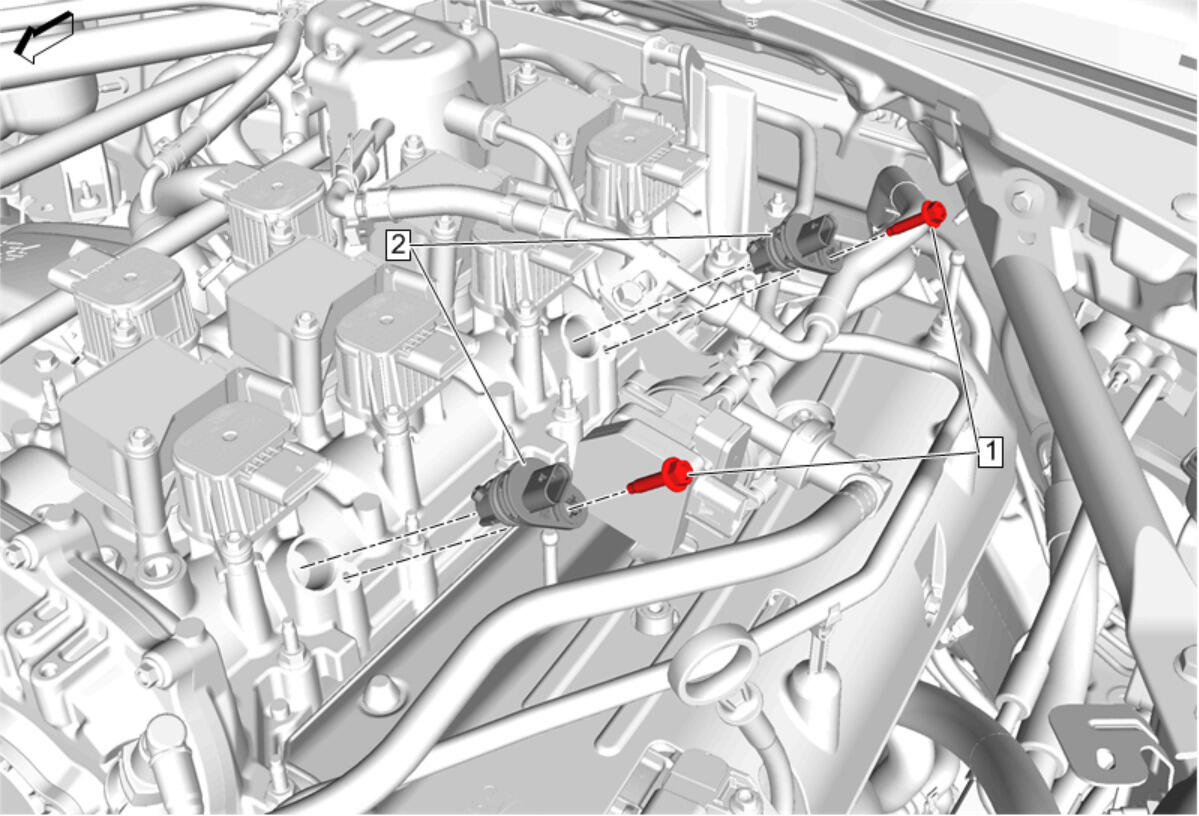

GM5395520Courtesy of GENERAL MOTORS COMPANY
  1. Clean and inspect O-Ring and apply engine oil. Adhesives, Fluids, Lubricants, and Sealers
  2. Camshaft Intake Lobe Sensor (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Camshaft Intake Lobe Sensor Bolt (1) - Install and tighten - Fastener Specifications
  4. Connect the camshaft intake lobe sensor electrical connector.
  5. GM5432174Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install

  6. GM5432171Courtesy of GENERAL MOTORS COMPANY

    Push down on the front of the intake manifold cover (2).

  7. Intake Manifold Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
  8. Install the oil fill cap.
