Removal Procedure
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Partially drain the cooling system. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LSY with V03 Static Fill) , or Cooling System Draining and Filling (LSY with V03 GE 47716) .
- Remove the oil fill cap.

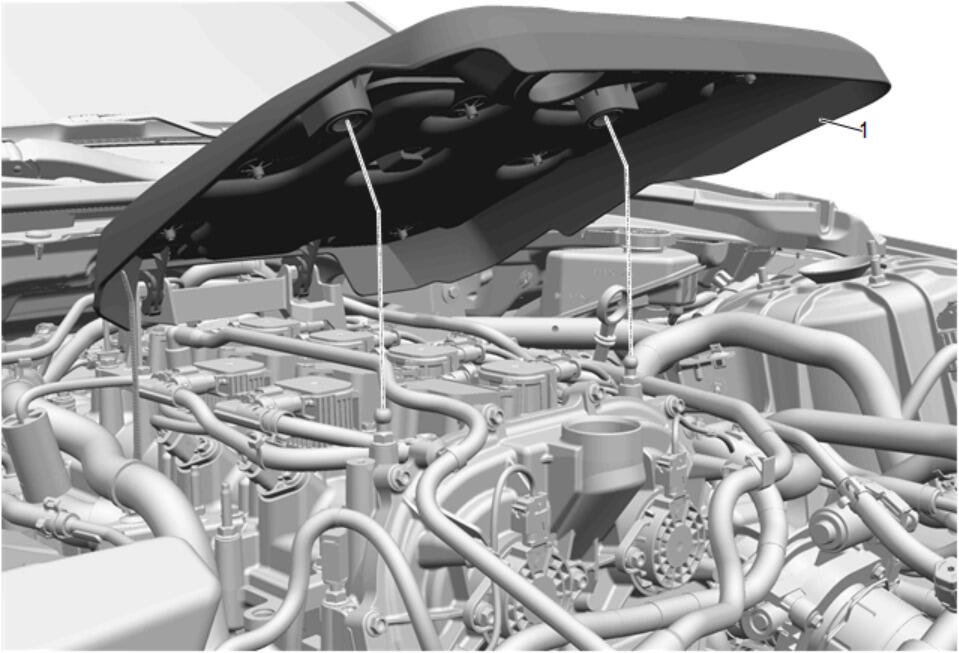

- Lift up on the front of the intake manifold cover (1).

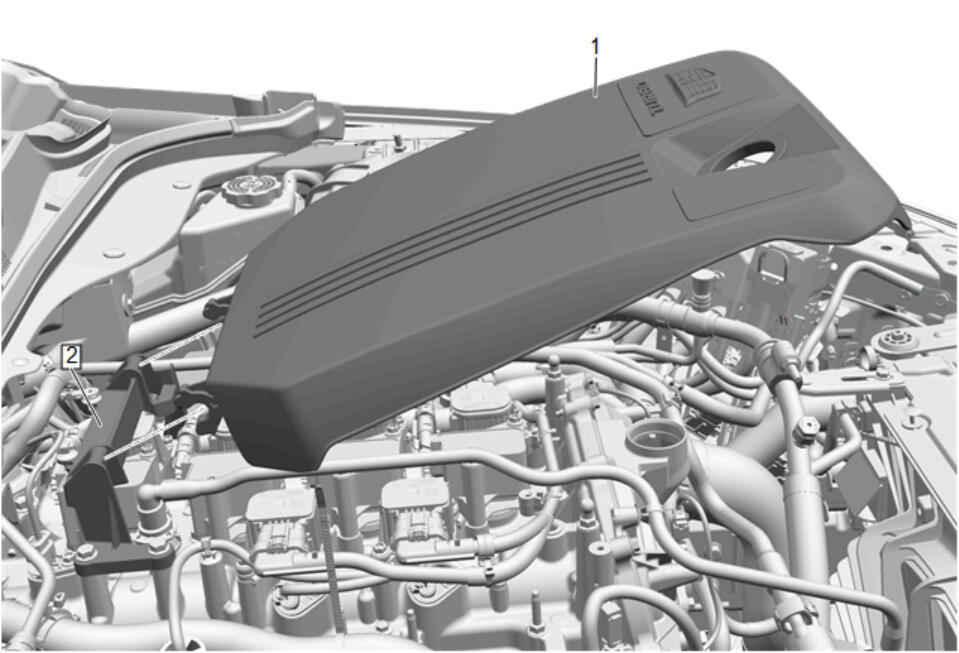

Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Remove
Using an appropriate tool, rotate the drive belt tensioner (1) counterclockwise and hold tension.

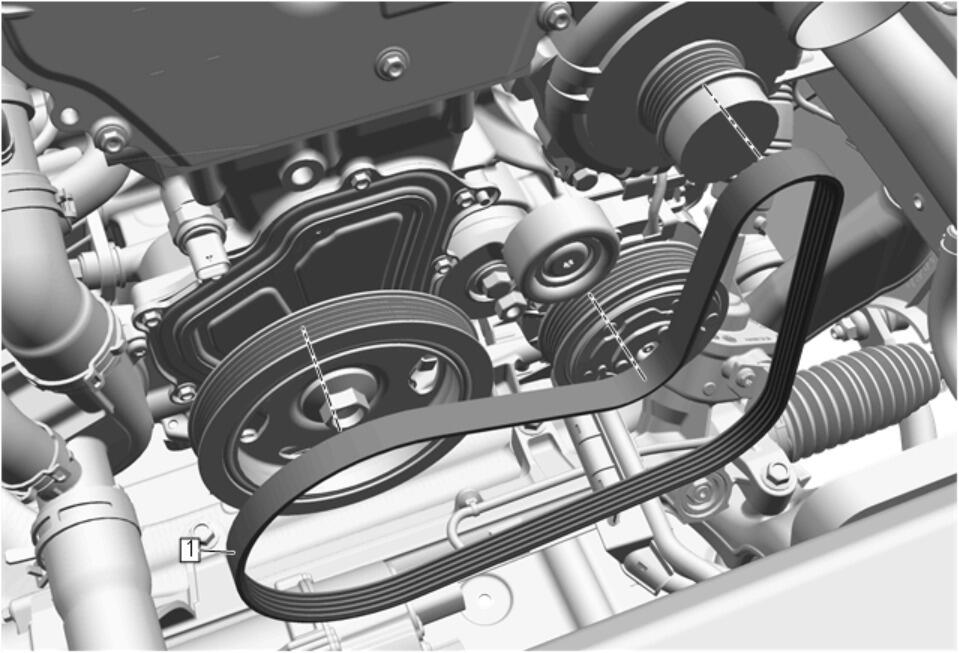

Accessory Drive Primary Belt (1) - Remove
- Slowly release tension on the drive belt tensioner.

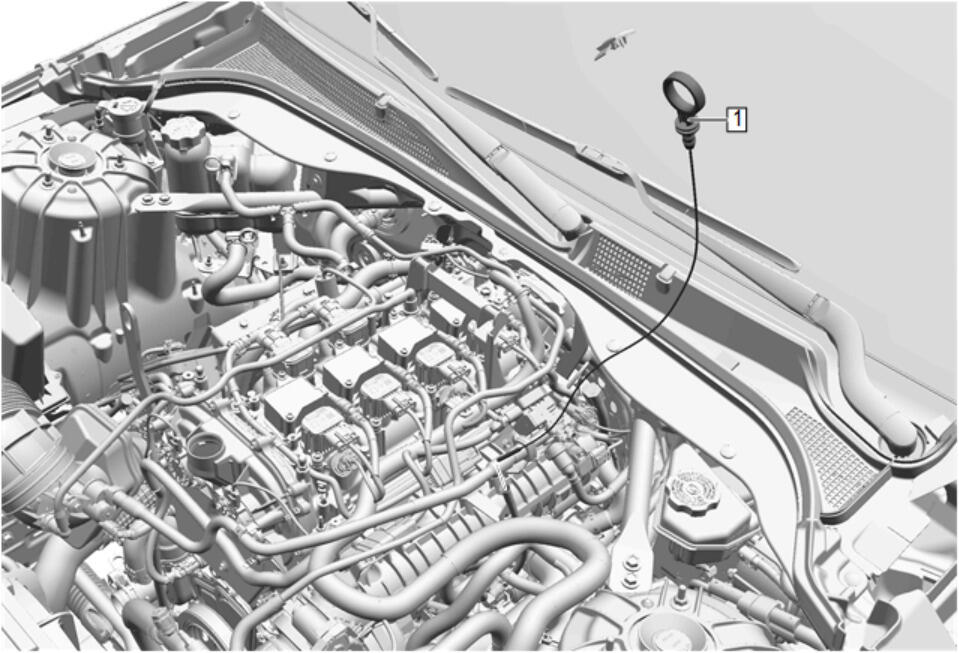

Oil Level Indicator (1) - Remove

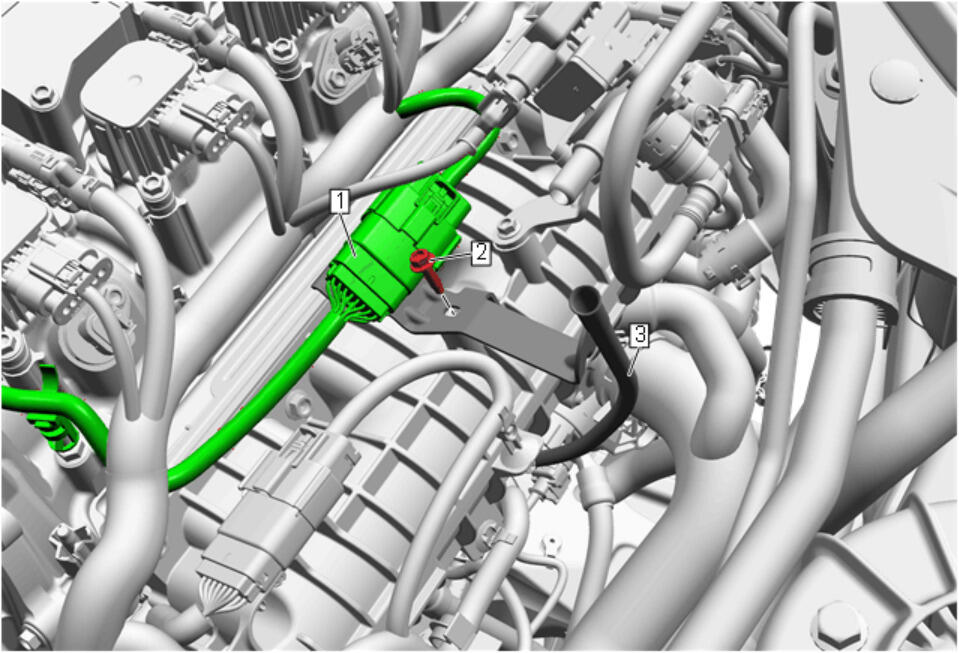

Electrical Connector (1) @ Oil Level Indicator Tube (3) - Unclip
- Oil Level Indicator Tube Bracket Bolt (2) - Remove

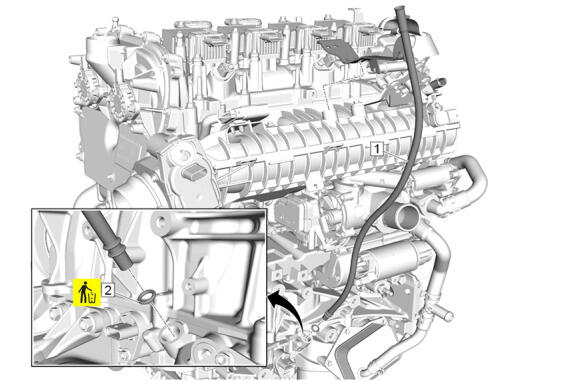

Oil Level Indicator Tube (1) - Remove
- Oil Level Indicator Tube Seal (2) - Remove and DISCARD
- Raise and support the vehicle. Lifting and Jacking the Vehicle

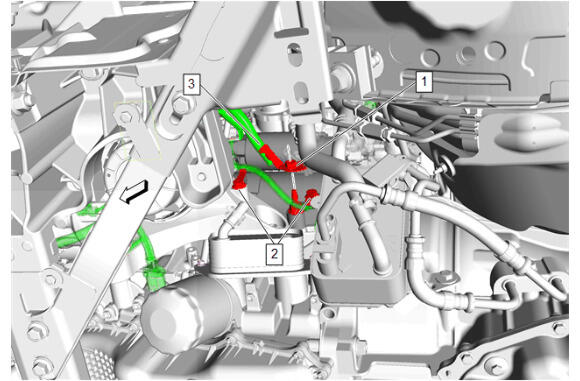

Battery Negative Cable Nut (1) @ Starter Stud - Remove
- Engine Wiring Harness Retainer (2) - Disengage [2x]
- Auxiliary Generator Battery Jumper Cable (3) - Remove

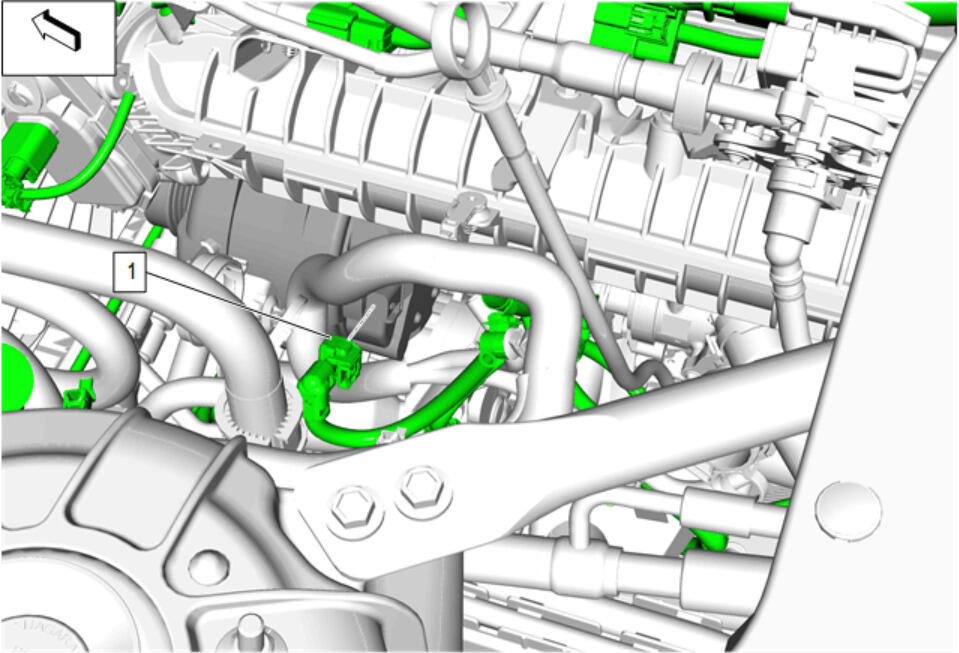

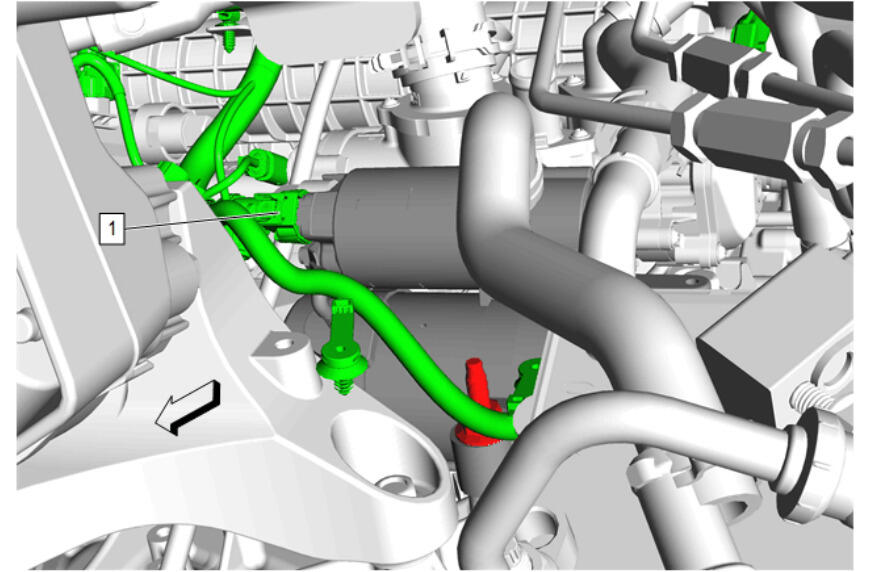

Electrical Connector (1) - Disconnect
Battery Positive Cable Nut (1) @ Starter Solenoid - Remove
- Auxiliary Generator Battery Jumper Cable (2) - Remove

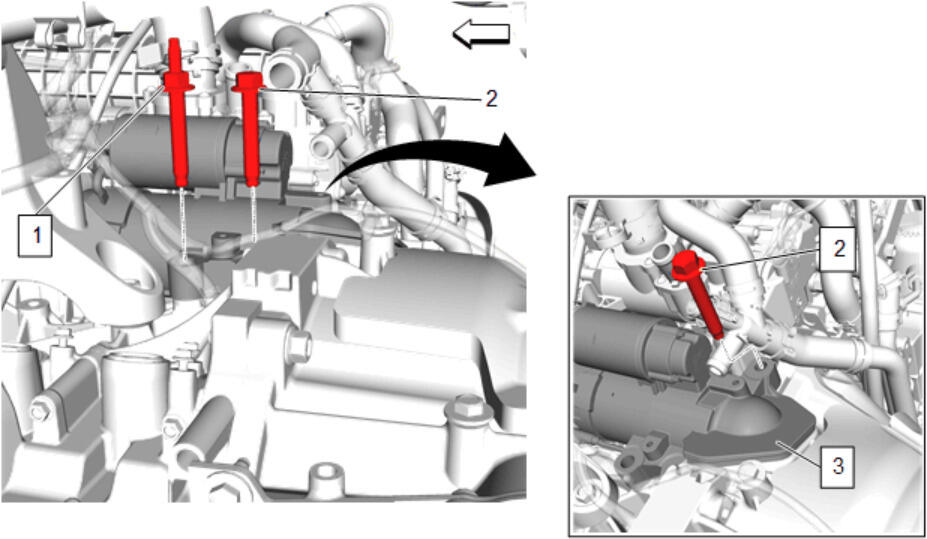

Starter Stud (1) - Remove
- Starter Bolt (2) - Remove [2x]
- Starter (3) - Remove
- NOTE:
The timing pin feature must be retracted EN-52476 Flywheel Lock and Alignment Tool (1) during the balancer bolt removal.

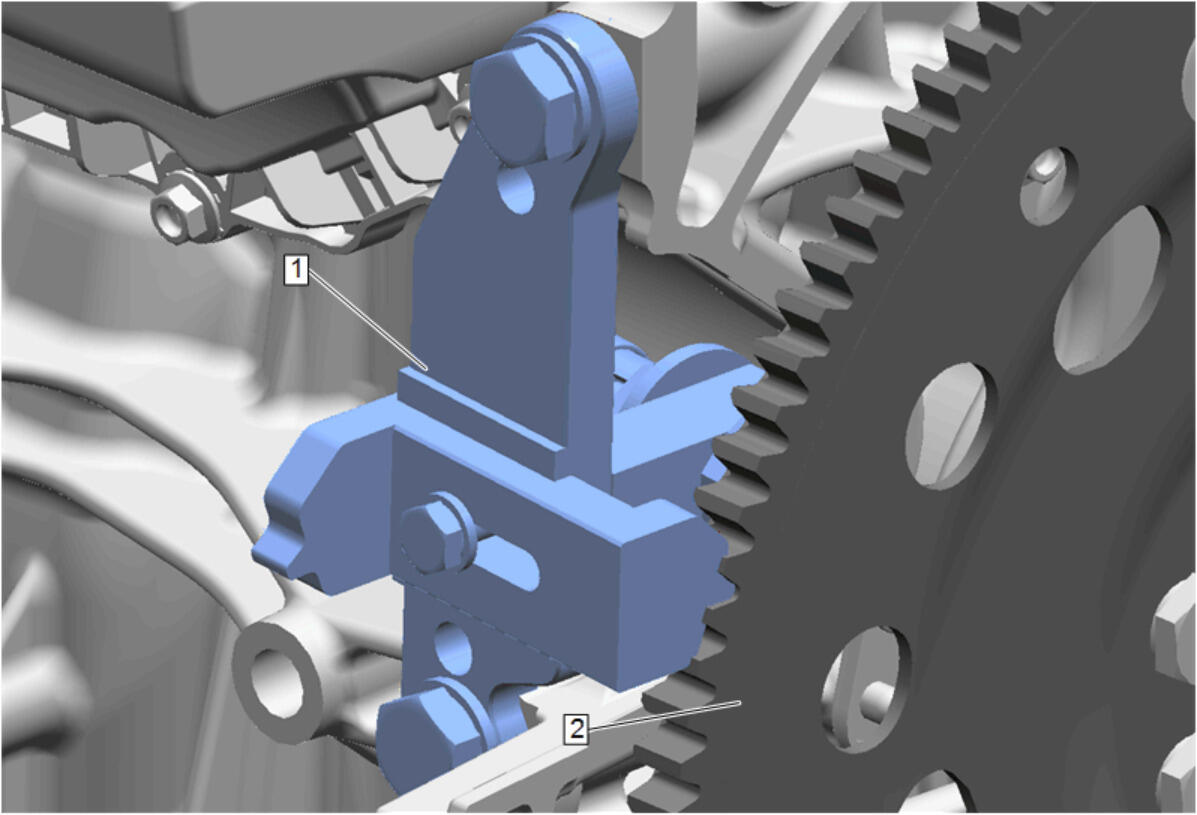

Install the EN-52476 Flywheel Lock and Alignment Tool (1) to the automatic transmission flexplate.
- Lower the vehicle.

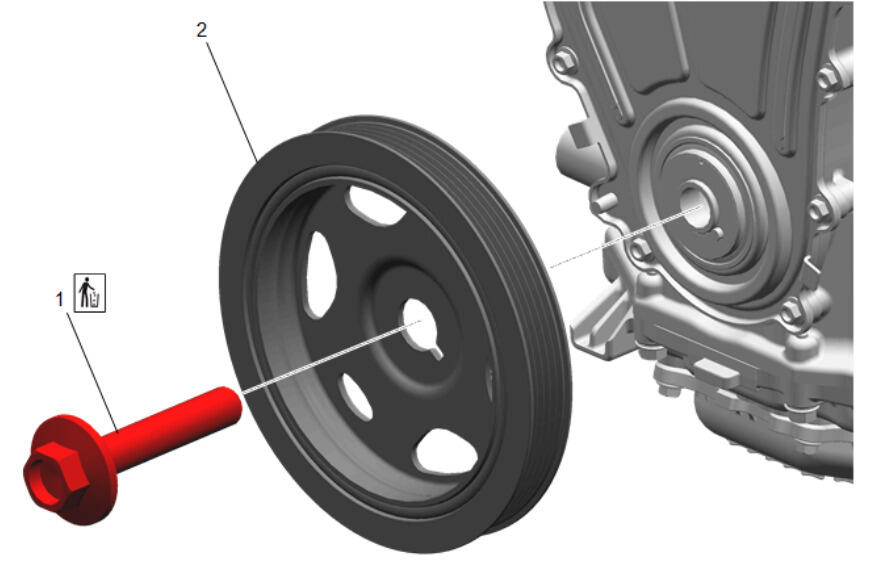

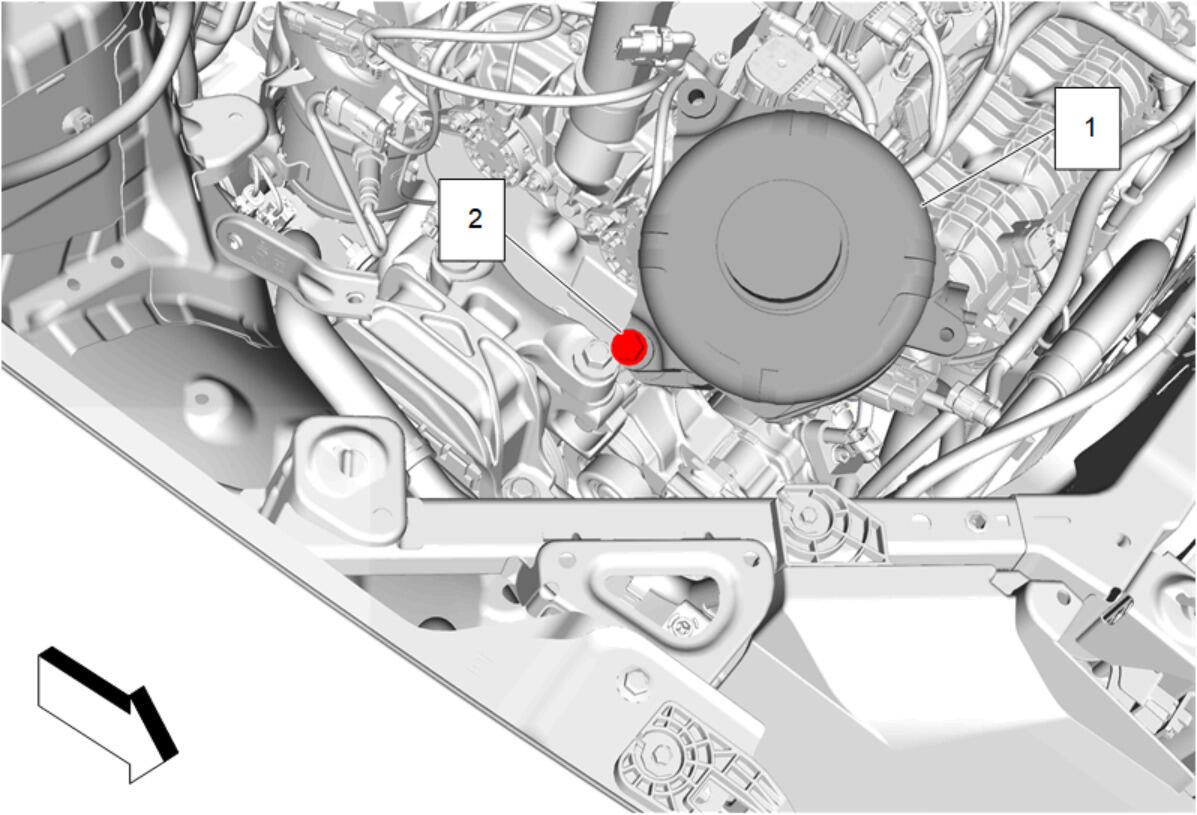

Crankshaft Balancer Bolt (1) - Remove and DISCARD
- Crankshaft Balancer (2) - Remove

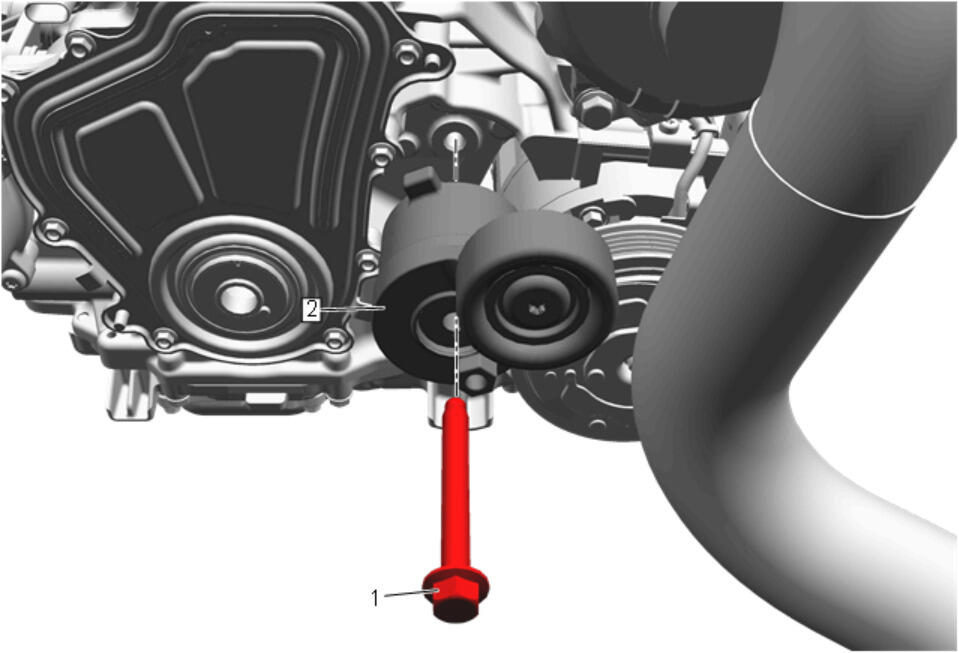

Drive Belt Tensioner Bolt (1) - Remove
- Drive Belt Tensioner (2) - Reposition

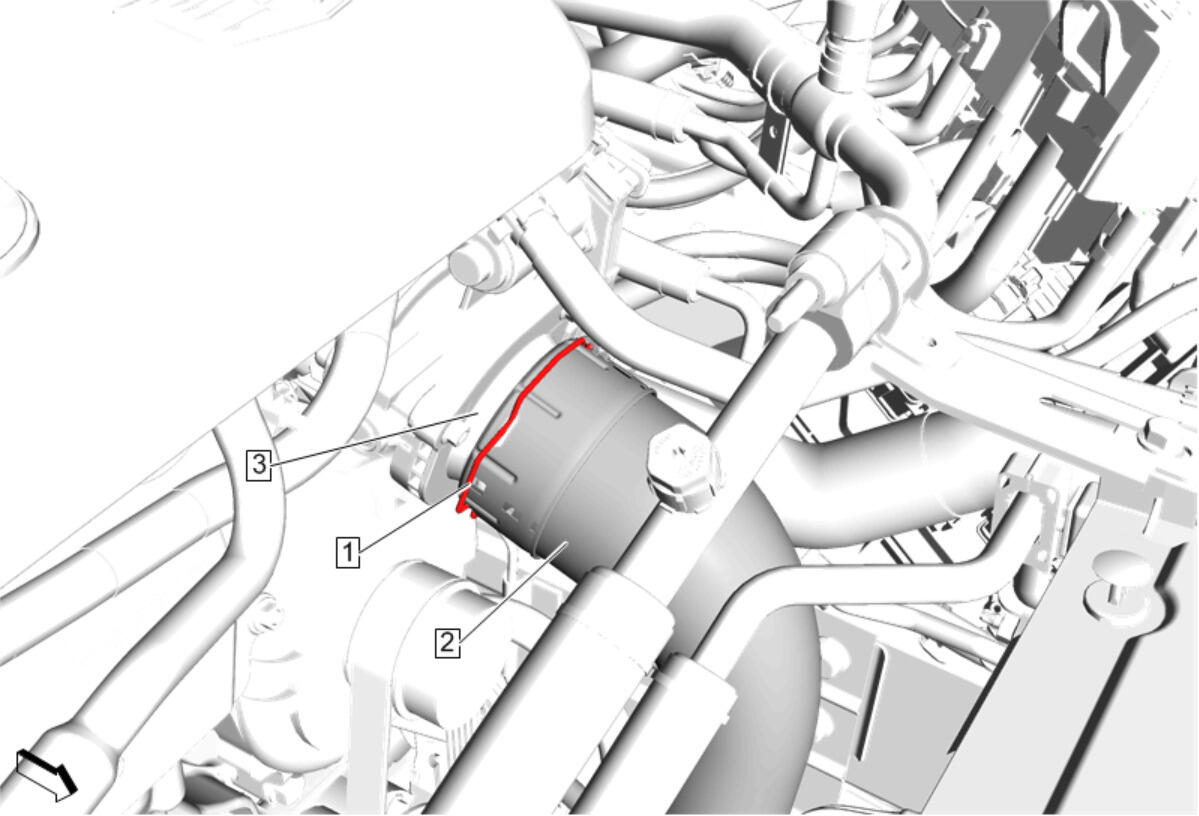

Retainer Spring (1) - Release
- Charge Air Cooler Outlet Air Tube (2) @ Throttle Body (3) - Remove

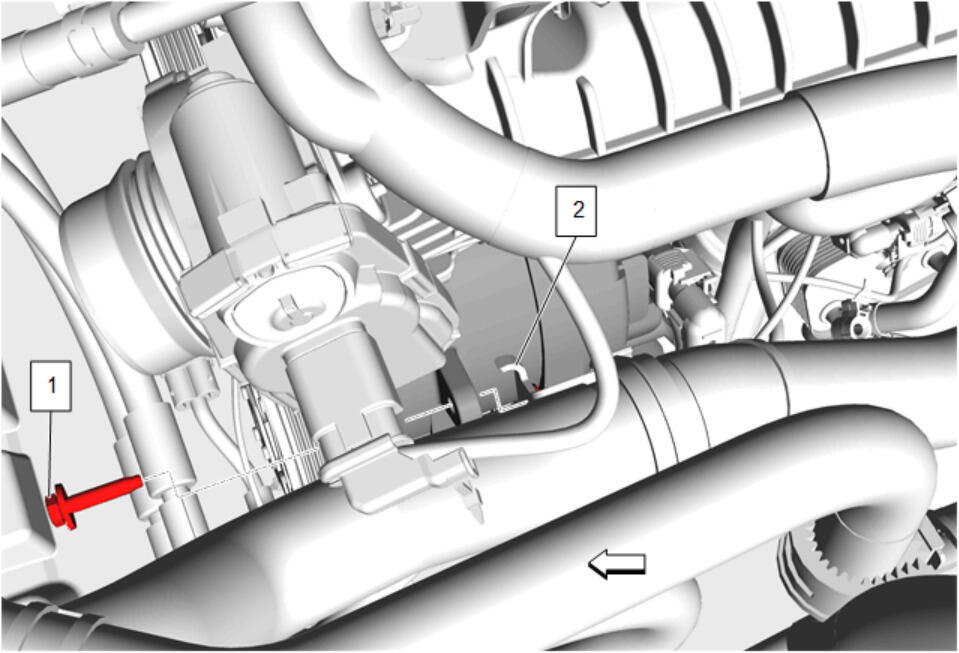

Radiator Inlet Hose Bracket Bolt (1) - Remove
- Radiator Inlet Hose Bracket (2) - Reposition away
- NOTE:
Intake manifold is shown transparent for graphic clarity.
Battery Positive Cable Nut (1) @ Generator - Remove
- Auxiliary Generator Battery Jumper Cable (2) - Remove
Electrical Connector (1) - Disconnect

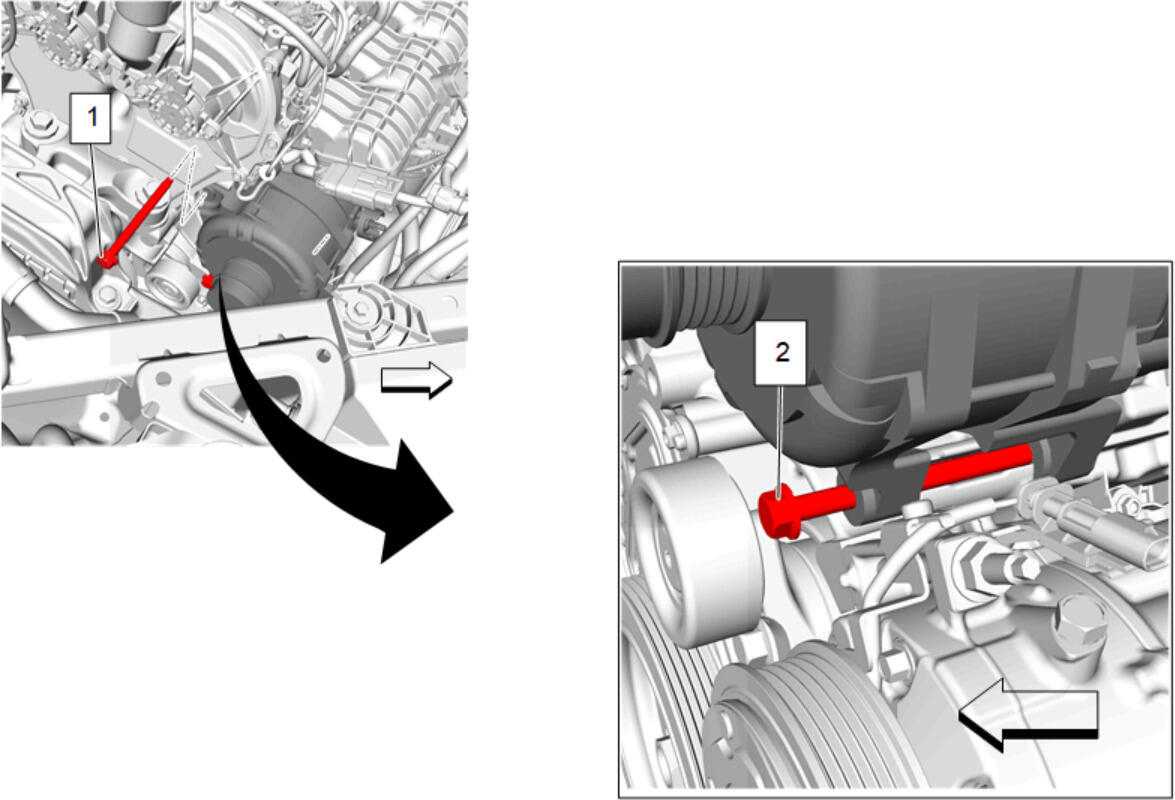

Remove the upper generator bolt (1).
- Loosen the lower generator bolt (2) until it is disengaged from the generator bracket.
Remove the generator (1).

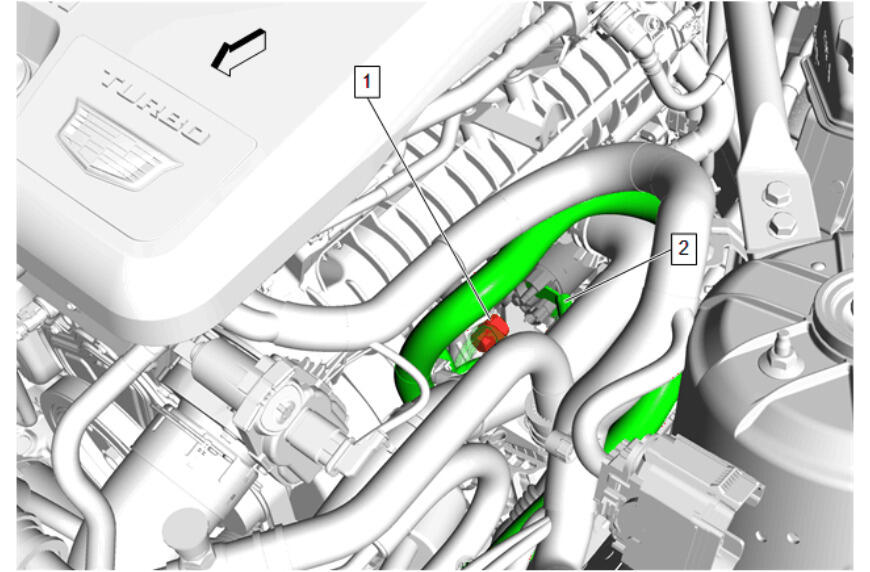

Disconnect the electrical connector.
- Engine Coolant Temperature Sensor (1) - Remove
