Installation Procedure

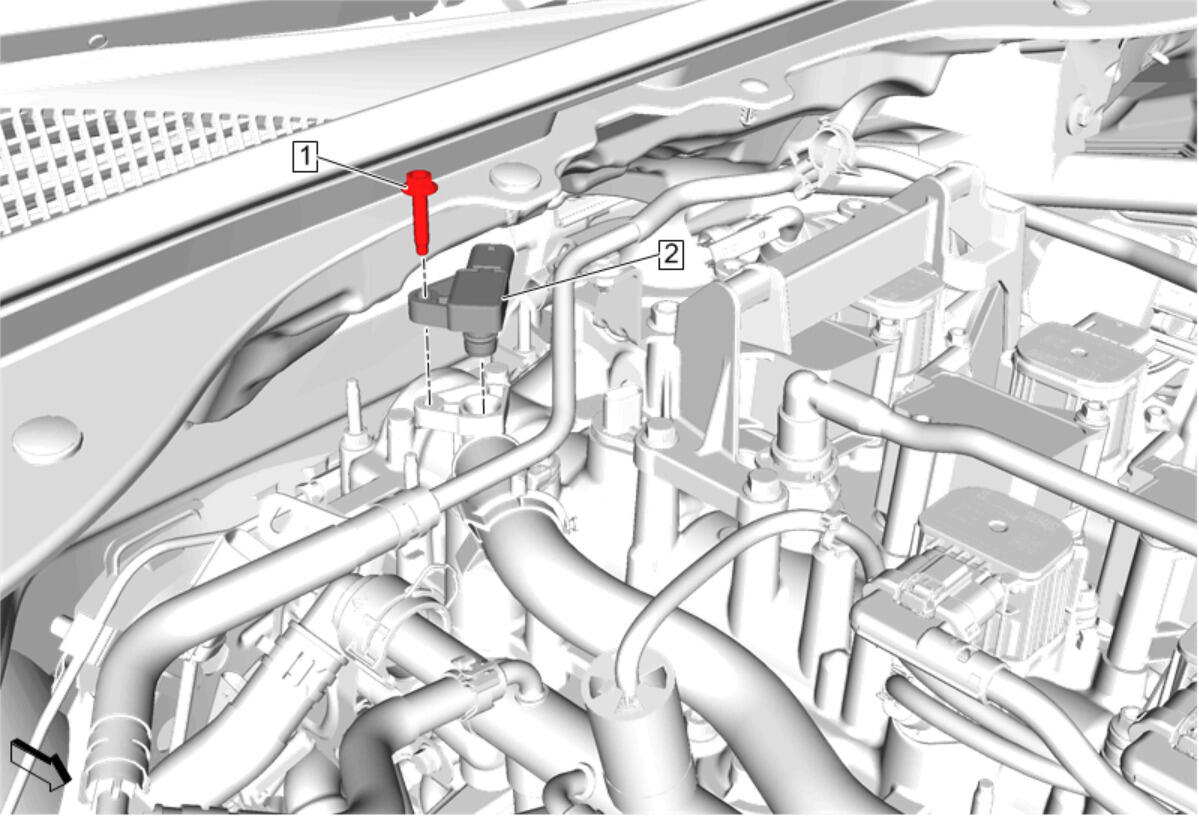

  1. GM5299688Courtesy of GENERAL MOTORS COMPANY
  2. Crankcase Pressure Sensor (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  4. Crankcase Pressure Sensor Bolt (1) - Install and tighten - Fastener Specifications
  5. Connect the electrical connector.
