Installation Procedure
Clean and inspect O-Ring and apply clean engine oil. Adhesives, Fluids, Lubricants, and Sealers

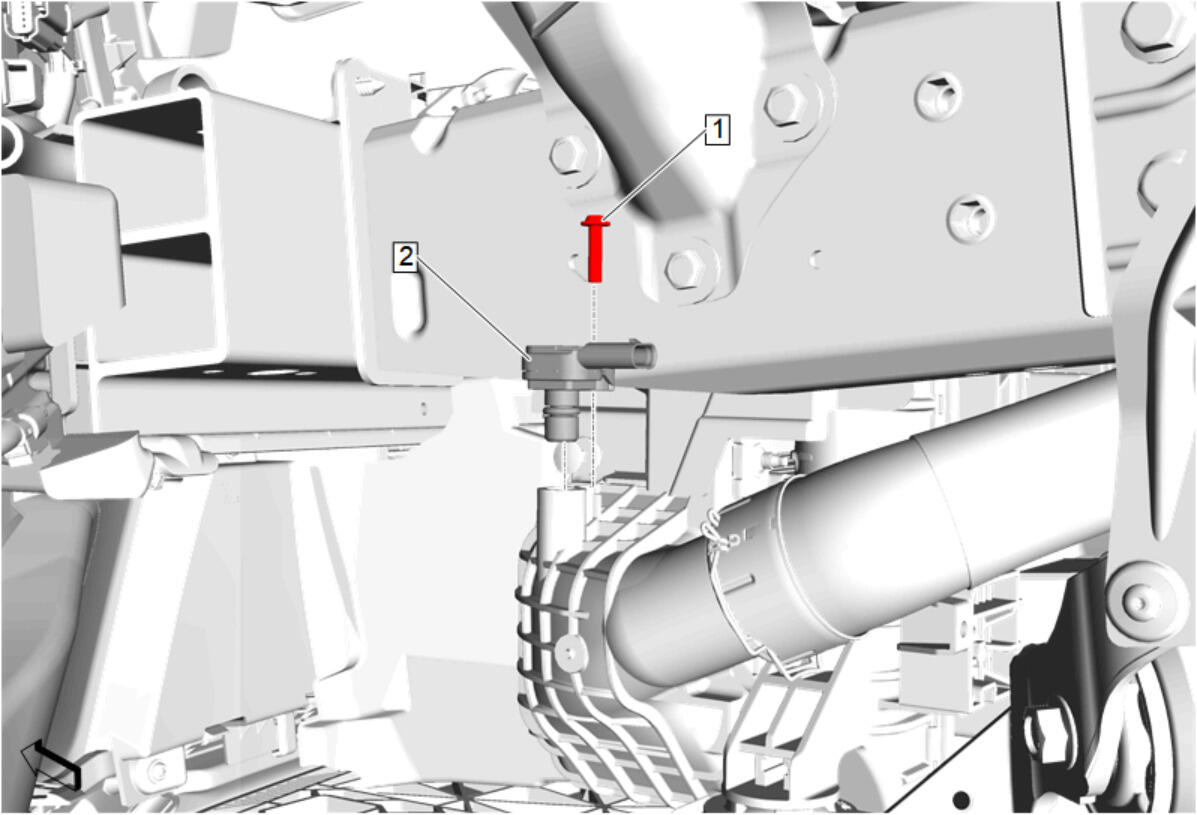

- Throttle Inlet Absolute Pressure Sensor (2) - Install
- Throttle Inlet Absolute Pressure Sensor Bolt (1) - Install
- Connect the electrical connector.

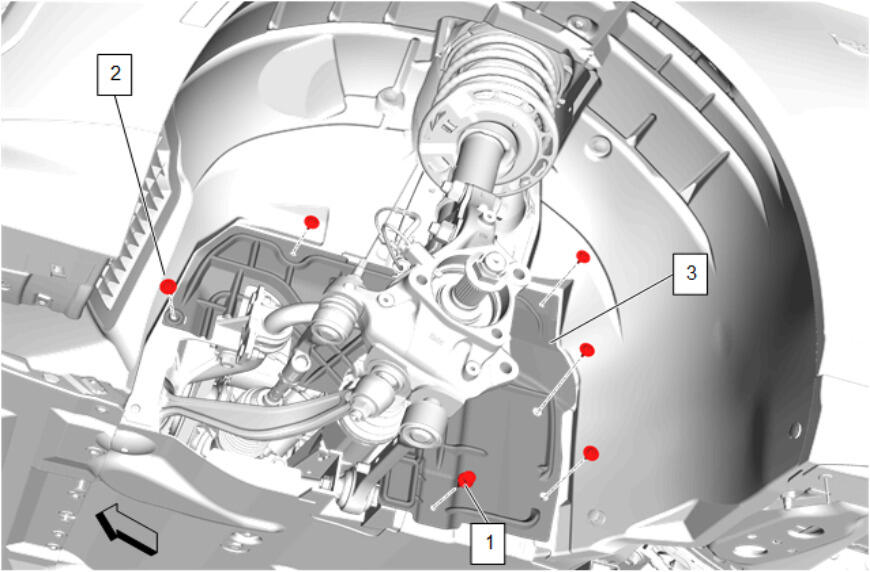

Front Wheelhouse Liner (3) - Install
- Front Wheelhouse Liner Retainer (2) - Install [4x]
- Front Wheelhouse Liner Screw (1) - Install and tighten [7x] - Fastener Specifications

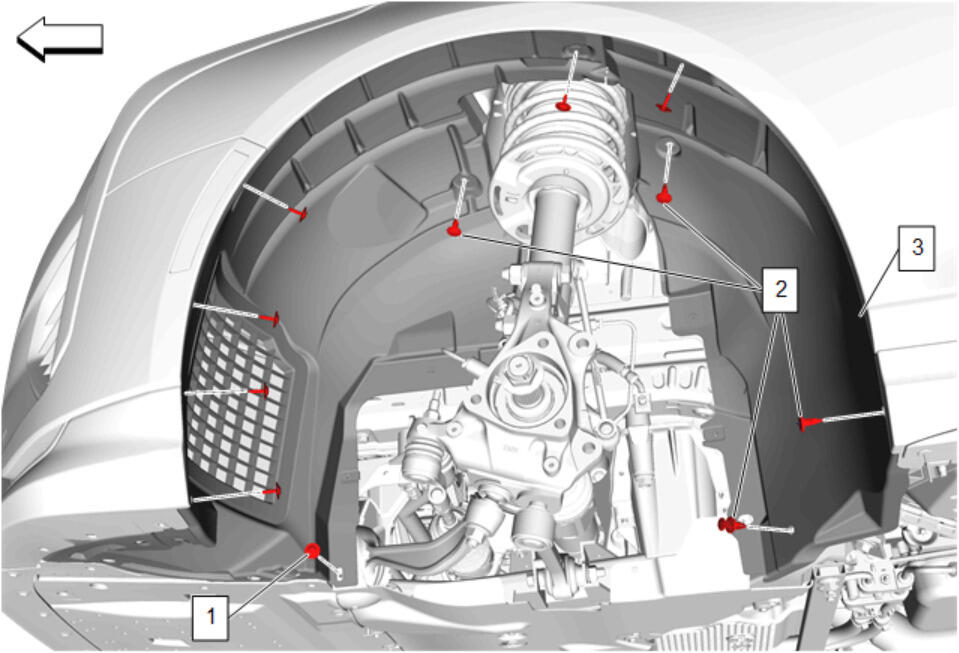

Engine Front Splash Shield (3) - Install
- Engine Front Splash Shield Bolt (2) - Install and tighten [5x] - Fastener Specifications
- Retainer (1) - Install
- Install the left front tire and wheel assembly. Tire and Wheel Removal and Installation

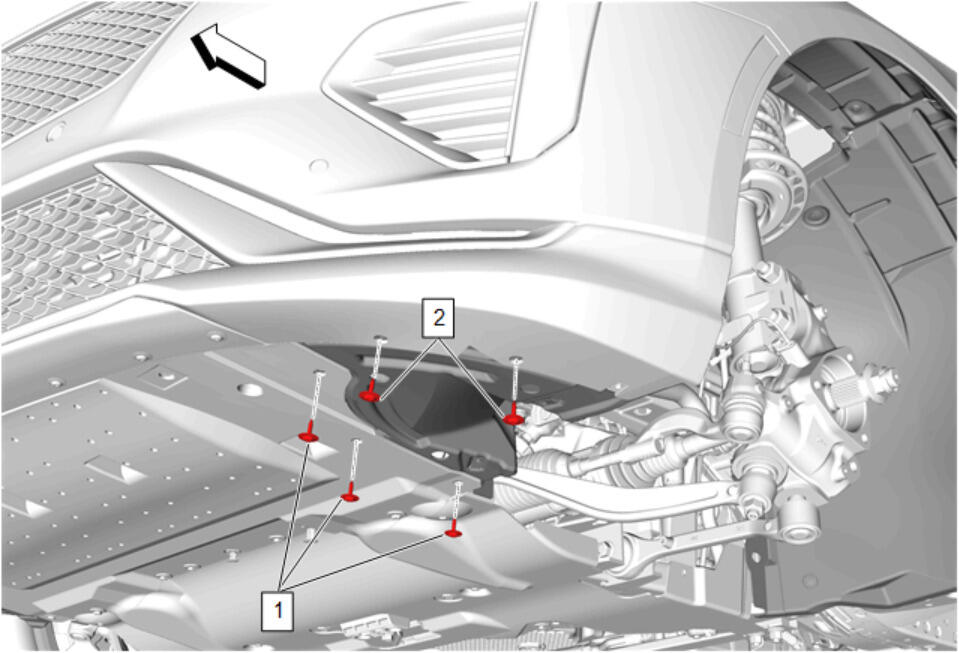

Front Bumper Fascia Bolt (2) - Install and tighten [2x] - Fastener Specifications
- Front Bumper Fascia Air Deflector Screw (1) - Install and tighten [3x] - Fastener Specifications
Front Tire Front Air Deflector (2) - Install
- Front Tire Front Air Deflector Bolt (1) - Install and tighten [4x] - Fastener Specifications
- Lower the vehicle.

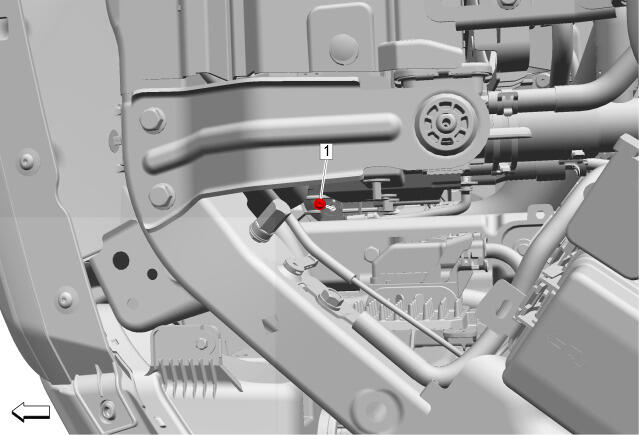

Throttle Inlet Absolute Pressure Sensor Bolt (1) - Tighten - Fastener Specifications
NOTE:
The bolt must be loosened and torqued with a long extension from top side along the opening next to the radiator.
CAUTION:
Refer to Fastener Caution .
