Front View Driver Information Camera Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front View Camera Replacement

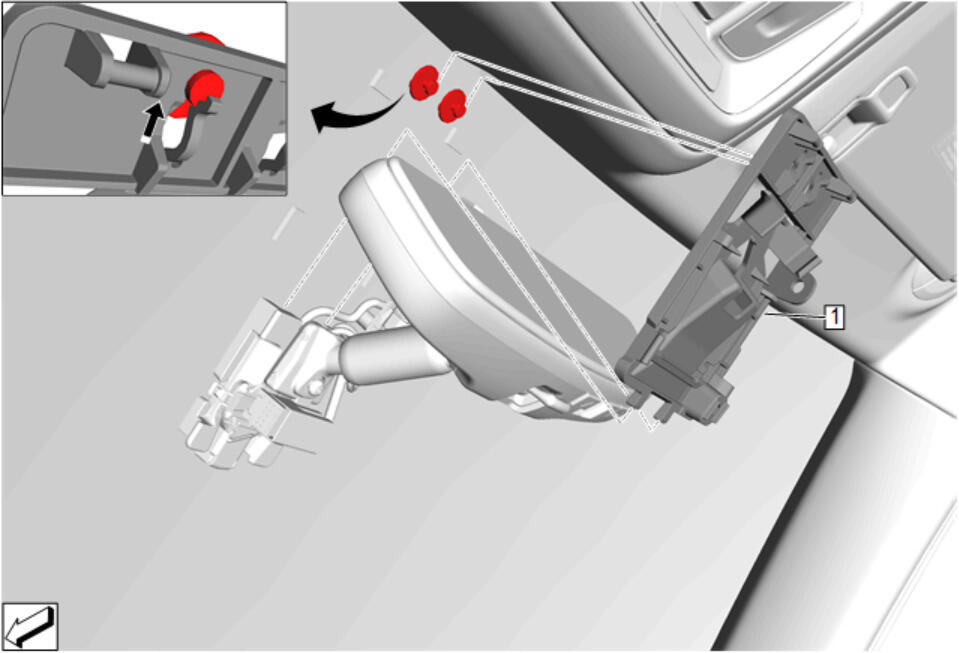

1	Front View Driver Information Camera Bracket NOTE: Do Not remove or service the sensor farm pins. Procedure Release the retaining tabs and slide the bracket upward to disengage pins. Gently pull from windshield. Ensure the inside of the windshield is clean before reinstalling the bracket.

Callout

Component Name

Front View Driver Information Camera Bracket

NOTE:

Do Not remove or service the sensor farm pins.

Procedure

Release the retaining tabs and slide the bracket upward to disengage pins. Gently pull from windshield.
Ensure the inside of the windshield is clean before reinstalling the bracket.
