Installation Procedure

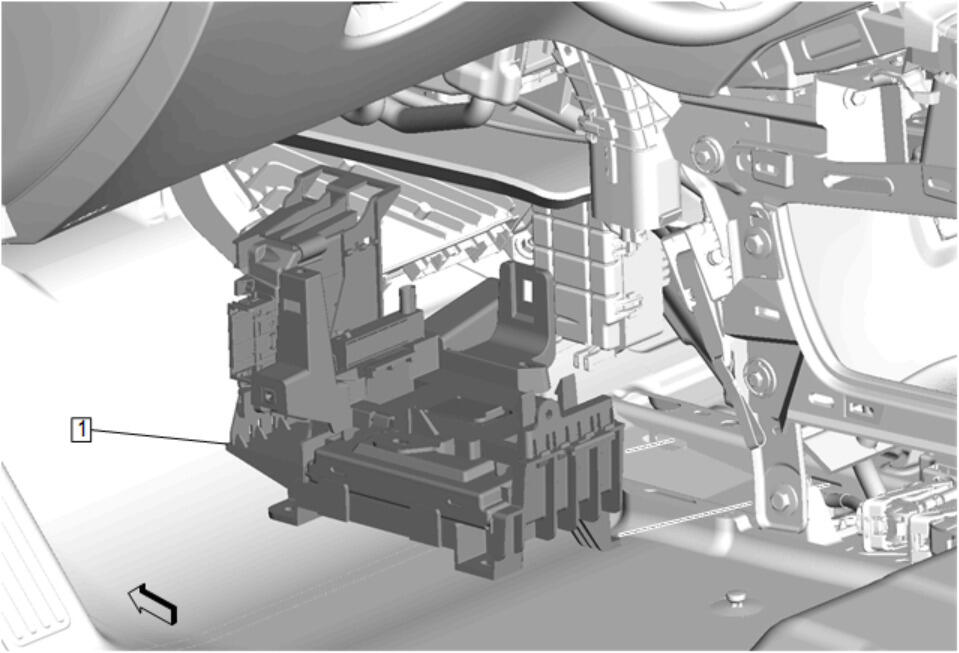

GM5240023Courtesy of GENERAL MOTORS COMPANY
  1. Body Control Module Bracket (1) - Install

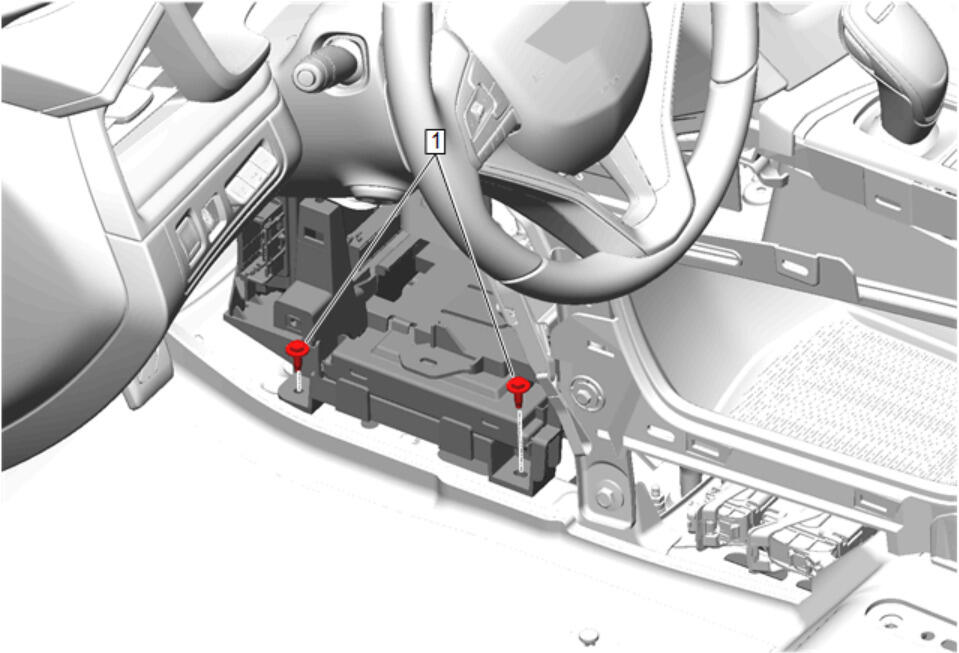

    GM5240022Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

  2. Body Control Module Bracket Bolt (1) - Install and tighten [2x] 9N.m (80 lb in)

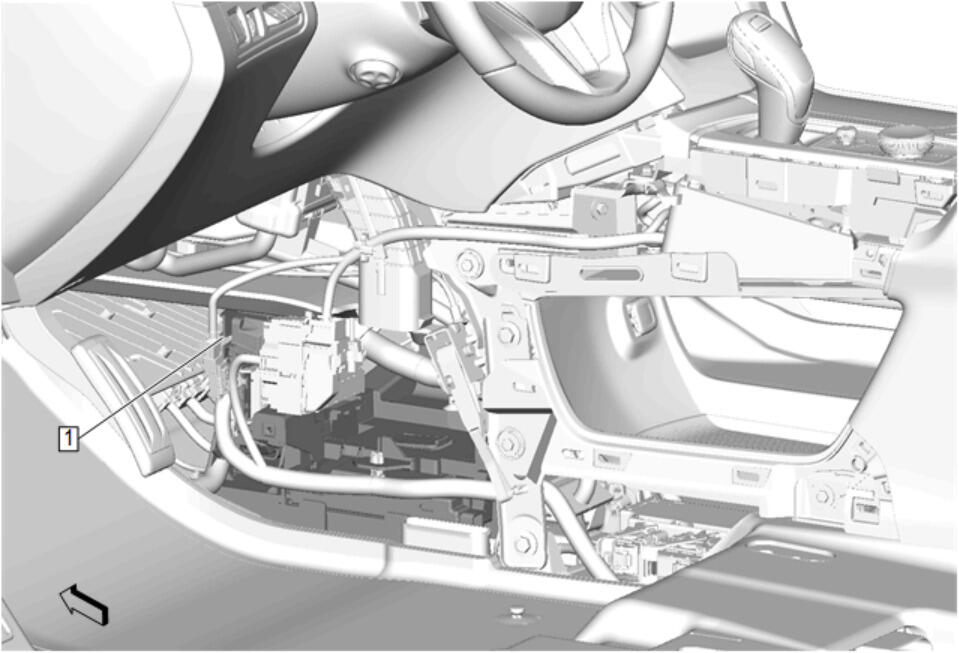

    GM5240021Courtesy of GENERAL MOTORS COMPANY
  3. Connect the harness to the body control module bracket (1).
  4. Install the floor rear air outlet duct adapter. Floor Rear Air Outlet Duct Replacement - Left Side

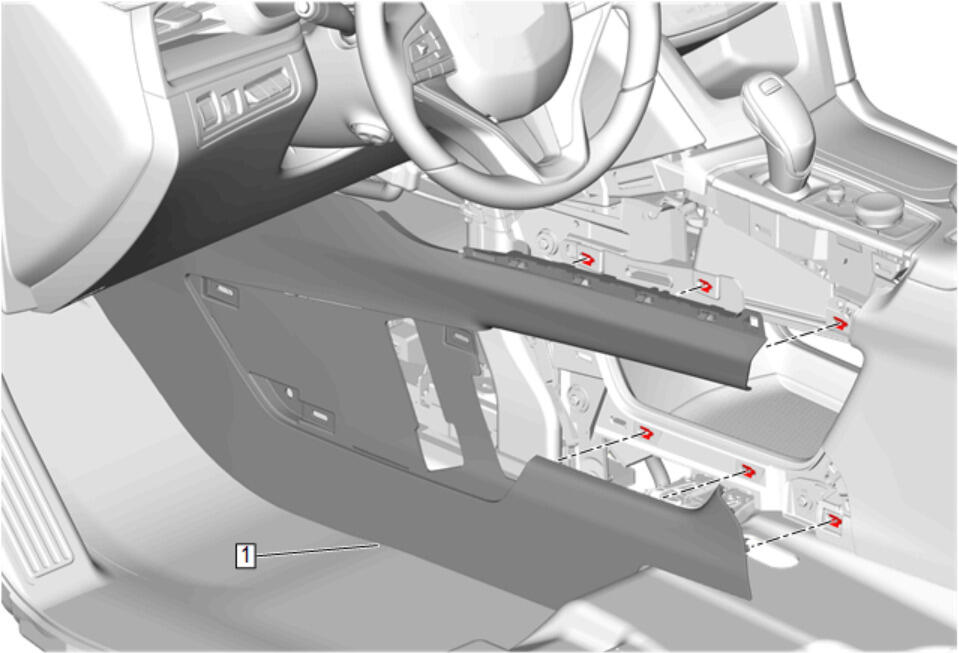

    GM5162610Courtesy of GENERAL MOTORS COMPANY
  5. Front Floor Console Extension Panel-Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side

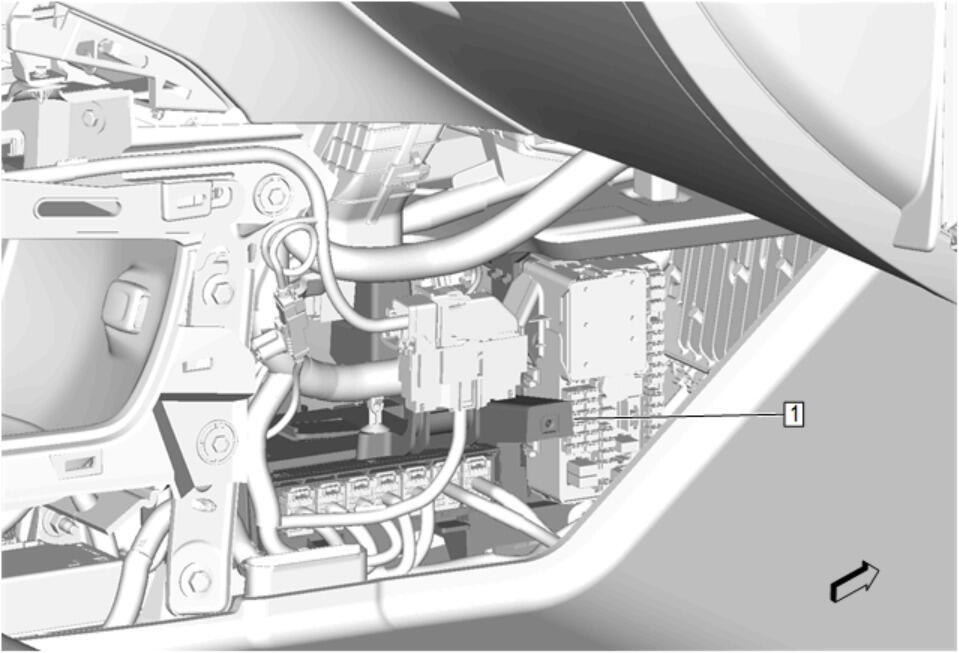

    GM5240020Courtesy of GENERAL MOTORS COMPANY
  6. Connect the harness to the body control module bracket (1).
  7. Install the floor rear air outlet duct adapter. Floor Rear Air Outlet Duct Replacement - Right Side

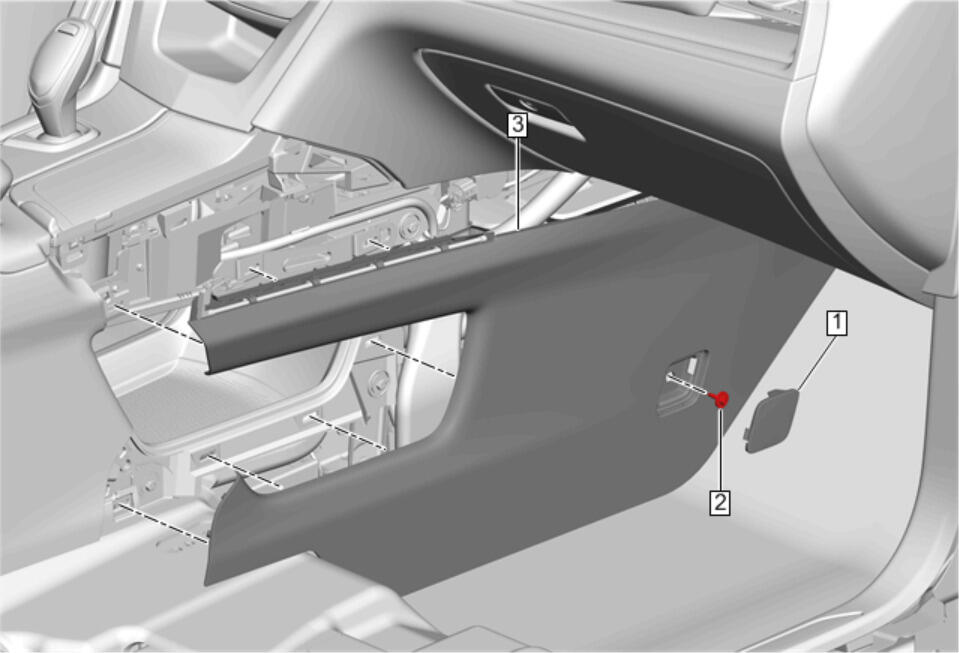

    GM4279414Courtesy of GENERAL MOTORS COMPANY
  8. Front Floor Console Extension Panel-Right Side (1) - Install - Front Floor Console Extension Panel Replacement - Right Side
