Intake Air Splash Shield Replacement

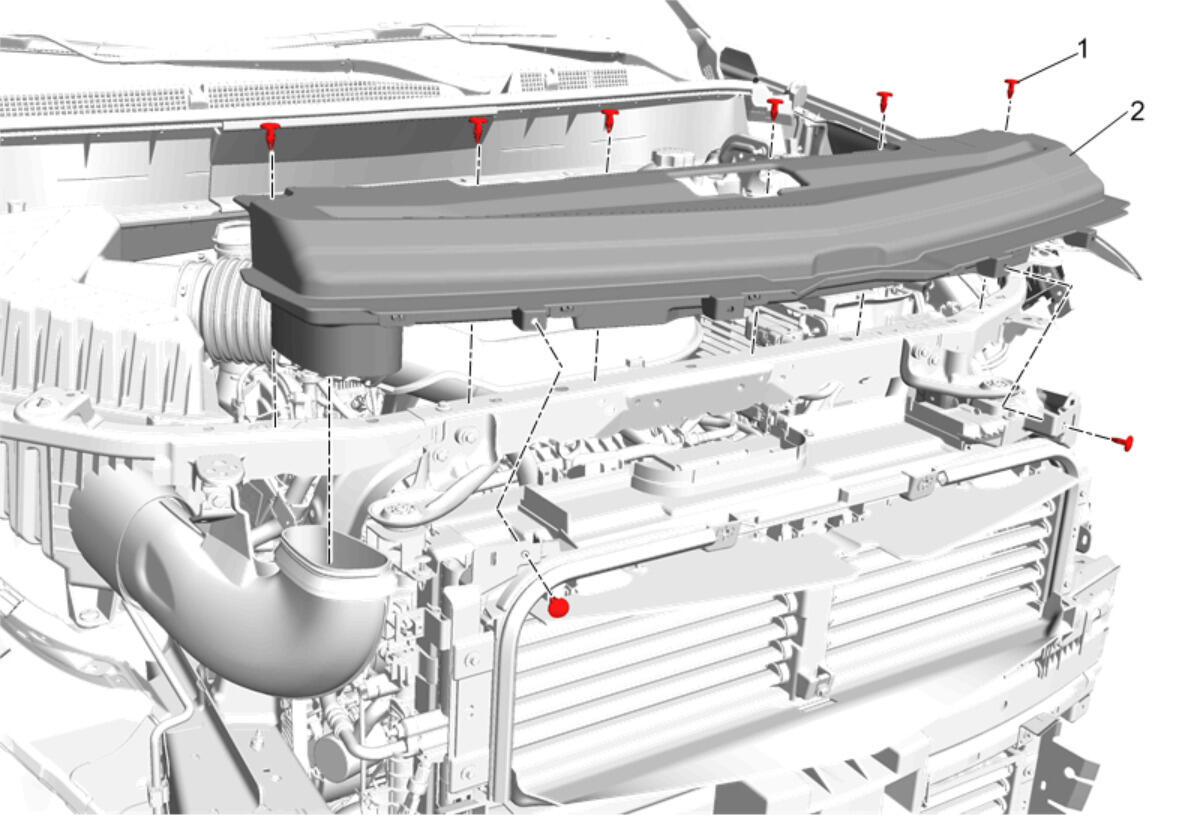

GM5214713Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Bumper Fascia Center Support Replacement
1 Intake Air Splash Shield Retainer [ 8x ]
CAUTION:

Refer to Fastener Caution .
2 Intake Air Splash Shield
