Installation Procedure

  1. GM5214679Courtesy of GENERAL MOTORS COMPANY

    Place a suitable adjustable jack under the fuel tank.

  2. Fuel Tank (1) - Install
  3. GM5214678Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Strap (2) - Install [ 2x ]

    4. CAUTION:

    Refer to Fastener Caution .

  4. Fuel Tank Strap Bolt (1) - Install [ 4x ] 22 N.m (16 lb ft)

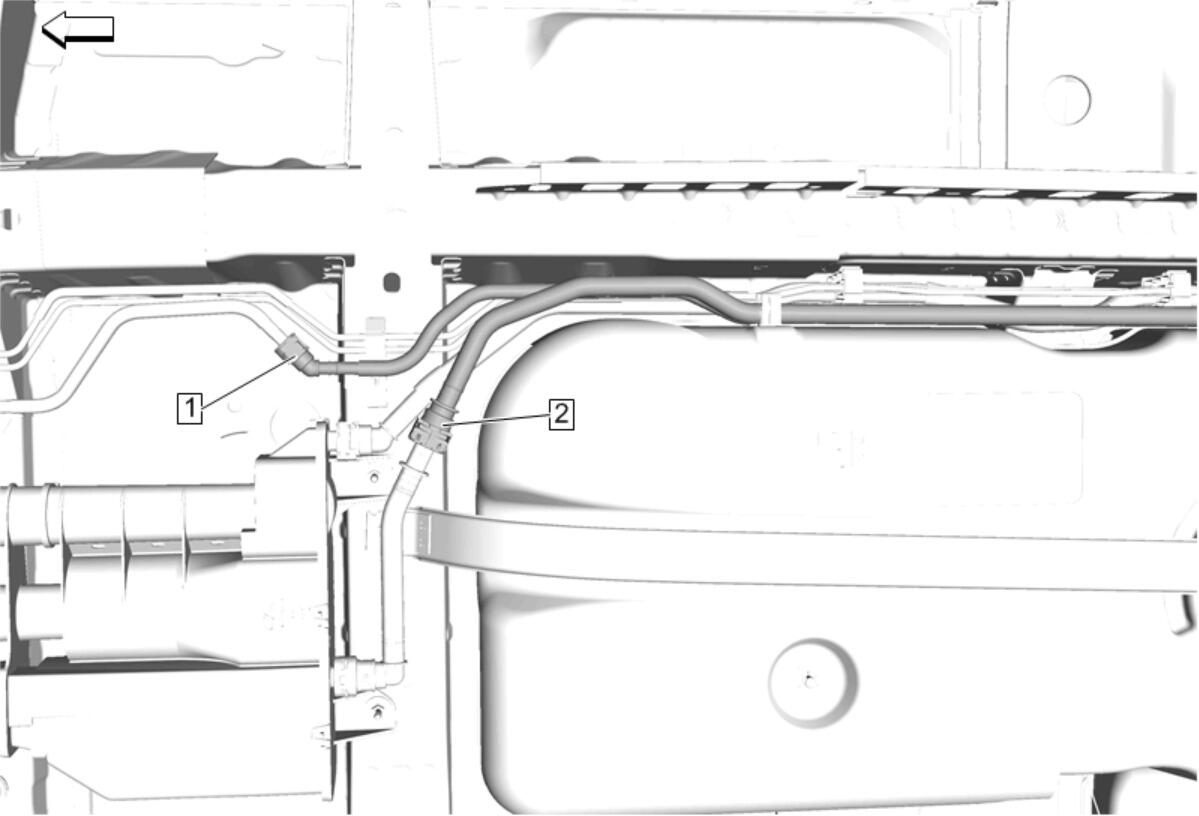

  5. GM5214677Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Vent Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service

  6. Fuel Pump Fuel Feed Hose (1) - Connect - Plastic Collar Quick Connect Fitting Service
  7. GM5214676Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Vent Hose (4) - Connect - Plastic Collar Quick Connect Fitting Service

  8. Fuel Tank Filler Hose (3) - Install
  9. Fuel Tank Filler Hose Clamp (2) - Tighten3.5 N.m (31 lb in)
  10. Wiring Harness (1) - Connect
  11. Driveline Torque Tube - Install - Driveline Torque Tube Replacement
  12. Refill the fuel tank.
  13. Inspect for fuel leaks.
