Installation Procedure
WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

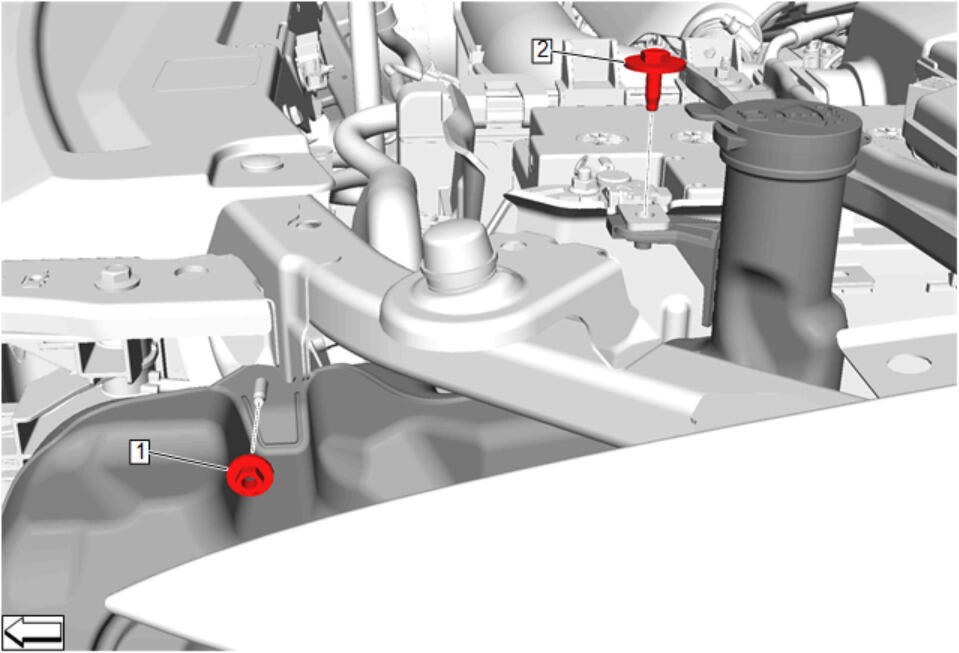

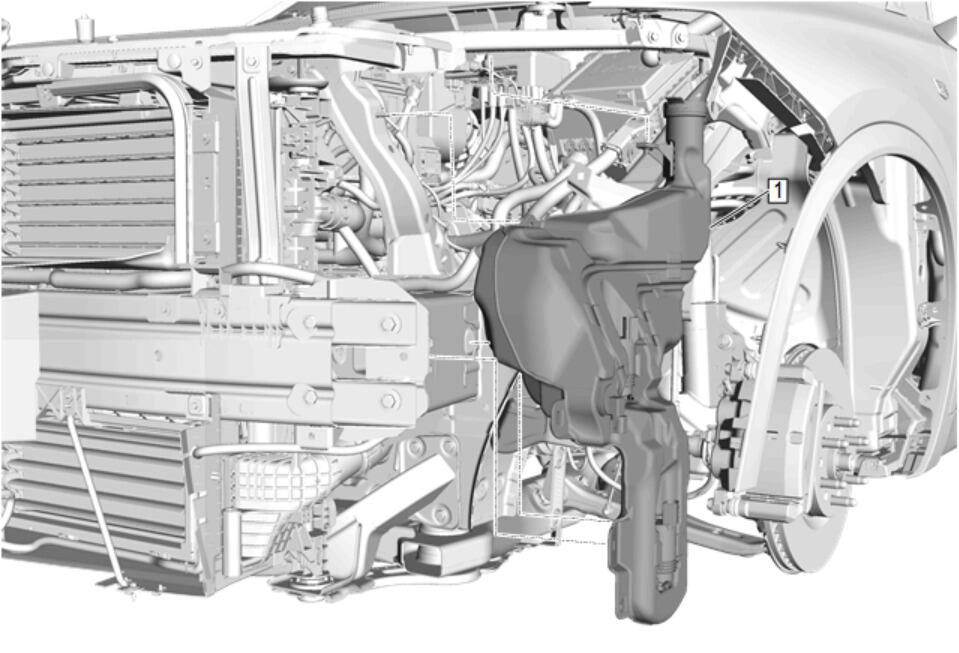

Windshield Washer Solvent Container (1) - Install
- CAUTION:
Refer to Fastener Caution .

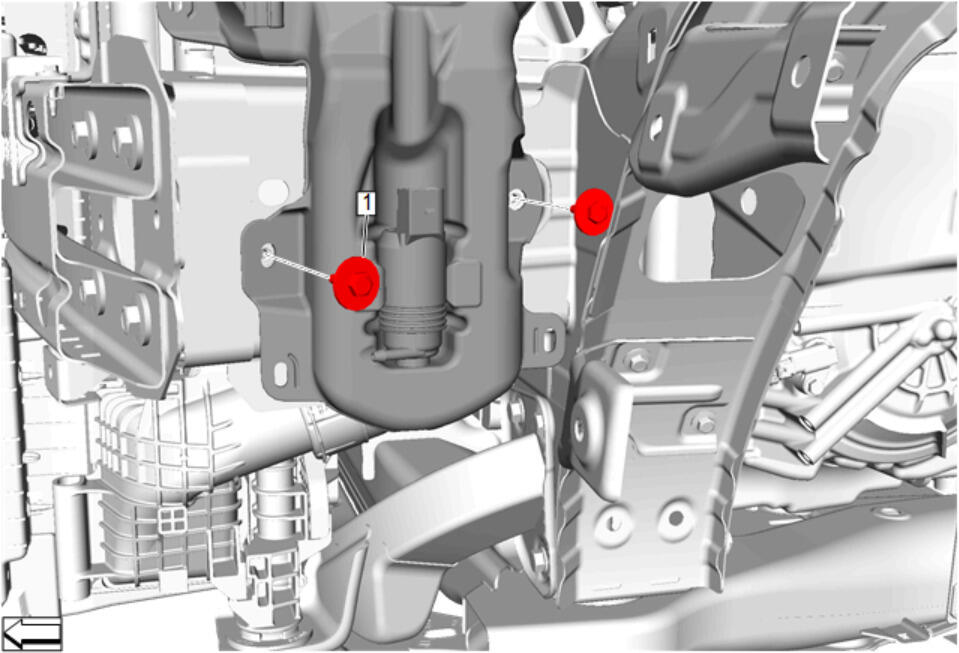

Windshield Washer Solvent Container Bolt (1) - Install and tighten [ 2x ] 9 N.m (80 lb in)
Windshield Washer Solvent Container Bolt (2) - Install and tighten 9 N.m (80 lb in)
- Windshield Washer Solvent Container Nut (1) - Install and tighten 9 N.m (80 lb in)

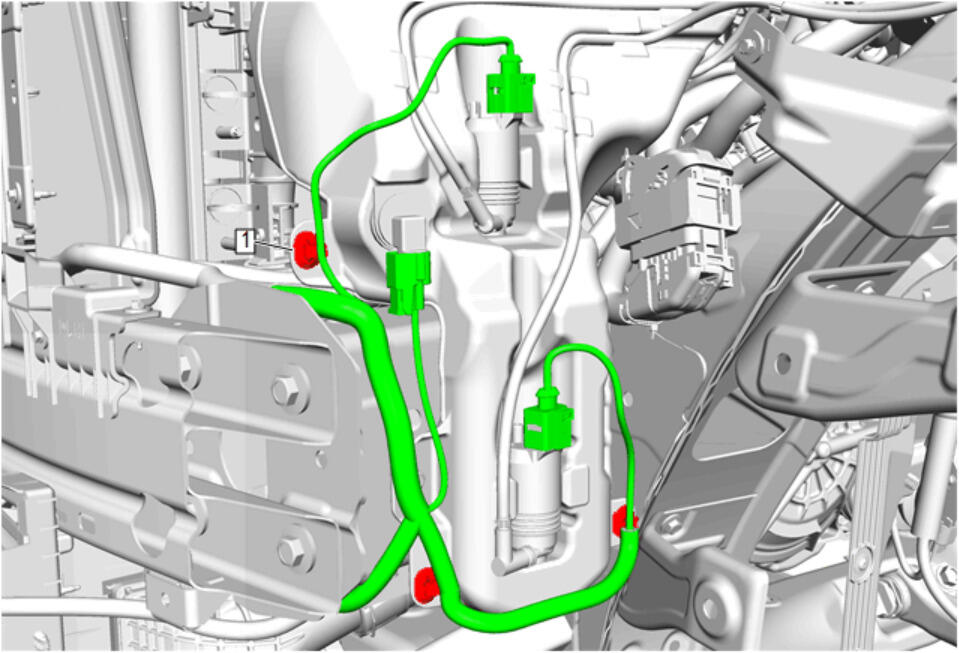

Position the wiring harness.
- Wiring Harness Retainer (1) - Install
- Connect the electrical connectors.

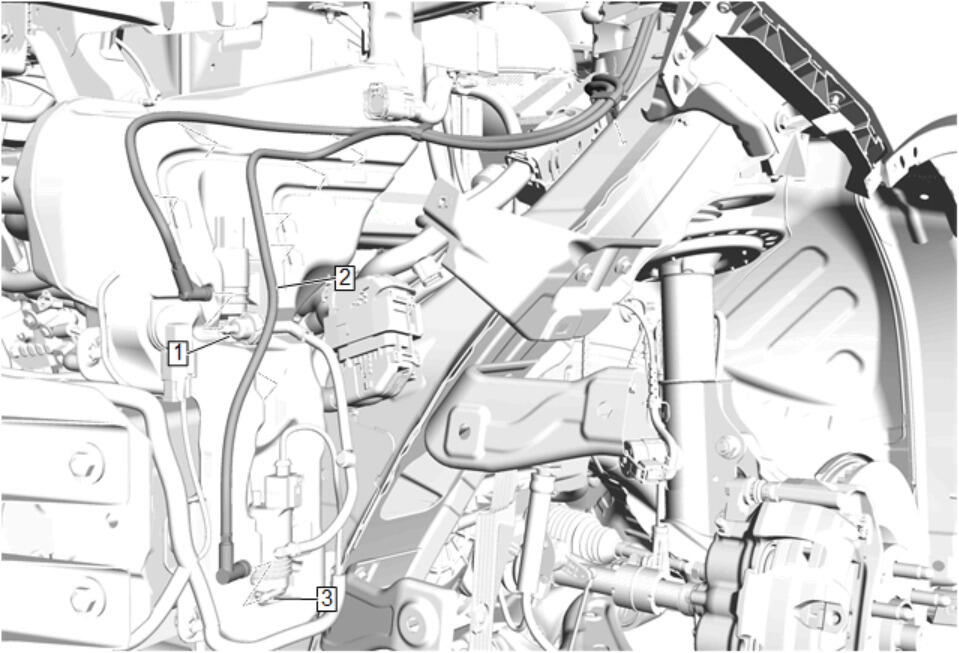

Rear Window Washer Pump Hose (2) @ Windshield Washer Solvent Container - Install - Rear Window Washer Pump Hose Replacement (Washer Pump to Washer Nozzle Hoses) Rear Window Washer Pump Hose Replacement (With UV3)
- Fill the windshield washer solvent container with windshield washer solvent and inspect for leaks.
- Install the left side headlamp. Front Headlamp Replacement
