Multimedia Receptacle Replacement

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

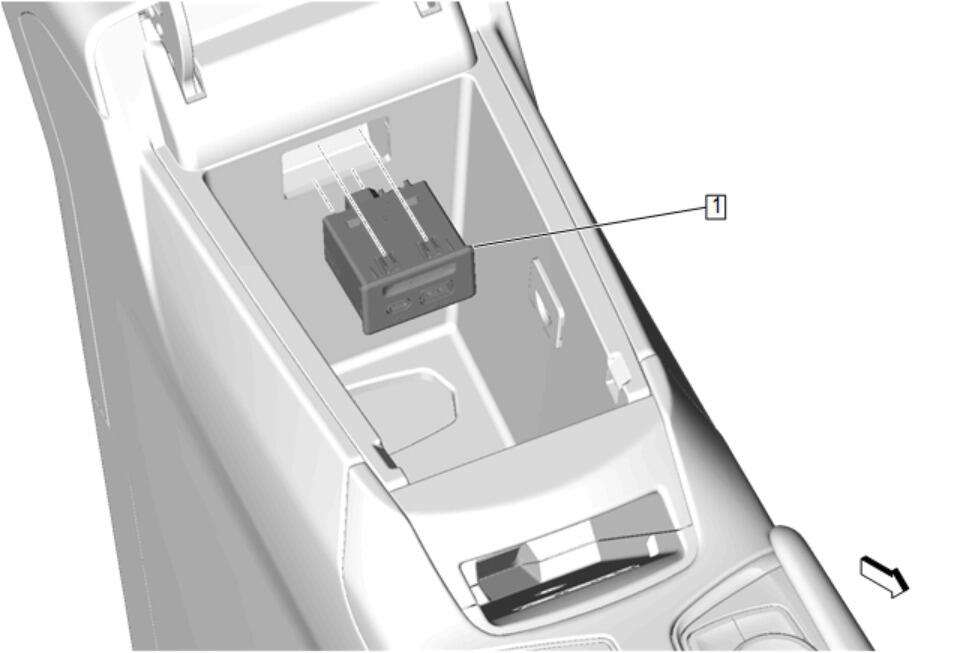

GM5205229Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Multimedia Receptacle

Procedure

  1. Use a flat bladed plastic tool to remove.
  2. Disconnect the electrical connector.
