Removal Procedure

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5169147Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Compartment (1) - Remove - Front Floor Console Compartment Replacement

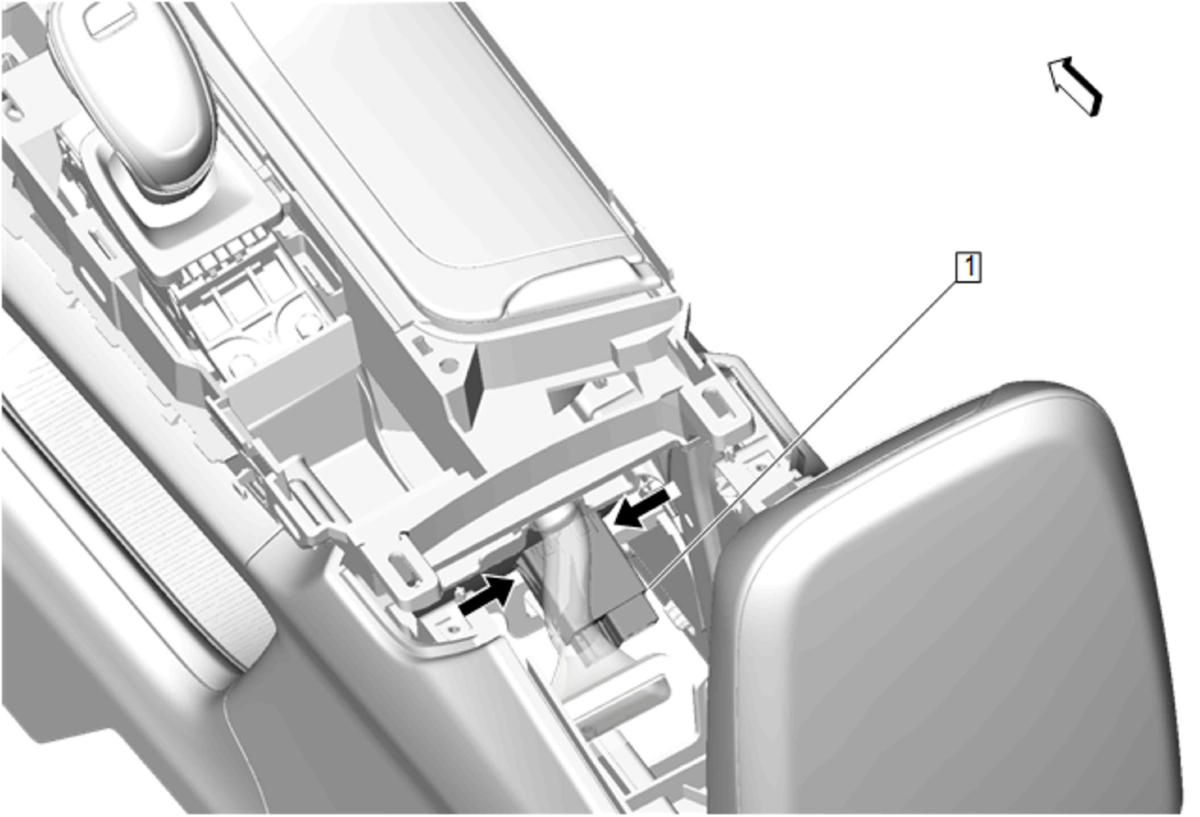

  2. GM5239311Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.

  3. Release the tabs on the card reader receptacle (1).
  4. GM5239315Courtesy of GENERAL MOTORS COMPANY

    Card Reader Receptacle (1) - Remove
