Removal Procedure

WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
GM5020720Courtesy of GENERAL MOTORS COMPANY
  1. Radio Control Assembly (2) - Remove - Radio Control Assembly Replacement

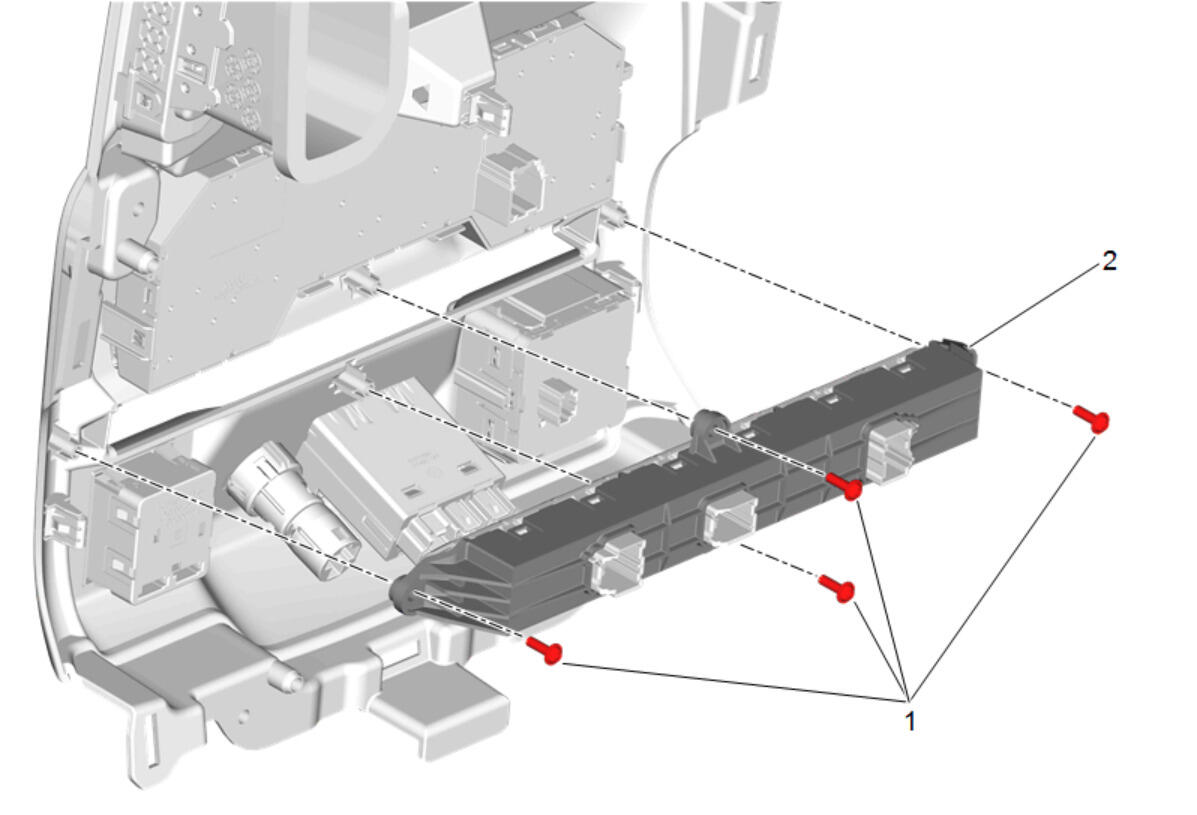

    GM5023291Courtesy of GENERAL MOTORS COMPANY
  2. Hazard Warning Switch Housing Bolt (1) - Remove [4x]
  3. Hazard Warning Switch Housing (2) - Remove

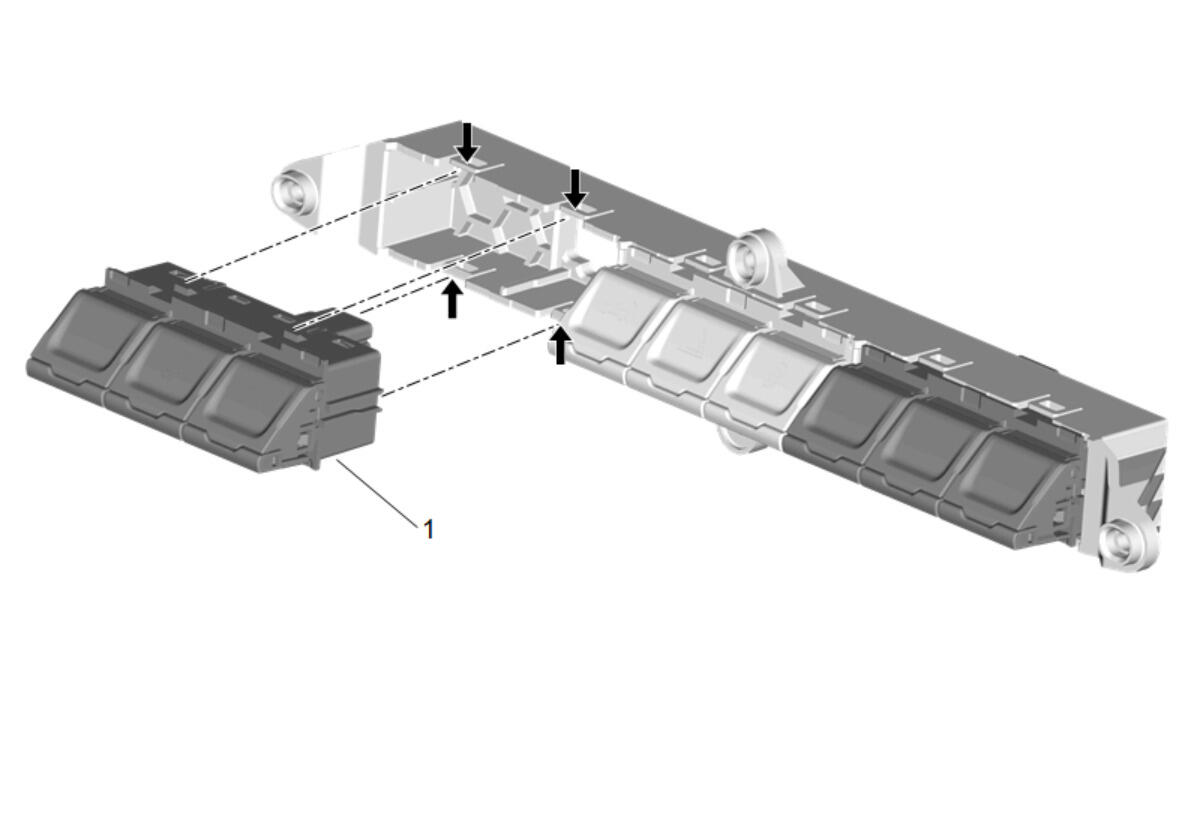

    GM5023296Courtesy of GENERAL MOTORS COMPANY
  4. Release the retaining tabs.
  5. Instrument Panel Center Accessory Function Switch (1) - Remove
