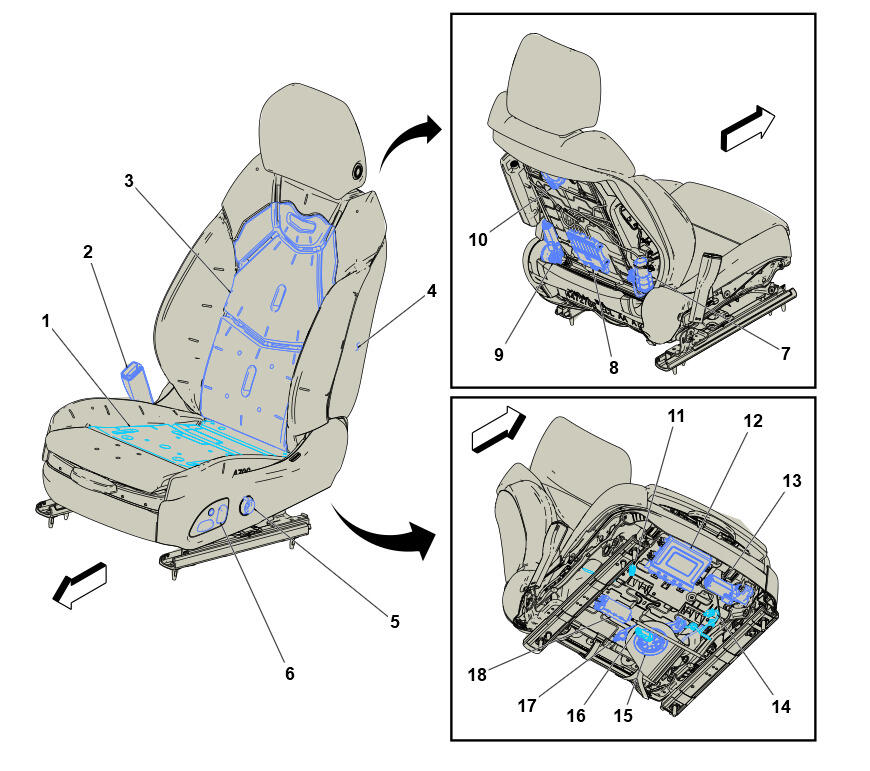

Driver Seat Components

Courtesy of GENERAL MOTORS COMPANY

NOTE: Callouts in the following chart represent components shown in graphic above.

Components
1. E14B Front Seat Cushion Heater - Driver (KA1) E14B Front Seat Cushion Heater - Driver (KA1)
2. B88D Seat Belt Switch - Driver B88D Seat Belt Switch - Driver
3. E14A Front Seat Back Heater - Driver (KA1) E14A Front Seat Back Heater - Driver (KA1)
4. F106D Front Seat Outboard Seat Back Airbag - Driver F106D Front Seat Outboard Seat Back Airbag - Driver
5. S65D Front Seat Lumbar Switch - Driver S65D Front Seat Lumbar Switch - Driver (-A45) , or S65D Front Seat Lumbar Switch - Driver (A45) .
6. S64D Front Seat Adjuster Switch - Driver S64D Front Seat Adjuster Switch - Driver (-A45)
7. G31D Front Seat Back Lumbar Pump - Driver G31D Front Seat Back Lumbar Pump - Driver (AVK)
8. K134D Front Seat Bolster Memory Module - Driver (A45) K134D Front Seat Bolster Memory Module - Driver (A45)
9. M56D Front Seat Recliner Actuator - Driver M56D Front Seat Recliner Actuator - Driver
10. M73A Front Seat Back Ventilation Blower - Driver M73A Front Seat Back Ventilation Blower - Driver (KU9)
11. P45RR Front Seat Lane Departure Warning Actuator - Right Rear (A45) P45RR Front Seat Lane Departure Warning Actuator - Right Rear
12. K40D Driver Seat Adjuster Memory Module K40D Driver Seat Adjuster Memory Module X1 (A45) , or K40D Driver Seat Adjuster Memory Module X2 (A45) , or K40D Driver Seat Adjuster Memory Module X3 (A45) .
13. M50D Front Seat Tilt Adjuster Actuator - Driver M50D Front Seat Tilt Adjuster Actuator - Driver
14. P45LR Front Seat Lane Departure Warning Actuator - Left Rear (A45) P45LR Front Seat Lane Departure Warning Actuator - Left Rear
15. M73D Front Seat Cushion Ventilation Blower - Driver M73D Front Seat Cushion Ventilation Blower - Driver (KU9)
16. E8VB Rear Floor Courtesy Lamp - Left E8VB Rear Floor Courtesy Lamp - Left (C70)
17. M55D Front Seat Vertical Adjuster Actuator - Driver M55D Front Seat Vertical Adjuster Actuator - Driver
18. M51D Front Seat Adjuster Actuator - Driver M51D Front Seat Adjuster Actuator - Driver (-A45)
