Home >> Cadillac >> 2021 >> CT5 V, RWD >> Repair and Diagnosis >> Body & Frame >> Body, Cab Control Systems >> Secondary And Configurable Customer Controls >> Schematic Wiring Diagrams >> Steering Wheel Secondary/Configurable Control Wiring Schematics >> Enhanced Drive Mode Control

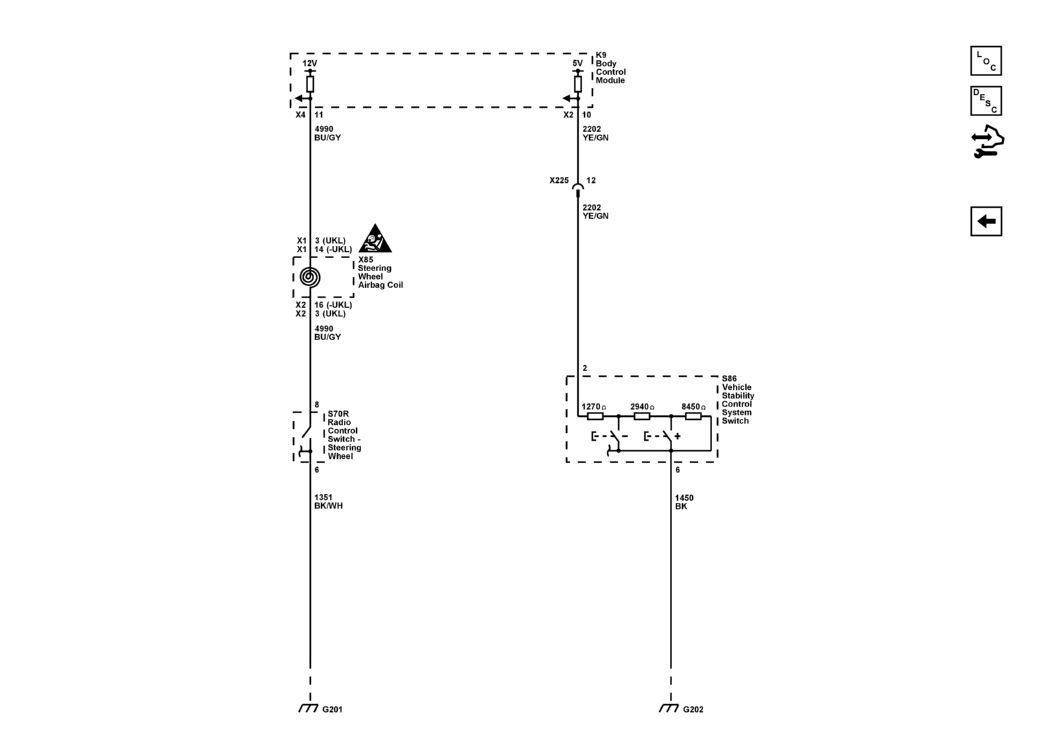

Enhanced Drive Mode Control

GM5517590Courtesy of GENERAL MOTORS COMPANY
