Throttle Inlet Absolute Pressure Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

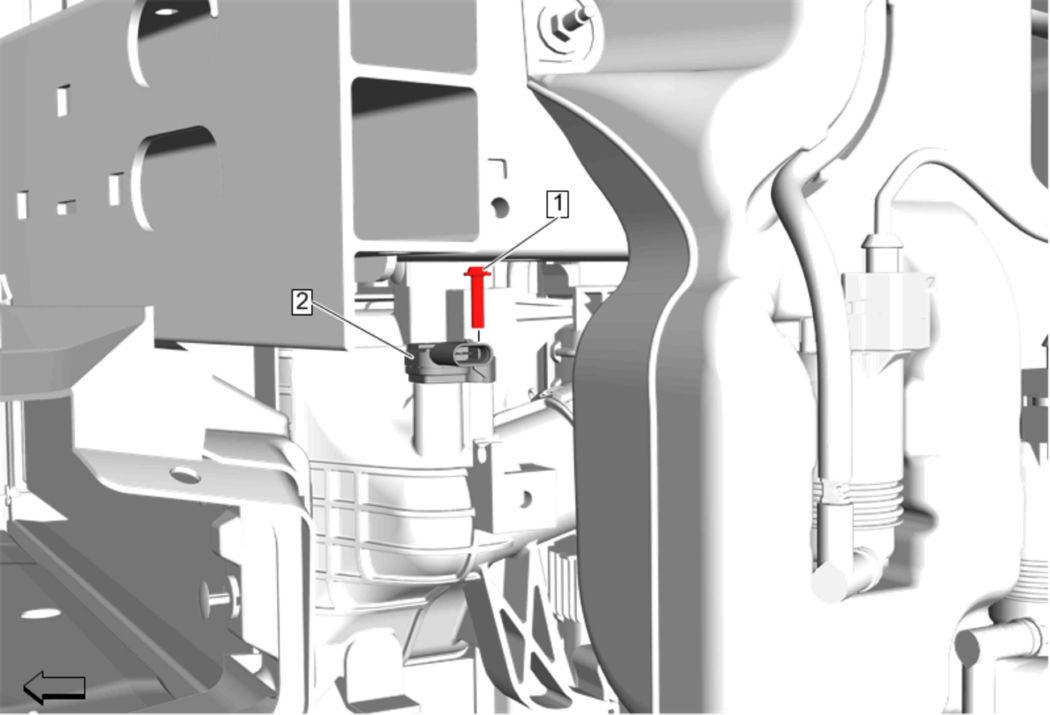

Callout	Component Name
Preliminary Procedure  Front Wheelhouse Liner Replacement
1	Throttle Inlet Absolute Pressure Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten  5 N.m (44 lb/in)
2	Throttle Inlet Absolute Pressure Sensor Procedure  Disconnect the electrical connector.
