Rocker Panel Components

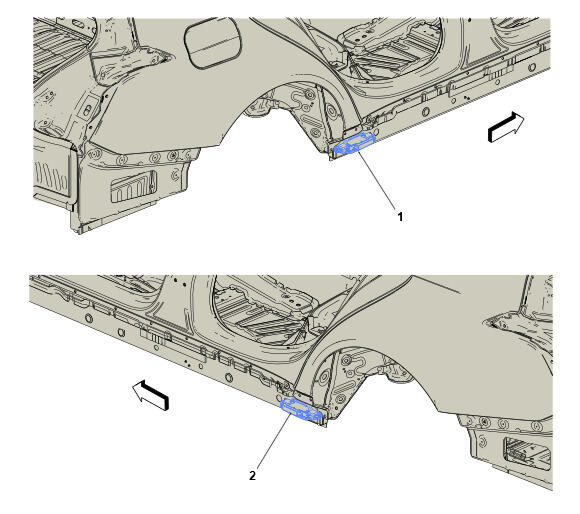

GM5393498Courtesy of GENERAL MOTORS COMPANY
Rocker Panel Components

Component Name Callout
T10R Low Frequency Body Side Antenna - Right T10R Low Frequency Body Side Antenna - Right 1
T10L Low Frequency Body Side Antenna - Left T10L Low Frequency Body Side Antenna - Left 2
