Installation Procedure

Clean the contact surfaces between the power transfer unit and the transmission.
Courtesy of GENERAL MOTORS COMPANY

Install a NEW power transfer unit face seal (1).
Support the power transfer unit with a suitable jack, and secure with suitable straps.
Raise and align the power transfer unit the correct position in relation to the transmission.
Courtesy of GENERAL MOTORS COMPANY

Install the power transfer unit (1) to the transmission.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Install the 3 power transfer unit bolts (1) and tighten to 100 N.m (74 lb ft).
Courtesy of GENERAL MOTORS COMPANY

Install the power transfer unit bolt (1) and tighten to 100 N.m (74 lb ft).
Courtesy of GENERAL MOTORS COMPANY

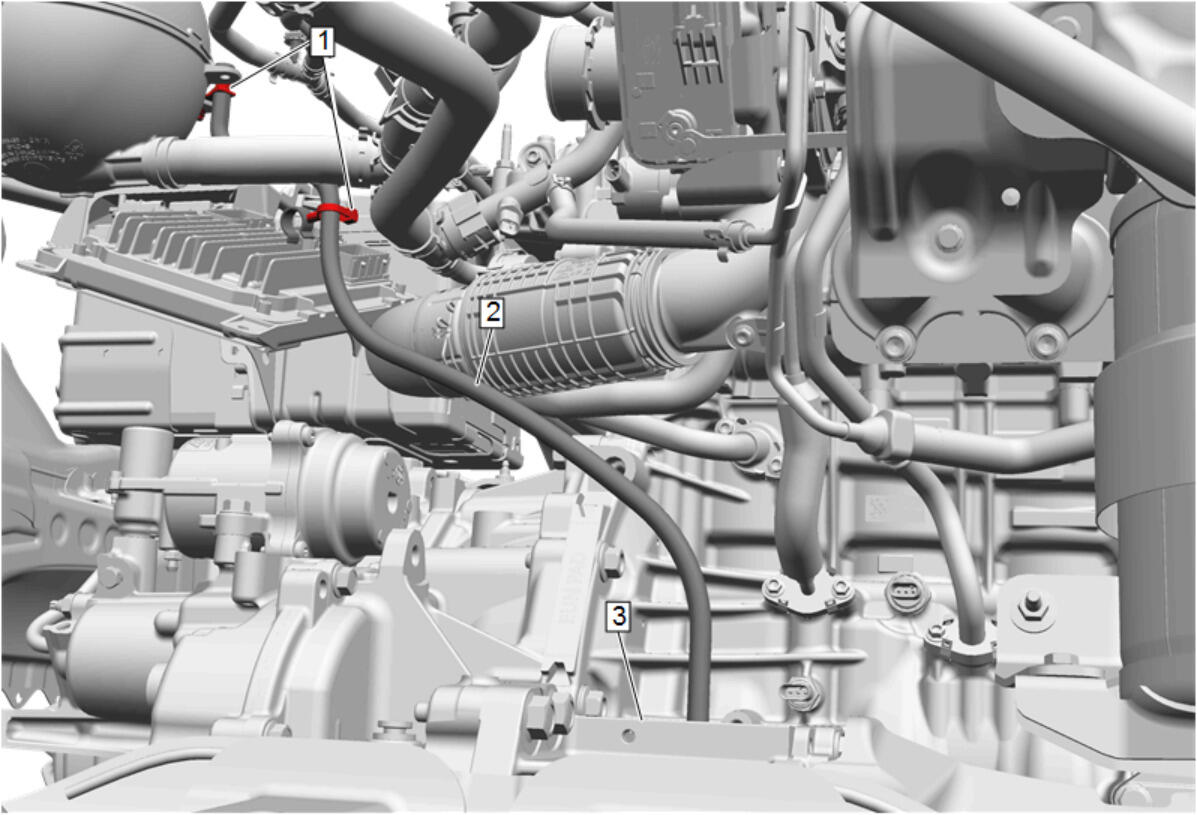

Connect the power transfer unit vent hose (2) to the power transfer unit case (3).
Install the power transfer unit bracket. Power Transfer Unit Bracket Replacement
Connect all electrical connectors and wiring harness retainers to the power transfer unit.
Install the power transfer unit heat shield. Power Transfer Unit Heat Shield Replacement
Install the front wheel drive intermediate shaft. Front Wheel Drive Intermediate Shaft Replacement
Install the propeller shaft. Propeller Shaft Replacement
