K73 Telematics Communication Interface Control Module (UI3)
 Courtesy of GENERAL MOTORS COMPANY
|

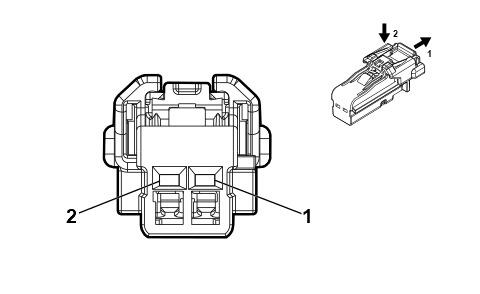

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 35026312
- Service Connector: 19352066
- Description: 2-Way F 1.2 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GY/L-GN |
7271 |
Emergency Response Accident Speaker Control (-) |
I |
- |
| 2 |
0.35 |
WH/VT |
7270 |
Emergency Response Accident Speaker Control (+) |
I |
- |
