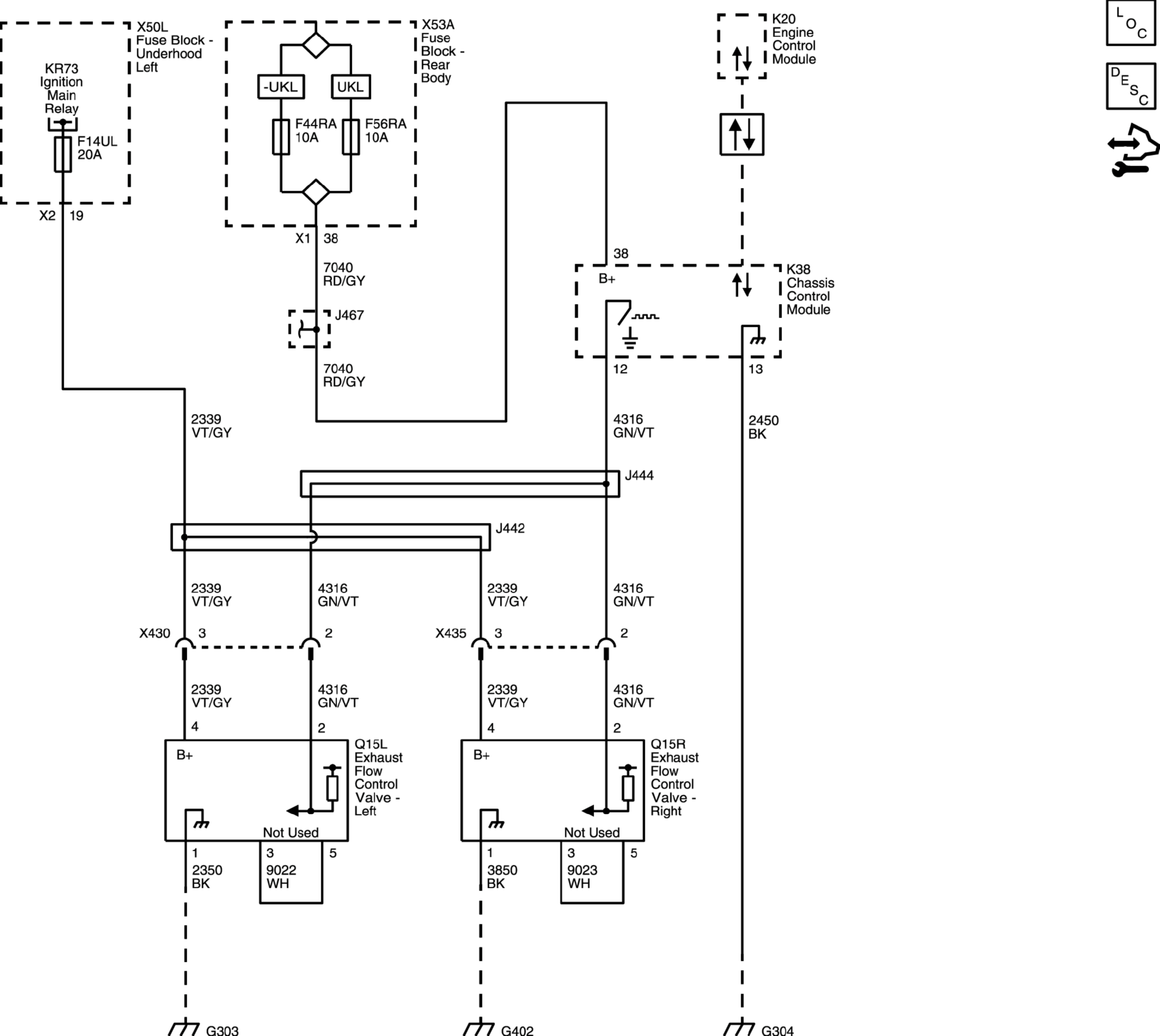

Home >> Cadillac >> 2020 >> CT6 V >> Repair and Diagnosis >> Engine Mechanical >> Exhaust System >> Schematic Engine Exhaust Flow Control (LTA) >> Exhaust System Schematics >> Engine Exhaust Flow Control (LTA)
